Plustek SmartOffice PS3180U

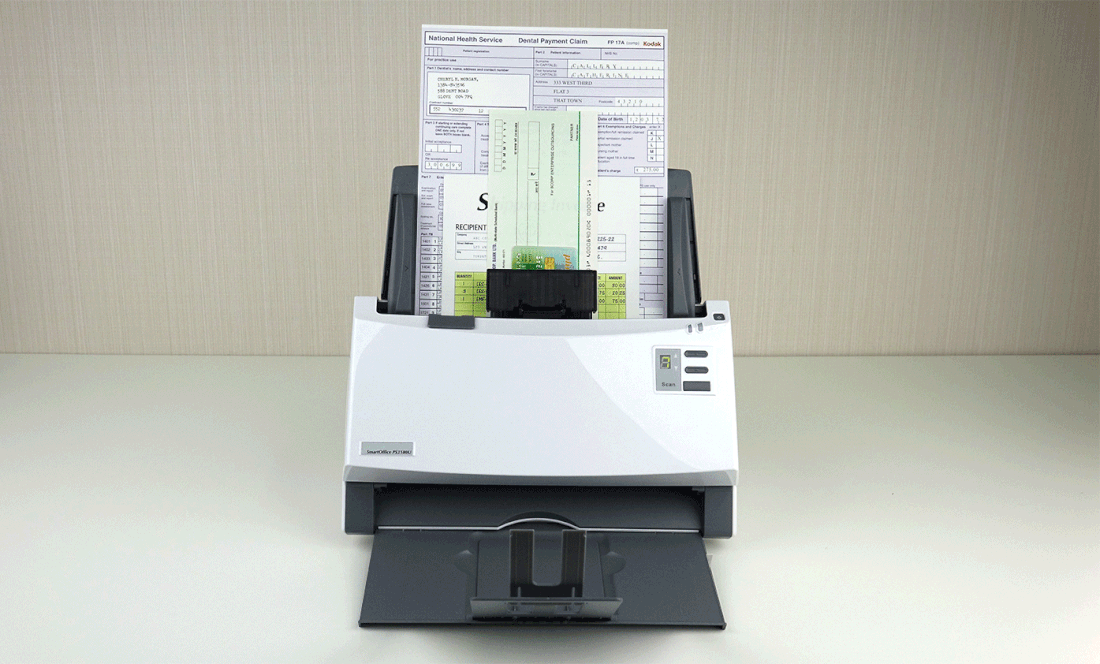

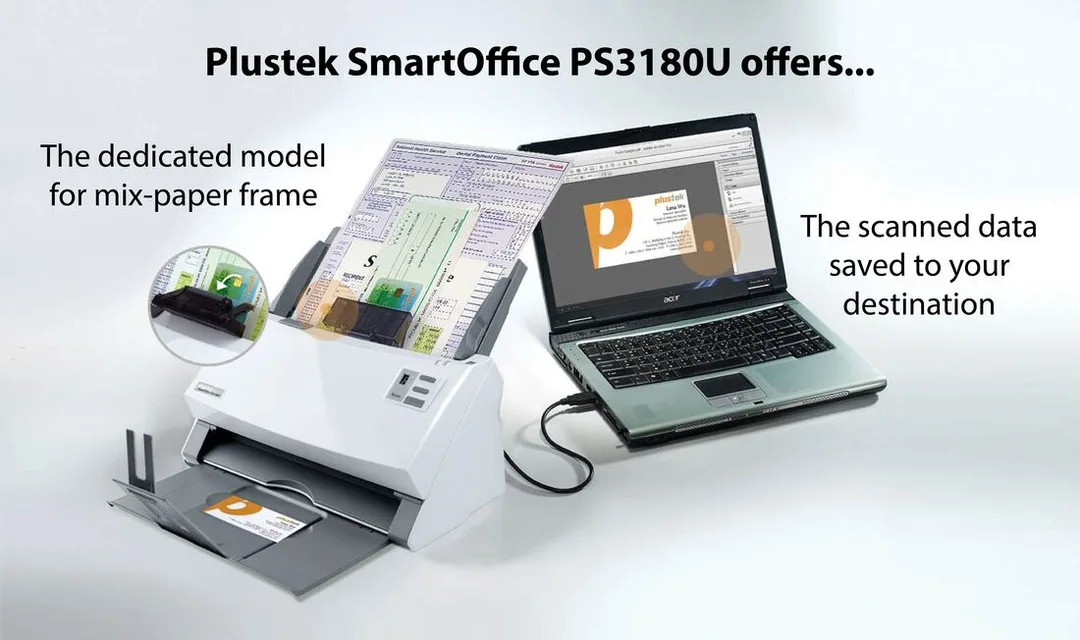

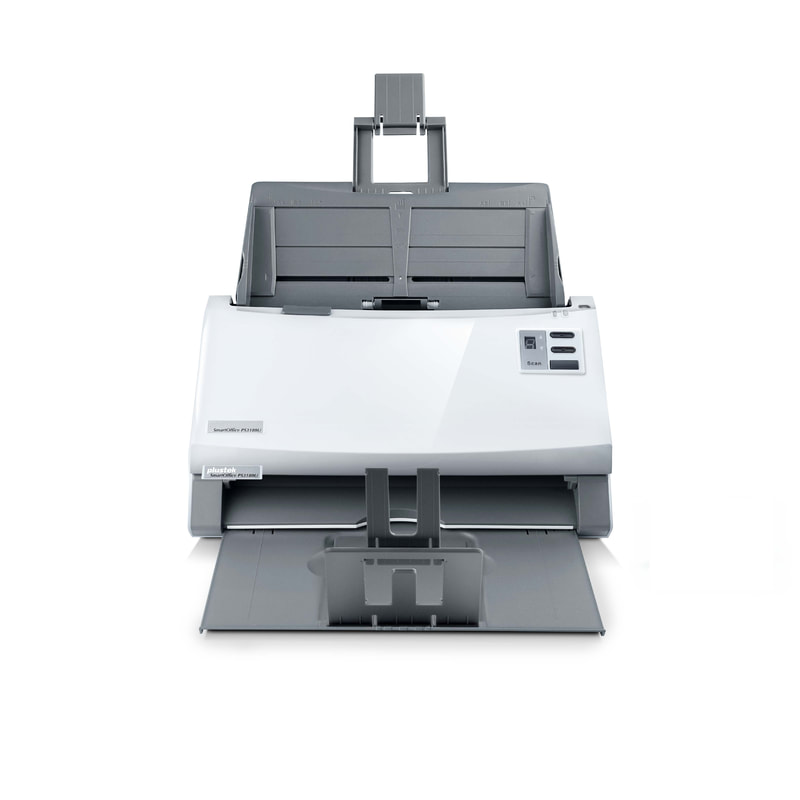

Office Scanners Plustek SmartOffice PS3180U is an 80-page per minute, duplex color document scanner that is not only fast, but also reliable and cost effective. The ultrasonic mis-feed detection ensures all of your important documents will be scanned correctly.
The Right Gadget for You
Increase Productivity
Increase Efficiency
One Button Action
Features
How Technology Accelerates the Healthcare Industry
Maintain medical reports and patient records with one single button
Eliminate the barriers to systems and departments
Adapts to your workflow
Patient Record/ Insurance Document/ Medical Report
PS3180U
Health Information Systems

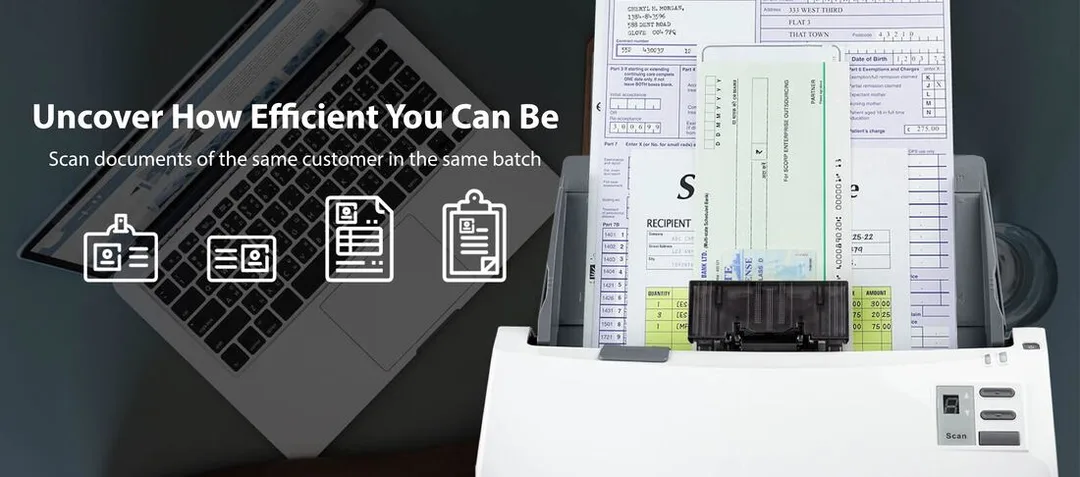

Place 100 Pages at Once without Further Adjustment
New Technology
New Evolution

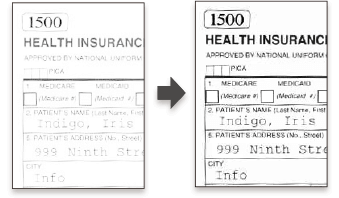

Better scanned image quality
even with batch scanning
New Evolution
Better scanned image quality
even with batch scanning
Unleash the Potential Things You Can Do with One Scanner

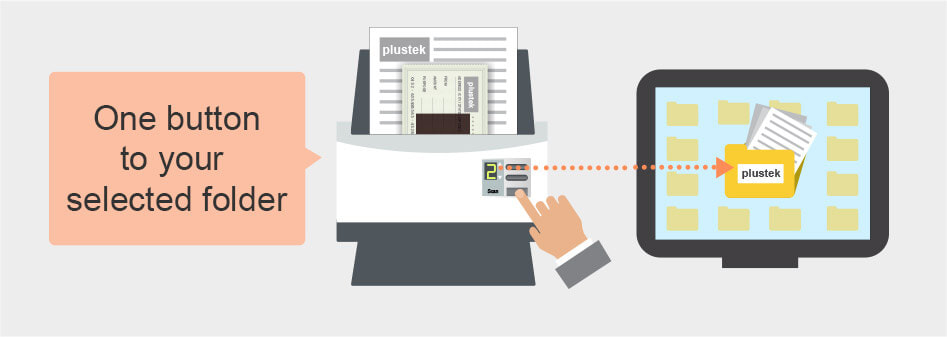

One Button, Infinite Possibilities

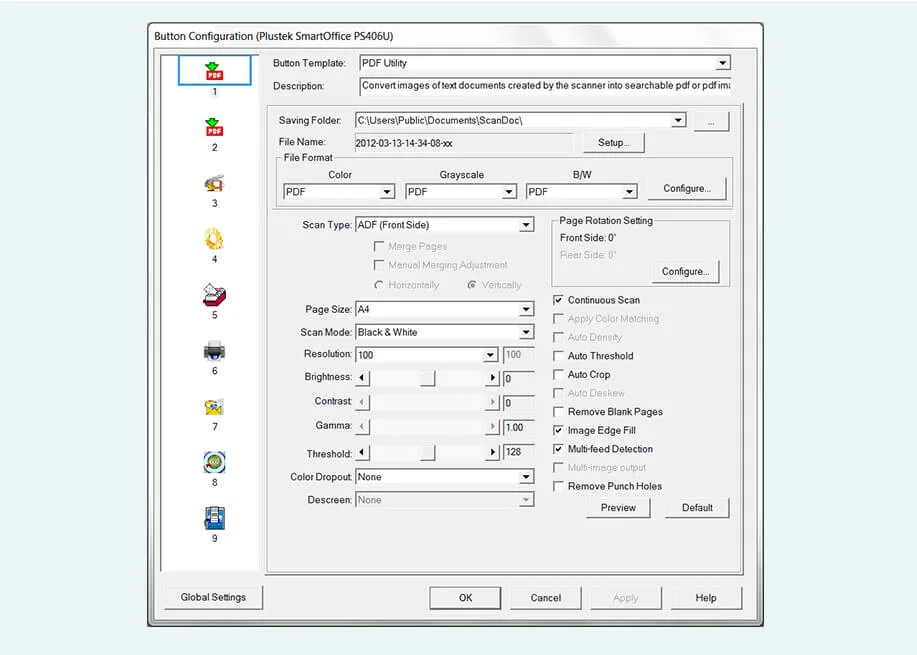

Plustek DocAction
- Button configuration software
Each button allows you to fully customize, not only the image processing tool but also the destination.
- Button configuration software
Each button allows you to fully customize, not only the image processing tool but also the destination.
You can save to and open with...

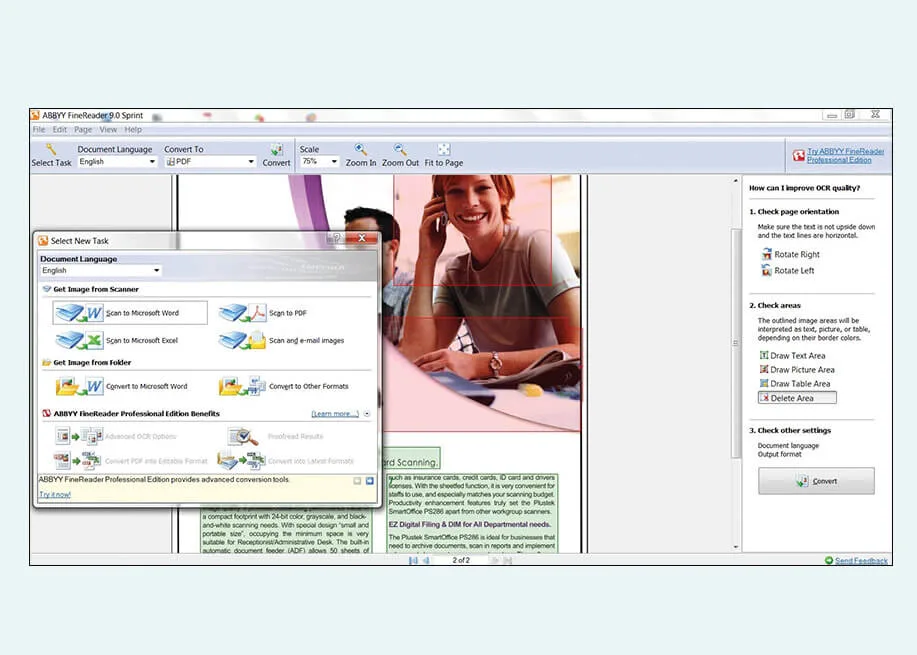

ABBYY FineReader Sprint
Bundled with ABBYY FineReader Sprint, you can make your work more flexible and useful
Bundled with ABBYY FineReader Sprint, you can make your work more flexible and useful
Specification
Image Sensor CIS x 2
Light Source LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit
ADF Capacity
1. 100 sheets (A4/ Letter, 80 g/㎡ or 20 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed (ADF)
80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)

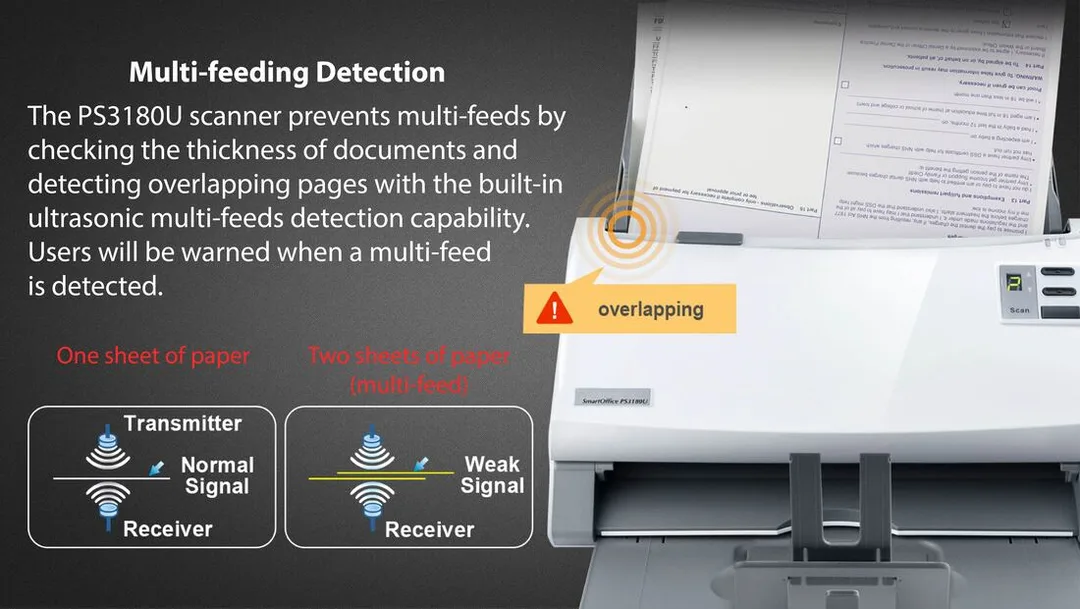

Multi-feed Detection With ultrasonic technology
Daily Duty Scan (Sheets) 8,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A
Interface USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight 2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H) 318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
Protocol TWAIN Compliant
OS Windows XP / Vista / 7 / 8 / 10
Hardware Requirements PentiumR IV 2.4 GHz processor
DVD-ROM Driver
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
2GB free HDD space (3GB or larger recommended)
Bundled Software ABBYY FineReader
Plustek DocAction
Plustek DocTWAIN
Light Source LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit
ADF Capacity
1. 100 sheets (A4/ Letter, 80 g/㎡ or 20 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed (ADF)
80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)
Multi-feed Detection With ultrasonic technology
Daily Duty Scan (Sheets) 8,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A
Interface USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight 2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H) 318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
Protocol TWAIN Compliant
OS Windows XP / Vista / 7 / 8 / 10
Hardware Requirements PentiumR IV 2.4 GHz processor
DVD-ROM Driver
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
2GB free HDD space (3GB or larger recommended)
Bundled Software ABBYY FineReader
Plustek DocAction
Plustek DocTWAIN
Download brochure here!
