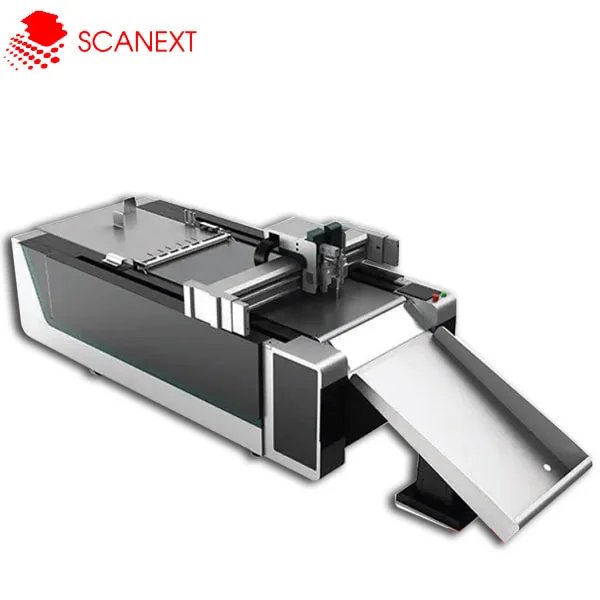

Auto Feed A1 Flatbed Cutter
Scanext 1070PLUS
Features
- Automatic positioning system with a high-definition CCD camera for precise cutting
- Ability to perform drag cutting, kiss-cutting, creasing, and drawing in one pass
- User-friendly control system
- Infrared anti-collision technology:
- High-quality synchronous belt:
- Imported felt:
- Specification
- Brochure
- Video
Model: Scanext 1070 Plus
- Working area: 1000*700mm
- Multi-function head: Oscillating knife cutting tool, drag knife cutting tool, crease wheel,cut-through-knife,marking pen and CCD camera
- Tool configuration: Multiple cutting knives
- Cutting speed: 200-1300mm/s(according to different cutting materials)
- Repeated accuracy: ≤0.1mm
- Transmission system: Imported（Digital servo motor, linear guide, belt）
- Safety device: Using infrared sensors, responsive, safe and reliable.
- Drive system: Imported servo motor, linear guid, synchronous belt, screw
- Cutting material: PVC board, PP board and white card paper, cardboards, paper, PVC, film, sticker, etc.
- Instruction system: HP- GL Compatible format
- Rated power: 2.2KW
- Rated voltage: 220V±10%/50HZ
- Cutting thickness: ≤10mm(According to different material)
- Material fixed way: Vacuum adsorption
- File form: PLT、DXF、HP/GL
Find Out More About Scanext 1070PLUS
Auto Feed A1 Flatbed Cutter
Scanext Service & Warranty:
1) Three year warranty include free on-site inspection and maintenance of main components: electronic boards, CCD camera, auto knife inspection (AKI) system.
2) One year warranty for all kind of knife holder include milling, compressor, vacuum pump
3) No warranty on wearable parts & consumables : conveyor belt, knife blade, workbench covers.
1) Three year warranty include free on-site inspection and maintenance of main components: electronic boards, CCD camera, auto knife inspection (AKI) system.
2) One year warranty for all kind of knife holder include milling, compressor, vacuum pump
3) No warranty on wearable parts & consumables : conveyor belt, knife blade, workbench covers.

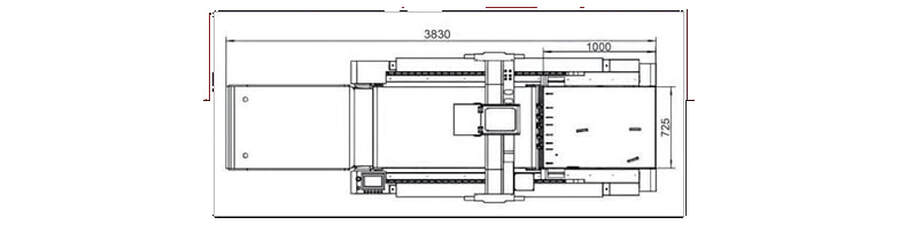

Dimensional Drawing
Max Cutting Width : 700mm
Max Cutting Lenght : 1000mm
Max Cutting Width : 700mm
Max Cutting Lenght : 1000mm
Optional Tools And Application
Oscillating Knife Tool
Honeycomb Board
Corrugated Board
Gray Cardboard
KT Board
Drag Knife Tool
Card Paper
Coated Paper
PET Film
Corrugated Cardboard
V-Cut Knife Tool
Honeycomb Board
Gray Cardboard
Acoustic Panels
Soft Board
Creasing Wheel Tool
Card Paper
Coated Paper
Corrugated Board

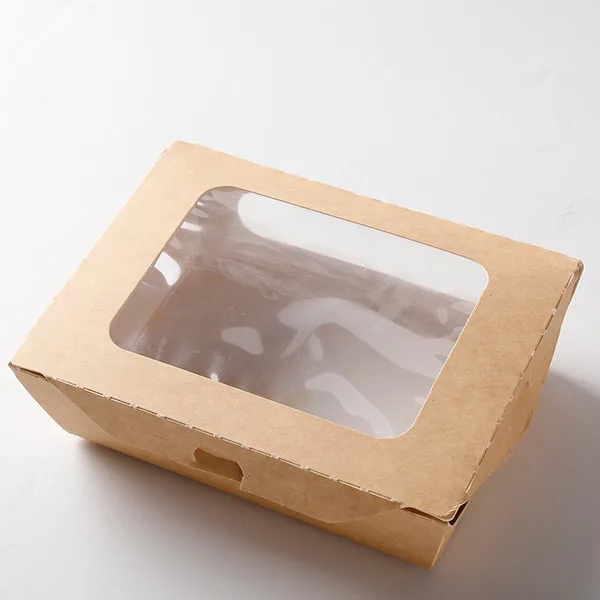

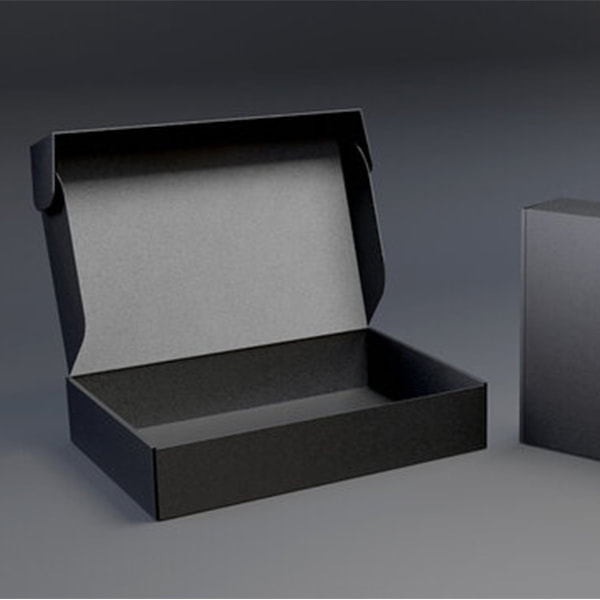

Packing Box
Kiss-Cut Tool
Car Sticker
Sticker
Labels
Self-Adhesive Vinyl
PRODUCT DESCRIPTION
Scanext CNC automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform
It can quickly and precisely make through cutting, creasing and marking. Besides, the machine has CCD camera, which highly improve cutting accuracy, it is a cost-effective smart equipment that meets all your creative processing.
Scanext CNC cutting plotter is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solution for printing
Scanext CNC automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform
It can quickly and precisely make through cutting, creasing and marking. Besides, the machine has CCD camera, which highly improve cutting accuracy, it is a cost-effective smart equipment that meets all your creative processing.
Scanext CNC cutting plotter is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solution for printing
