Auto Feed A0 Flatbed Cutter

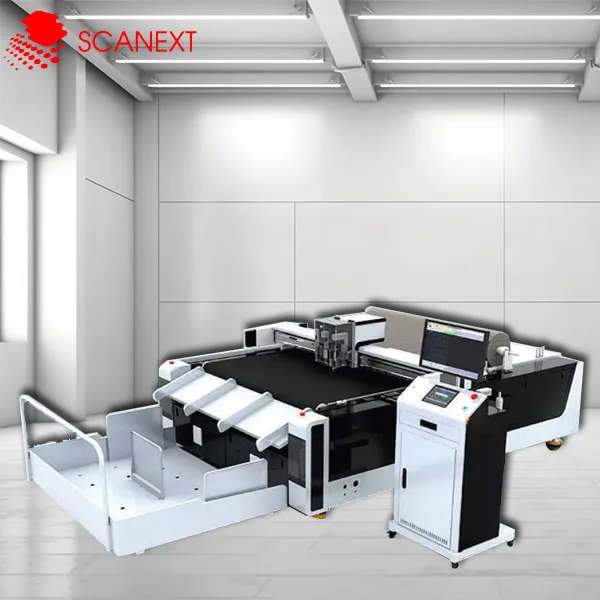

Flatbed Die Cut Machine Scanext 1612 PLUS


Overview

Cutting plotters are machines that use a motorized blade to cut out designs from various materials.
Based on the information available online, the Scanext 1612PLUS can cut a variety of materials including:
  • Fabric
  • Plastics
  • Composite materials
  • Paper and cardboard



  • Specification
  • Brochure
  • Video
SCANEXT-1612PLUS TECHNICAL PARAMETERS
Product Size 3100*2284*1250MM Working Range 1600*1200MM
Weight 1545KG Vacuum Pump 2.2KW
Safety Device Using infrared sensors, responsive, safe and reliable. File form PDF, PLT, DXF, HP/GL
Cutting Speed 200-1300MM/S (depending on material density.) Translational Velocity 800-1300MM/S
Cutting Thickness 20MM (according to different materials). Repeated Accuracy 0.1MM
Transmission System Imported (Digital servo motor, linear guide, belt) Instruction System HP-GL compatible format
Voltage 220V/380V ± 10%/50HZ Tool configuration Multiple culting knives
Multifunctional Head Oscillating knife cutting tool, drag knife cutting tool, V cut, crease wheel, cut-through-knife, marking pen and CCD camera
Cutting Material PVC board, PP board and white card paper, cardboards, paper, PVC, flm, sticker, etc. The maximum cutting depth is up to 20mm, depending on material density.
Find Out More About Scanext 1612PLUS
Auto Feed A0 Flatbed Cutter Vol.1
Auto Feed A0 Flatbed Cutter Vol.2
Auto Feed A0 Flatbed Cutter  Vol.3
​Scanext Service & Warranty:
1)  Three year warranty include free on-site inspection and maintenance of main components: electronic boards, CCD camera, auto knife inspection (AKI) system.
2) One year warranty for all kind of knife holder include milling, compressor, vacuum pump
3) No warranty on wearable parts & consumables : conveyor belt, knife blade, workbench covers.

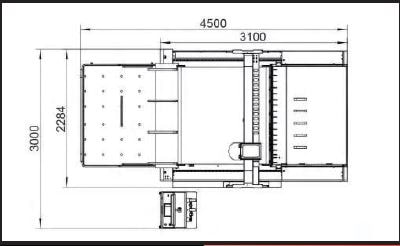

Dimensional Drawing
Max Cutting Width : 1200mm
Max Cutting Lenght : 1600mm
Optional Tools And Application
Oscillating Tool

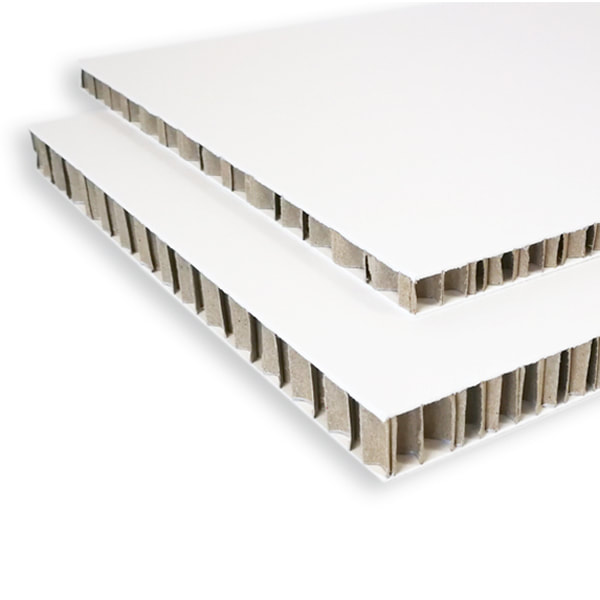

Honeycomb Board

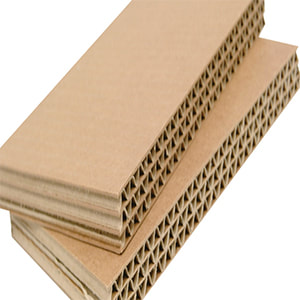

Corrugated Board


Gray Cardboard

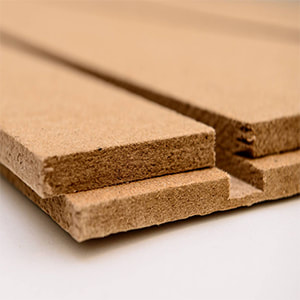

Soft Board

Drag Knife Tool

Card Paper


Coated Paper


Corrugated Cardboard


PET Film

Creasing Tool

Card Paper


Coated Paper


Corrugated Board

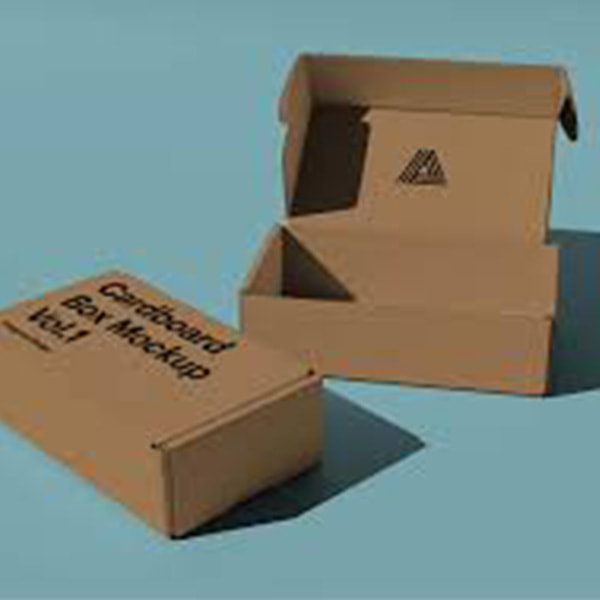

Packing box

V-CUT Tool

Honeycomb board

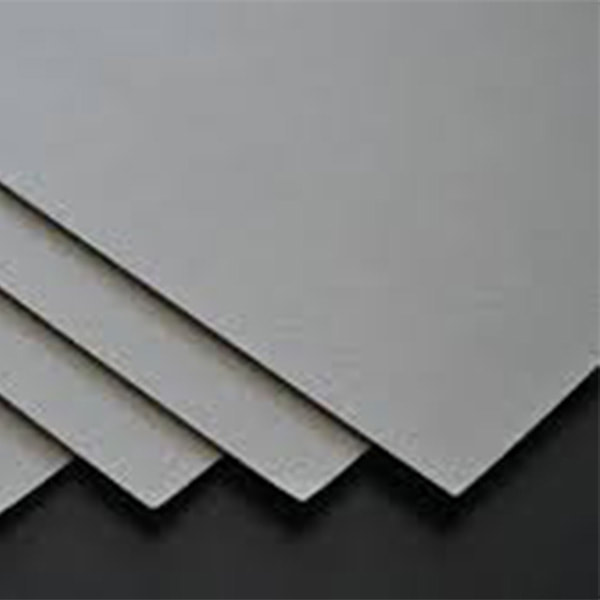

Gray Cardboard


Acoustic Panel


Soft Board

Kiss-Cut Tool

Car Sticker

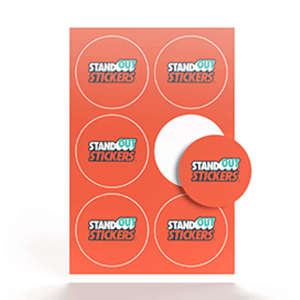

Sticker


Label

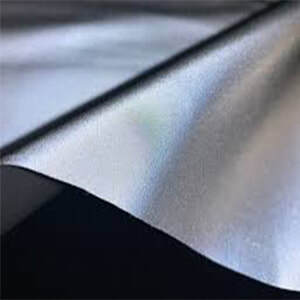

Self-adhesive Vinyl

PRODUCT DESCRIPTION
Scanext CNC automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform

​It can quickly and precisely make through cutting, creasing and marking. Besides, the machine has CCD camera, which highly improve cutting accuracy, it is a cost-effective smart equipment that meets all your creative processing.

Scanext CNC cutting plotter is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solution for printing
