Ultra Clear Sticker With Hot Stamping DTF Sticker Label Printer
A1 Size Crystal UV DTF Sticker Printer Scanext UV DTF 7124A
DTF Sticker Label Application: Metal, glass, ceramic, wood, leather, plastic, pvc, rigid material.
A1 Size Crystal UV DTF Sticker Printer Scanext 7124A
Features:
Specification:
8 Pass: 3.8 sqm/h
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
Features:
- Consistent Color Printing for Repeat Jobs
- 12 Colors UV Ink
- Print Width is 700mm
- Fully Automatic Print, Roll Feeder, Auto Collect System and Laminate Molding
- Printing speed is 3.8 meter sqm/h
- No drying process required
- Good adhesion on curved or rugged surface
- UV direct print effect
- No heating process required
- Ultra Clear Sticker With Gold Stamping ( Scanext UV DTF 7124A )
- Gold Stamping Crystal UV DTF Sticker is done by Scanext UV DTF 7124A
Specification:
- Max Printing Width: 700mm / 27.3 inch
- No of Colour: 11 Colour: C, M, Y, K, LK, LLK, LC, LM, V1, V2, W
- Ink Type: UV Ink
- Printing Media: Release Paper, Release Film, AB Film
- Printing Speed:
8 Pass: 3.8 sqm/h
- Printing Resolution:
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
- No of Printhead: 4 units

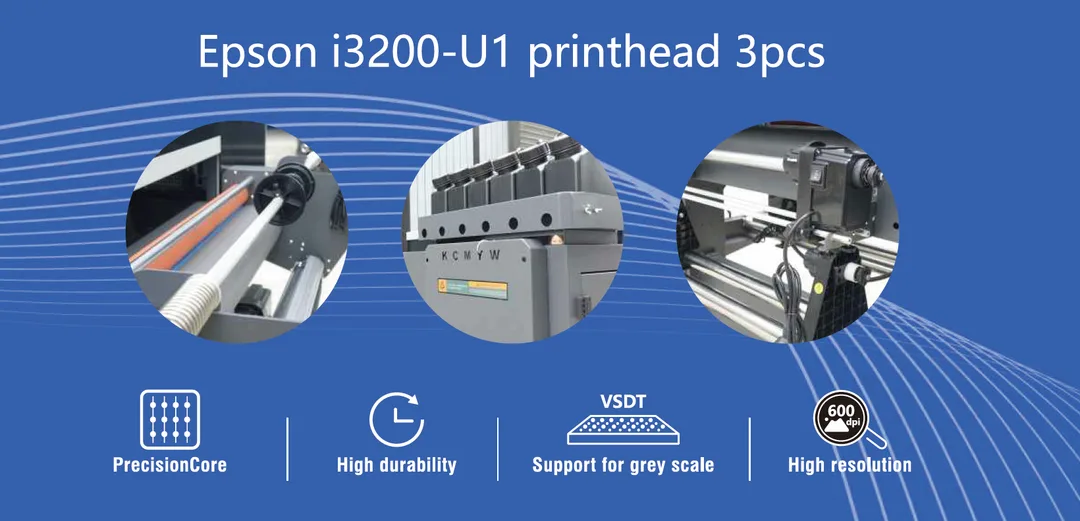

- Print Heads Model: Epson I3200(8)-U1HD, Epson I3200(4)-U1, Epson I1600-U1x2

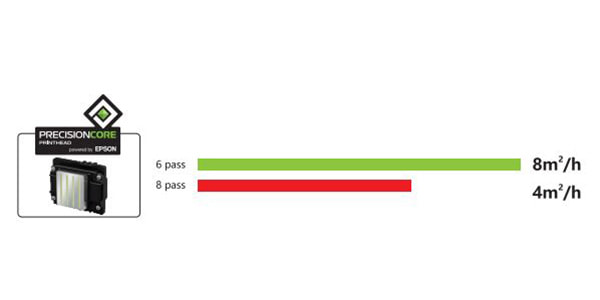

Print Speed
Crystal UV DTF Sticker Printer Epson Prinhead

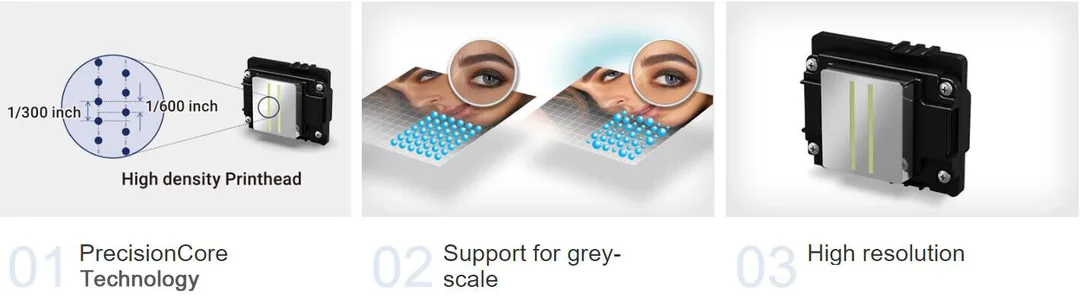

i3200 Epson Printhead Precision Core
- Specification
- Brochure
A1 Size Crystal UV DTF Sticker Printer Scanext 7124A
8 Pass: 3.8 sqm/h
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
- Max Printing Width: 700mm / 27.3 inch
- No of Colour: 12 Colour: C,M,Y,K,Lk, LLK, LC, LM, W, V1, V2, V3
- Ink Type: UV Ink
- Printing Media: Release Paper, Release Film, AB Film
- Printing Speed:
8 Pass: 3.8 sqm/h
- Printing Resolution:
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
- No of Printhead: 4 units
- Print Heads Model: Epson I3200(8)-U1HD, Epson I3200(4)-U1, Epson I1600-U1x2
- Ink Capacity: 1000ml Per Color
- Ink Supply System: White ink circulation, White ink stirring, CISS Ink Supply System
- Three Heating Sections: Pre Heater, Printing Bed Heater, Rear Heater (30 to 65 degC)
- Auto feeding & Collecting System: Standard Configuration
- Printer Media Feed Method: Roll Paper: One Roll, Back Load, Front Output
- Printer Maximum Media Roll Outer Diameter: 230 mm or less
- Laminate Maximum Media Roll Outer Diameter: 150mm or less
- Printing software: RIIN & Hosonsoft
- Operating System: Window 7 and above.
- Network Interface: 1000Mbps Ethernet
- Printhead maintain: Head clean during and after printing, Keep wet system
- Working Environment: Temperature 20 to 28 degC, Humidity 65% to 75%
- Printing Temperature: 120 to 145degC
- Printer Dimension: 1980mm (L) x 980mm (W) x 1650mm (H)
- Printer Weight: 180kg
- Power Supply: AC 220V ± 10%, 50/60 HZ,
- Power Consumption: 350W
- What's In the Box: Printer, Printer Stand, Roll Feeder & Auto Collect System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive, Waste Ink Tank.
- Warranty: 1 Year
Scanext UV DTF 7124 Printer

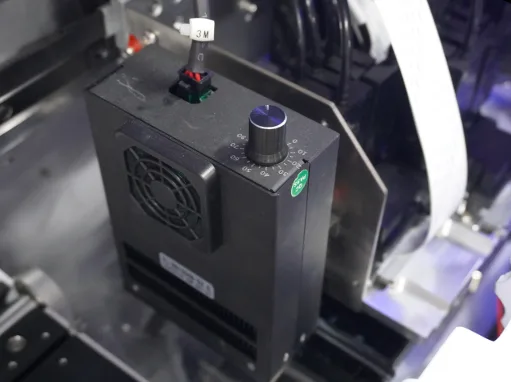

Adopt high power air-cooler UV lamp

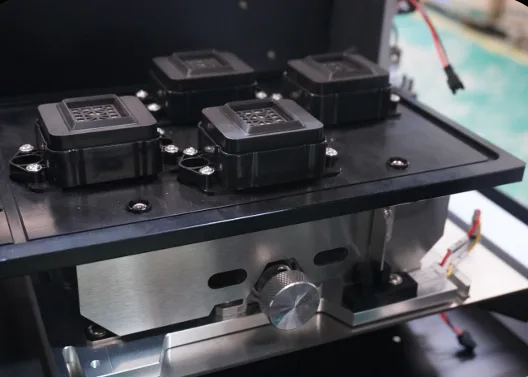

Automatic Nozzle Cleaning System, anti clogging flash spray and moisturizing

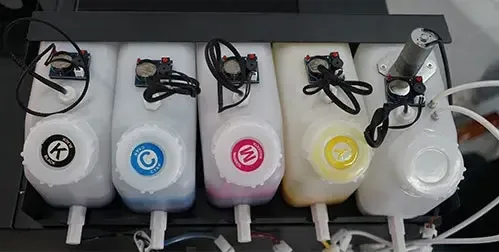

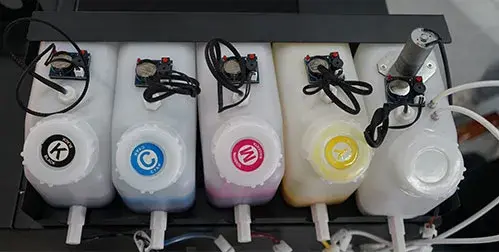

Ink Cartridges all with low ink alarm and white ink Cartridges equipped with a white ink mixer. Prevent ink set to damage the print heads
White ink stiring circulation system, extend sprinkler life
