UV Printer For Form Board, Corrugated Box, Acrylic Sheet, Sticker Roll, Bunting

Spot UV Printer For Roll & Sheet Scanext Hybrid 19086

Printing on Roll & Rigid Media:

Spot UV Corrugated Box

Spot UV PP Form Board

Spot UV Form Board

Acrylic Sheet

Double Sided Sticker

Light Box Backlit Film Same Color With Light Or Without Light

Light Box Backlit Fabric Same Color With Light Or Without Light

Spot UV Banner, Roll Up, Backdrop, Car Sticker, A Stand Poster

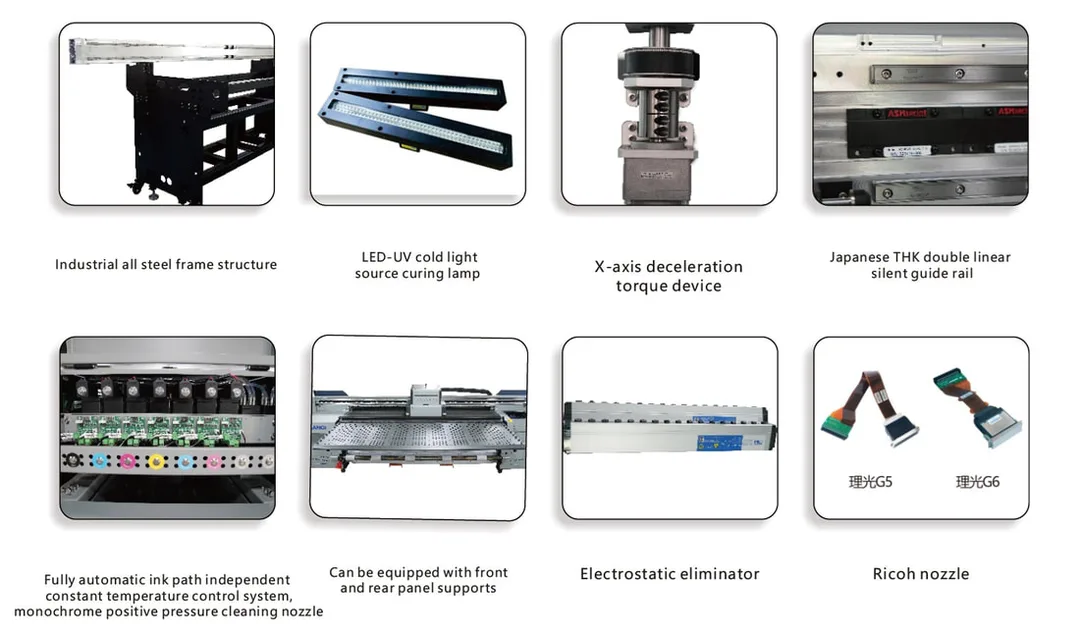

Spot UV Printer For Roll & Sheet Scanext Hybrid 19086

Features:

Printing speed is 54 sqm/h
Max Print Thickness: 10mm
Fully Automatic Print, Roll Feeder, Auto Collect System and Sheet Form
6 Colors UV Ink
Print Width is 1800mm
Printing Media: Form Board, Corrugated Carton Box, Acrylic sheet, Synthetic Paper, Tarpaulin, Super transparent stickers, transparent adhesive, car stickers, soft films, light sheets, canvas, PET, PVC and other materials.
Consistent Color Printing for Repeat Jobs

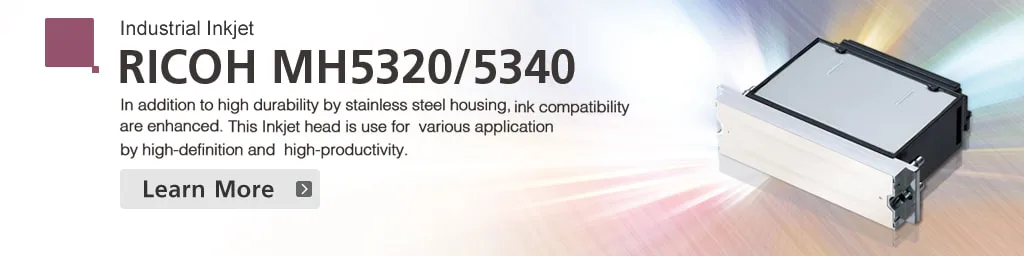

Form Board Printer Ricoh Industrial Printhead

Specification:

Max Printing Width: 1800mm
Max Print Thickness: 10mm
No of Colour: 6 Colour: C, M, Y, K, V, W
Ink Type: UV Ink
Print Heads Model: Ricoh Gen5 / Gen6
Printing Speed Printhead Ricoh GEN5:
Color White Color Pass: 18 sqm/h
Color Pass: 54 sqm/h
Printing Resolution: 720x1800dpi
No of Printhead: 8 units
Ink Capacity: 1000ml Per Color
Ink Curing System: LED UV
Auto feeding & Collecting System: Standard Configuration
Printer Media Feed Method: Roll Paper: One Roll, Back Load, Front Output
Printer Maximum Media Roll Outer Diameter: 230 mm or less
Printing software: Print Factory
Support File: BMP, TIF, JPG, PDF, EPS
Operating System: Window 10
Connectivity: USB 3.0
Working Environment: Temperature 20 to 30 degC, Humidity 30% to 60%
Printer Dimension: 3550mm(L) x 1300mm (W) x 1450mm (H)
Printer Weight: 850kg
Power Supply: AC 220V ± 10%, 50/60 HZ,
Power Consumption: 2600W
What's In the Box: Printer, Printer Stand, Roll Feeder & Auto Collect System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive.
Warranty: 1 Year
