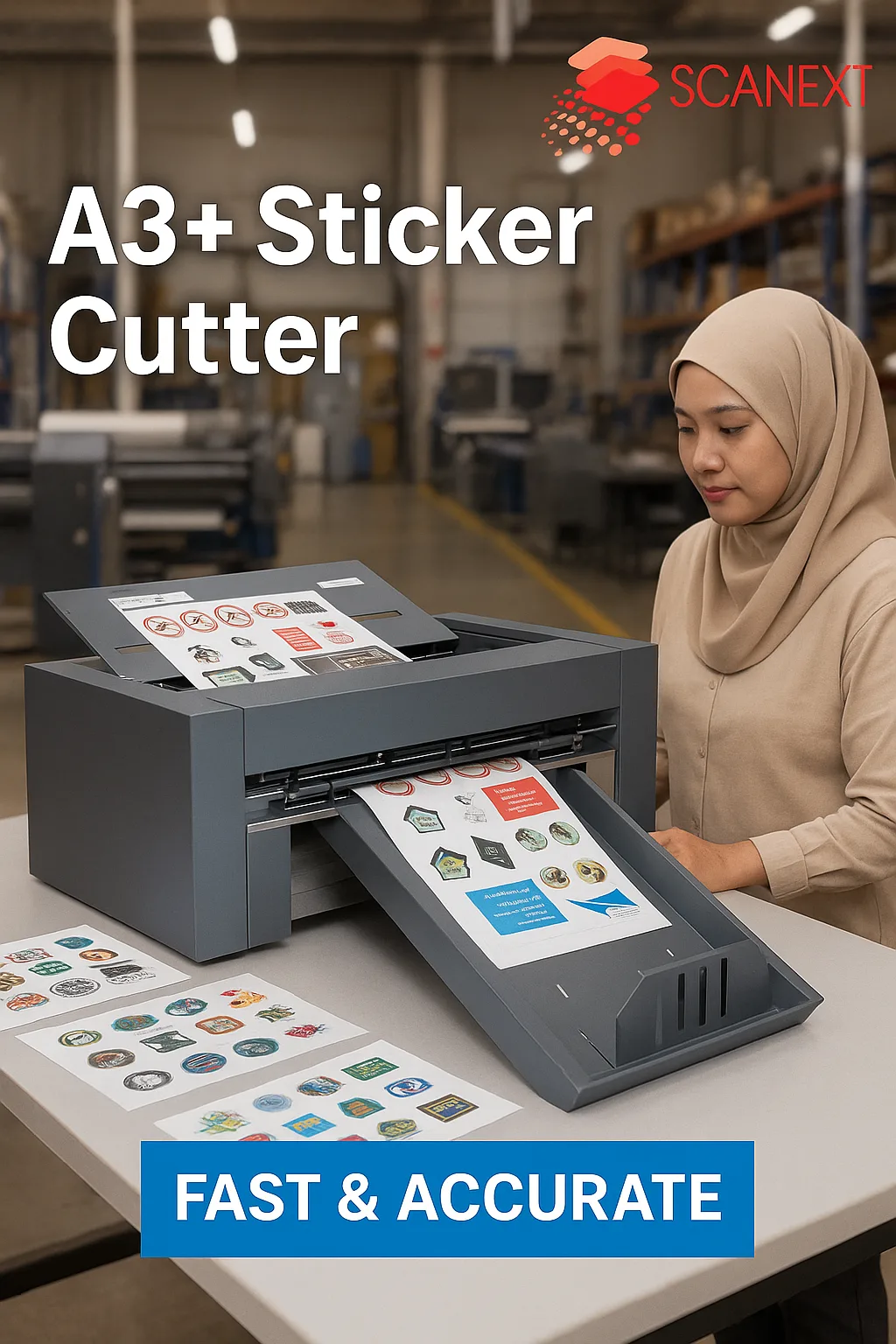

A3 Sticker Cutter Auto Feed

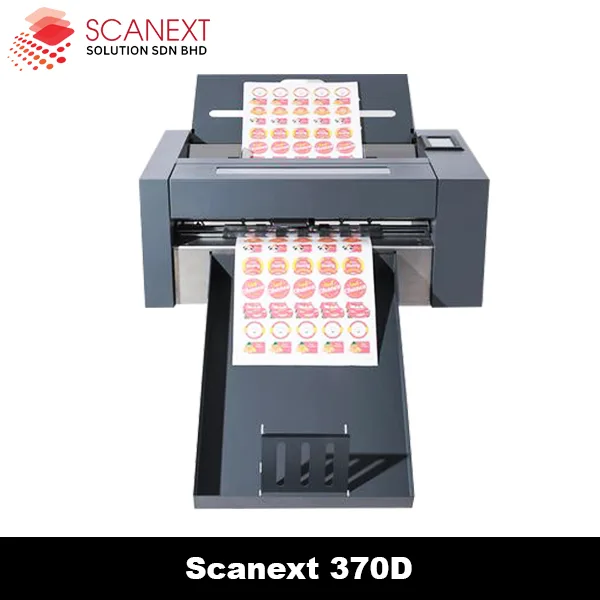

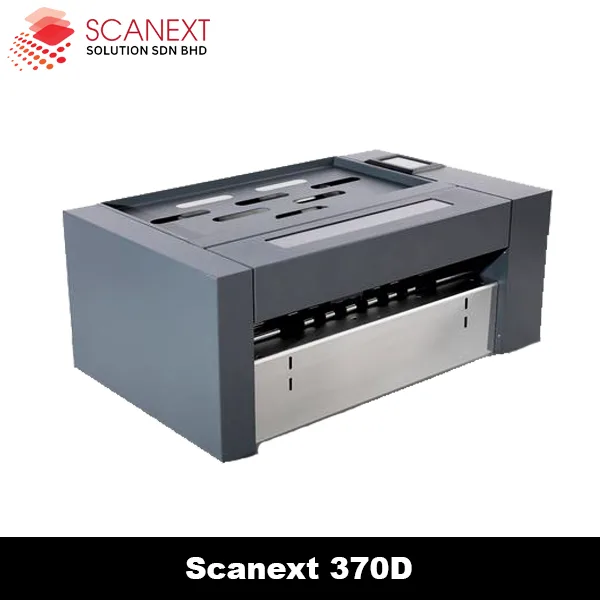

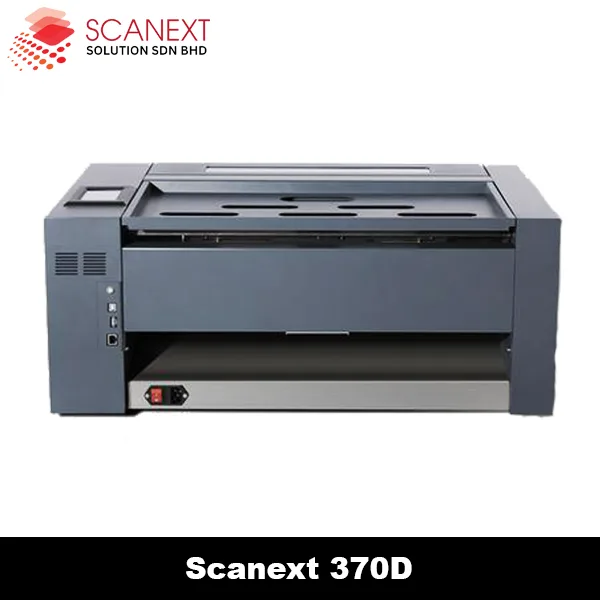

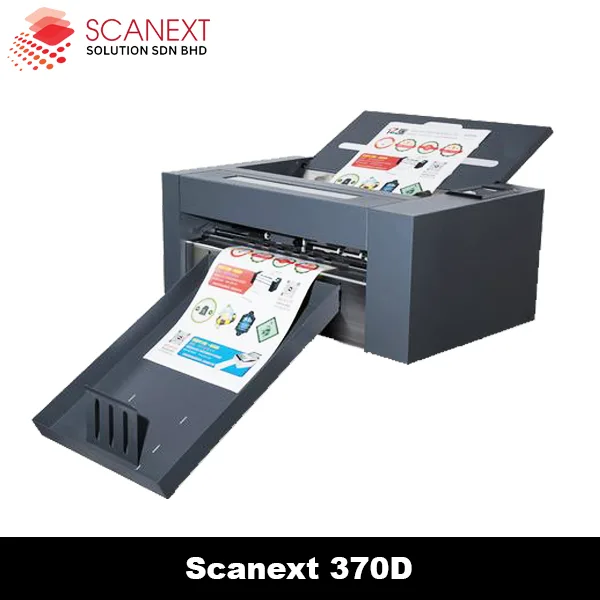

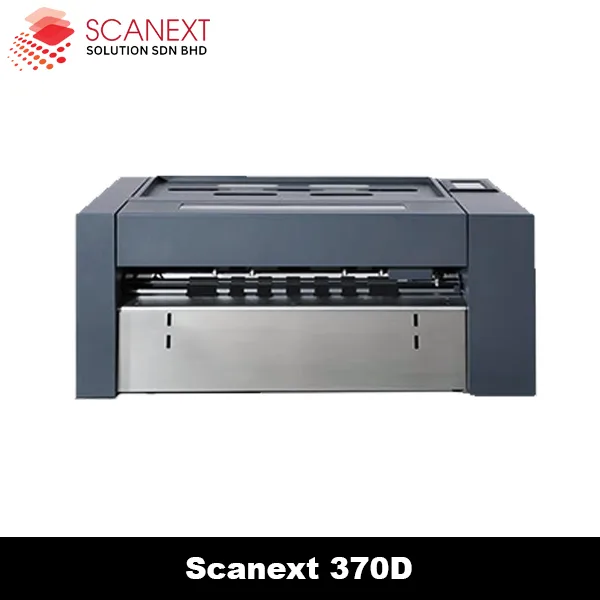

Sticker Cutting Machine Auto Feed Scanext 370D
Overview
- Real CCD detection system, automatically recognize mark point in different colors and cut in high precision.
- Once to load 1-150 pcs material, auto feeding no stuck, suits for small batch production.
- Integrated machine with dual heads, finish cut and creasing at one time.
- Multi interface connections, USB, U disk, WiFi, network cable, offline.
- Mix material cutting with QR code, Auto acquiring cutting files in different design.

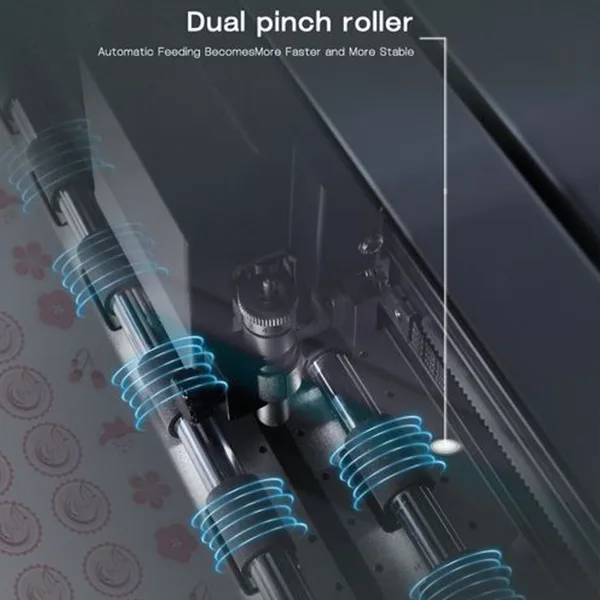

- Dual pinch rollers, properly using and saving cutting material.
- 4.3 inch sensitive LCD touch screen, Conveniently operation
Product Function Overview
Simple and Atmosphere Fuselage
Cutting Precision +/- 0.01 mm
Simple and Atmosphere Fuselage

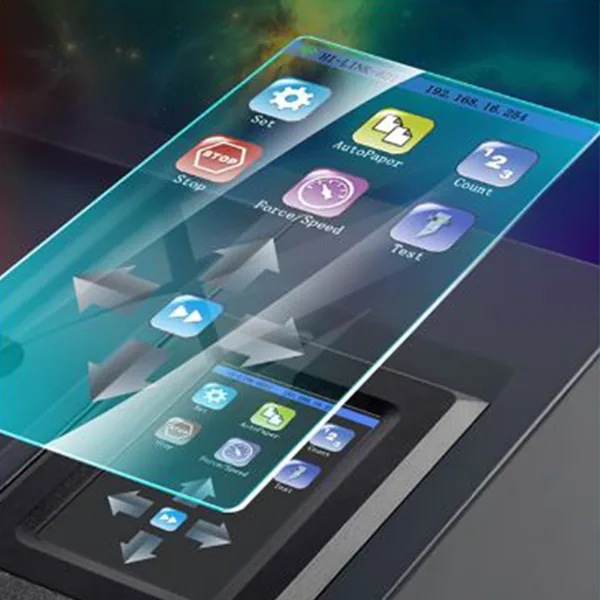

LCD Big Touch Screen Menu
USB Cable/U-disk/WiFi
Cutting Speed 1500mm/s

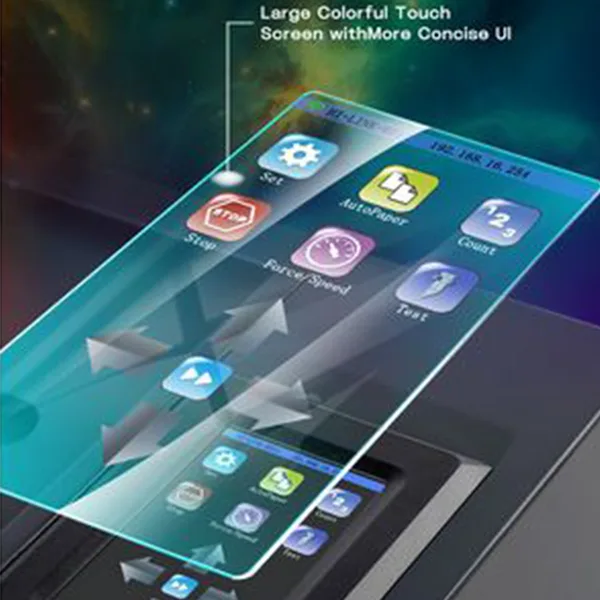

Large Colorful Touch

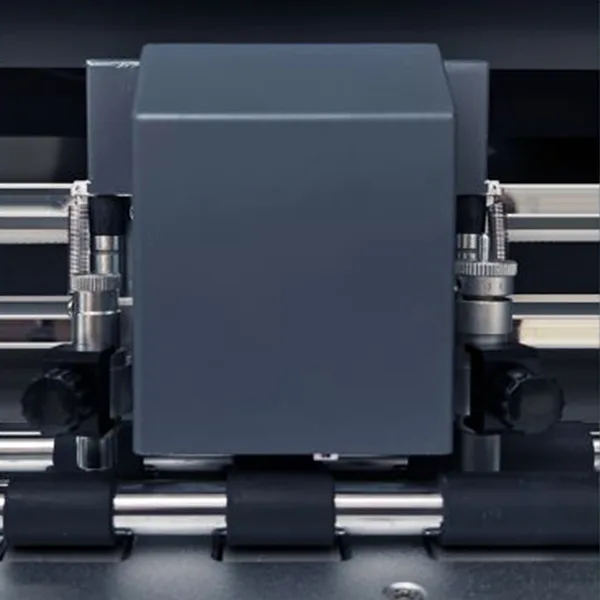

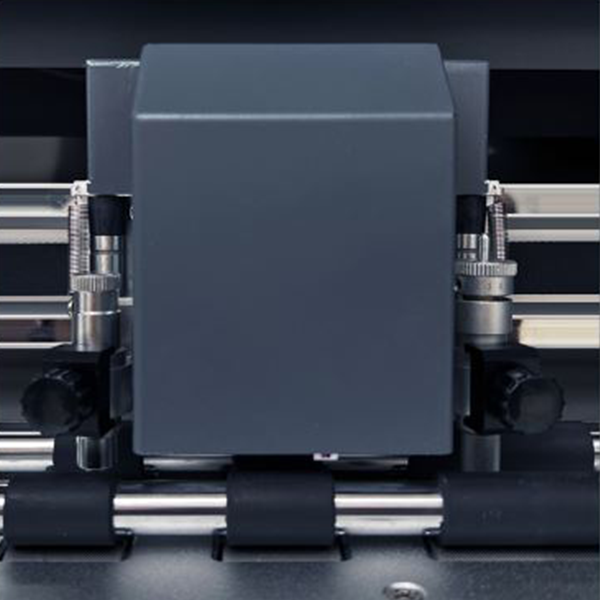

Dual Heads
Large Capacity
Widely Applicable to Various Environments
Advertising Industry
Graphic Packaging
DIY Craft
Fashion Industry
All kinds of self-adhesive, coated paper

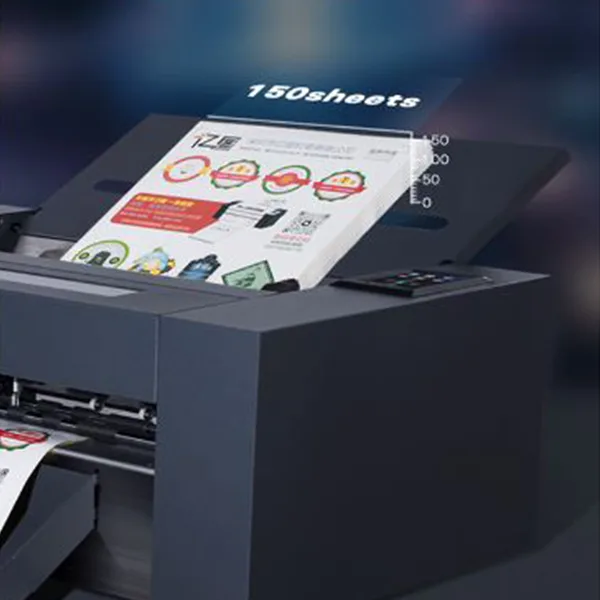

Large Capacity
Auto Feeding System

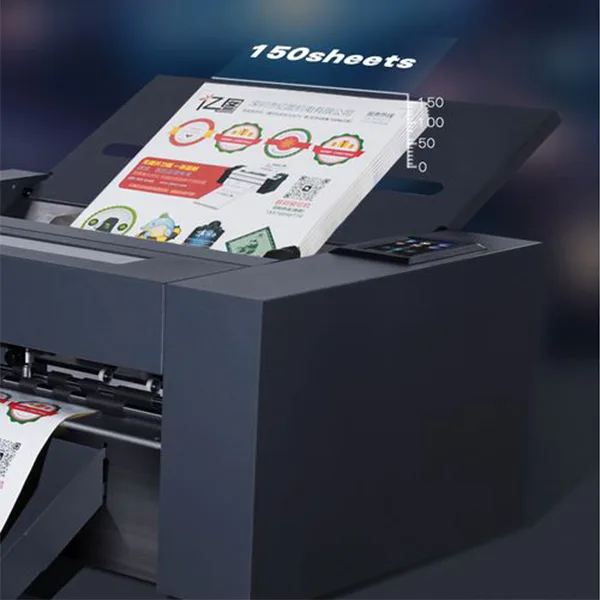

- Stack up to 150 sheets (depending on the material)
- Fully Automatic tracking and positioning High Precision
High Precision Paperfeeding system
New Constructure
- Cutting precision =/- 0.01 mm High Accuracy
Support Multiple Software Cutting
Adobe Illustrator
CoralDRAw Plugin
Sure Cuts ALot (Scal)
Signmaster
SIGNCUT
Flexi 12

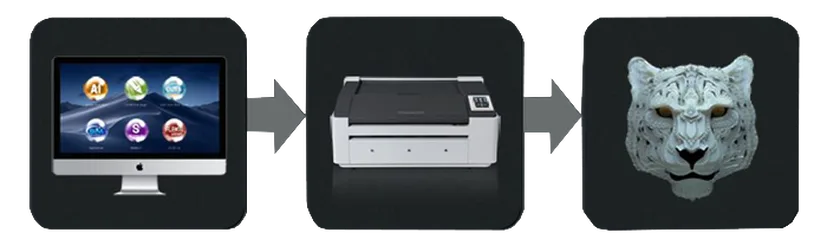

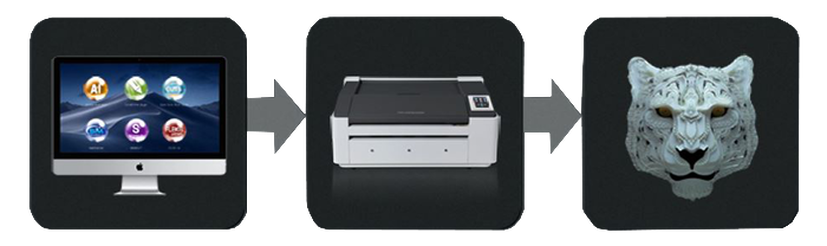

Operation Process
- Specification
- Brochure
Model
Scanext 370D
Max. media width
360mm
Max. cutting width
370mm
Max QTY of Auto Feeding
1-150PCS
Cutting Precision
0.01mm
Repeat Precision
0.082mm
Cutting Speed
1600mm/s
Max Force
2000G
Communication Mode
Disk/USB Cable/WiFi
Power
<100W
Number of blade heads
2
Cutting tools/tools
Crease+Incision, kiss cut + die-cutting
Paper Thickness
Not more than 1mm/400gsm
Working Environment
+5°C-+35°C
Software
CameraCut/CorelDRAW/Adobe Illustrator
Packing Dimensions
900*570*550mm
Packing gross weight
45KG
