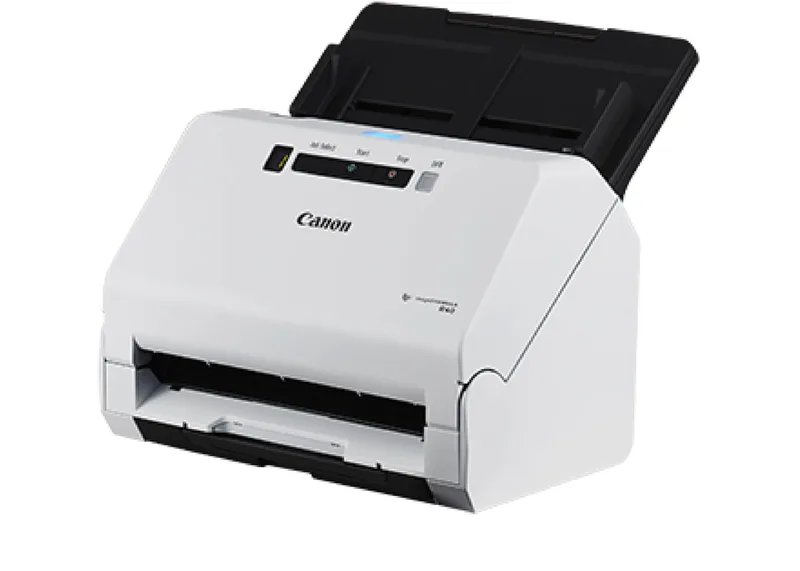

Canon imageFORMULA R40

​General

• Bundled Software: Windows & Mac: TWAIN Driver, Canon CaptureOnTouch

                                           Windows only: Readiris PDF Software, Cardiris business card software

• Dimensions (W x D x H): 291 x 250 x 245 mm (trays closed)
• Interface: USB 2.0
• Supported Operating System: Windows 7 SP1 or later (32bit/64bit), Windows 8.1 (32bit/64bit), Windows 10 (32/64-bit), MacOS 10.12, MacOS 10.13, MacOS 10.14, MacOS 10.15
• Options / Consumables: Exchange Roller Kit
• Power: 220-240 V
• Power Consumption: 22 W or less (Sleep Mode: 1.7 W)
• Weight: Approx. 2.8 kg

Scanning Document

• Feeding Method: Automatic or Manual
• Document thickness - Plain Paper: Weight: 27 to 209 g/m²

                                                                       Thickness: 0.04 mm to 0.25 mm

• Document thickness - Postcard: 128 - 300 g/m² (0.15 - 0.4 mm)
• Document thickness - Business Card: Less than 0.45 mm
• Document thickness - Card (ISO/IEC compliant): Less than 1.4 mm
• Feeding Capacity: 60 sheets
• Document size - Plain Paper (A4/LTR): Width: 50.8 – 216 mm

                                                                              Length: 54 – 356 mm

• Document size - Long Document Mode: Up to 3,000 mm

                                                                                 *Less than 2,700 mm in 400 / 600 dpi

• Document size - Postcard: Width: 88.9 - 108 mm

                                                         Length: 127 - 152.4 mm

• Document size - Business card: Width: 50 mm

                                                                 Length: 85 mm or larger

• Document size - Card (ISO/IEC compliant): 54 mm x 86 mm

                                                                                     (Embossed card can be scanned)

• Document size - Plastic card: 54 mm x 86 mm

Scan

• Light source: LED (Red, Green, and Blue)
• Maximum Resolution: 600 dpi
• Scan Resolution: 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
• Scanner Element: One-line contact image sensor (CIS)
• Scanner Type: Desktop sheet-fed scanner
• Scanning Modes: Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color
• Scanning Side: Simplex / Duplex
• Scanning speed: A4, 200 dpi:

                                        Black and White: 40 ppm (simplex) / 80 ipm (duplex)
                                        Grayscale: 40 ppm (simplex) / 80 ipm (duplex)
                                        Colour: 30 ppm (simplex) / 60 ipm (duplex)

• Suggested Daily Volume (Scans): 4,000
