What You’ll See in Action
Ricoh / Fujitsu Commercial Series
Fi-800R
Ultra-Compact Dual Path
Document Scanner
Blazing 40 ppm / 80 ipm ADF speeds. State-of-the-art dual-path mechanism with return-scanning technology for passports, IC, and A4 documents.
01
Return Path

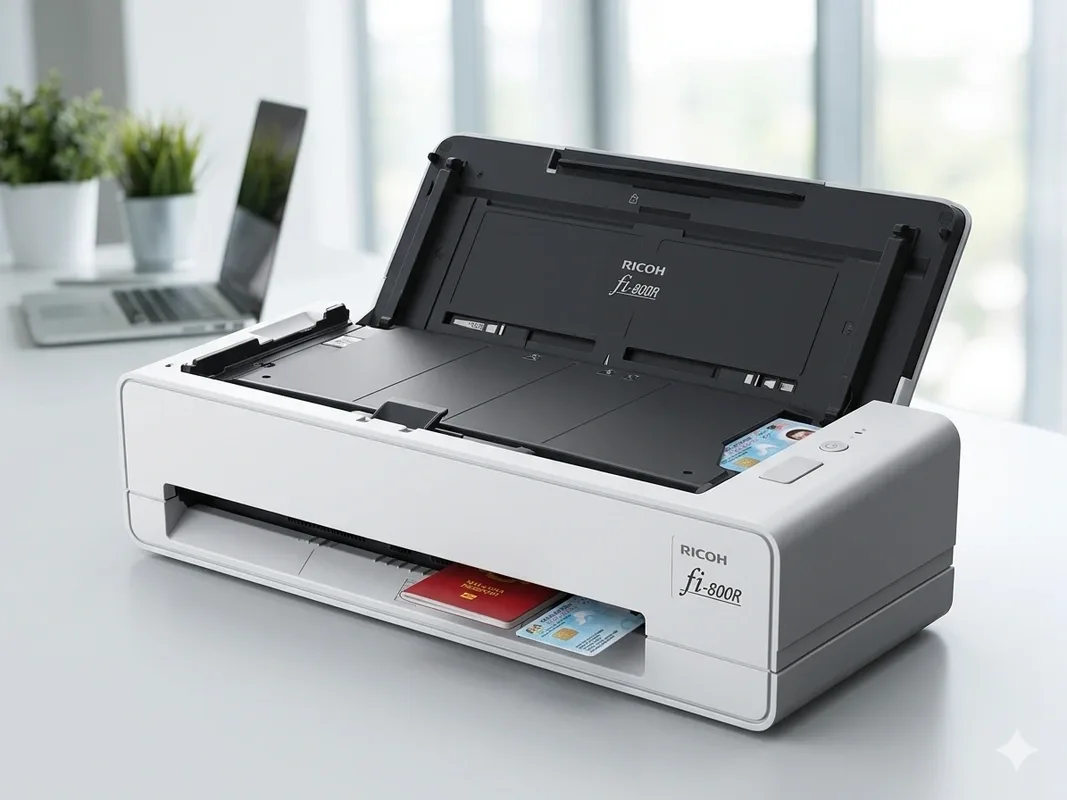

Front-load mechanism for thick IDs, booklets, and passports
02
U-Turn ADF
Top loader for stacked batch A4 scanning up to 40 ppm
03
Correction
Active Skew Correction prevents misfeeds and paper jams
04
Footprint
Innovative vertical architecture saves 50% reception desk space
§ 01
Versatile Front-Counter Automation
A
Dual-Path Versatility
Seamlessly switch between U-turn path batch loading and front return path booklet handling.
B
Passport Direct-Scan
Scan booklets up to 5mm thick through the front slot without fragile carrier sheets.
C
Zero-Spill Stacking
Automated output structure ensures scanned documents stack neatly without falling over.
D
Smart Clean-Up
PaperStream IP clears colored backgrounds and textures for ultimate OCR data extraction.
§ 02
Spec readout
| Scan speed | 40 PPM / 80 IPM (A4 Color, Duplex) |
| Feeder type | ADF + FRONT RETURN SHEET FEEDER |
| Optical resolution | 600 DPI |
| Interface | USB 3.2 GEN 1x1 / USB 2.0 / USB 1.1 |
| Daily Duty Cycle | 4,500 SHEETS |
| Dimensions | 296 × 105 × 83 MM |
| Weight | 2.0 KG |
Ready to speed up customer registration?
Talk to Docusafe Sdn Bhd about deploying the fi-800R for your reception counters.
WhatsApp us nowRicoh fi-800R Front-Counter Scanner
- State-of-the-Art Booklet Extraction Front Return Path allows scanning of passports, identity booklets, and land titles up to 5.0 mm thick without any plastic sleeve protection.
- U-Turn Design for Compact Workspaces Documents loaded via the top automatic feeder return to the top after scanning, eliminating the requirement for extended exit trays.
- Active Skew Correction System Independent rollers rotate dynamically to realign papers that are fed at an angle, shielding documents from edge damage.
- High-Speed Industrial Throughput Processes large files quickly with a high-capacity 20-sheet automatic feeder operating at up to 40 pages per minute.
- Advanced MRP Passport Reader Automatically extracts data from Machine Readable Zones on global travel documents via bundled software engines.
Full technical specifications
| Scanner type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Scan speed (ADF U-Turn Path) | Simplex: 40 ppm | Duplex: 80 ipm (Color/Grayscale/Mono at 200/300 dpi, A4) |
| Scan speed (Return Path) | 3.5 seconds per sheet (Color/Grayscale/Mono at 200/300 dpi, A6/Passport) |
| Image sensor type | Color CIS x 2 (Front x 1, Back x 1) |
| Light source type | Three-color LED (Red / Green / Blue) x 2 |
| Optical resolution | 600 dpi |
| Output resolution | 50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi via driver interpolation |
| Max document size (ADF) | 215.9 x 355.6 mm (8.5 x 14 in.) | Long paper scanning up to 5,588 mm |
| Max document size (Return Path) | Width: 105 mm (4.13 in.) / Length: 148 mm (5.83 in.) - Supports Passport booklet templates |
| Document thickness limits | ADF U-Turn: 40 to 127 g/m² | Front Return Path: Up to 1.27 mm for cards, Up to 5.0 mm for booklets |
| ADF Capacity | 20 sheets (A4 80 g/m²) |
| Interface Connectivity | USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1 (Type-B Connector) |
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Operating Mode: 19 W or less | Sleep Mode: 1.7 W or less | Power Off Mode: 0.15 W or less |
| Dimensions (W x D x H) | 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.) |
| Weight | 2.0 kg (4.4 lb) |
| Environmental compliance | ENERGY STAR® / RoHS / EPEAT Compliant |
| Bundled Software Suite | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), PaperStream ClickScan, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin |
Specifications sourced directly from Office Mart official fi-800R technical datasheets. Verify details at Office Mart →
Product Overview Video
Watch the Ricoh fi-800R in action to see how its innovative dual-path design and return-scanning mechanism maximize counter space while delivering professional results.
Video Placeholder (Gantikan perenggan ini dengan kod Embed YouTube anda)
§ 03
Frequently asked questions
No. Thanks to the dedicated front Return Path, you can insert passport booklets up to 5.0 mm thick directly into the front feeder. The scanner processes them smoothly without causing scratches or requiring protective plastic carrier sheets.
The U-Turn path ejects documents from the top rather than the bottom. This means the scanner requires zero additional desk space in front of it for an exit tray, allowing it to fit into tight registration desks and customer windows perfectly.
Yes. The ADF handles multi-page standard documents smoothly via the U-Turn path, while the front slot is optimized for quick single-item insertion like ICs, driver's licenses, and booklets. The automatic separation technology handles various formats efficiently.
