AI-Powered Document Automation
Automate your filing workflow with the high-performance Ricoh fi-7700. Capture data instantly & eliminate manual errors in Bandar Sri Damansara, Kepong & KL.
Visit Office MartPain Points
- Messy file naming.
- Slow manual data entry.
- Time-consuming retrieval.
Our Solution
- AI OCR Capture.
- Auto-rename files.
- Cloud Integration.
Ricoh fi-7700
| Speed | 100 ppm / 200 ipm |
| ADF | 300 Sheets |
| Type | ADF & Flatbed |
The Ricoh fi-7700 is an A3 production scanner engineered for high-speed, high-volume environments.
Ricoh fi-7700 Performance
- Scanning Speed: 100 ppm / 200 ipm (A4 Landscape)
- ADF Capacity: 300 sheets
- Document Size: Up to A3 (297 x 420 mm)
- Optical Resolution: 50 to 600 dpi
- Interface: USB 3.0 / 2.0 / 1.1
Key Features
- Automatic Document Feeder & Flatbed support
- Paper Protection function (iSOP)
- Skew Reducer to improve scan reliability
- Multi-feed detection (Ultrasonic sensor)
- Supports diverse document types (plastic cards, thin paper)
Ready Stock & Support
- Ready stock Ricoh fi-7700 units
- Professional delivery & installation (KL area)
- Onsite user training provided
- Dedicated onsite service engineer
- Maintenance & repair support
Fast Quote & Packages
Checklist:- Monthly scanning volume
- Types of documents (A3/A4/Forms)
- OCR/Software integration needs
- Workflow automation requirements
Visit Scanext or WhatsApp for Demo
Scanext Solution Sdn Bhd | Bandar Sri Damansara, Kuala Lumpur
Nearby: Kepong, Jinjang, Desa ParkCity, Bandar Menjalara
FAQs
What is the scanning speed of Ricoh fi-7700?
The fi-7700 scans at 100 ppm (Simplex) or 200 ipm (Duplex) in A4 Landscape mode.
Does it support A3 size documents?
Yes, the fi-7700 is designed to handle documents up to A3 size effectively.
Can it scan mixed paper sizes?
Yes, the scanner is equipped with advanced paper feeding technology to handle mixed paper sizes and thicknesses seamlessly.
Ricoh fi-7700 Production Scanner

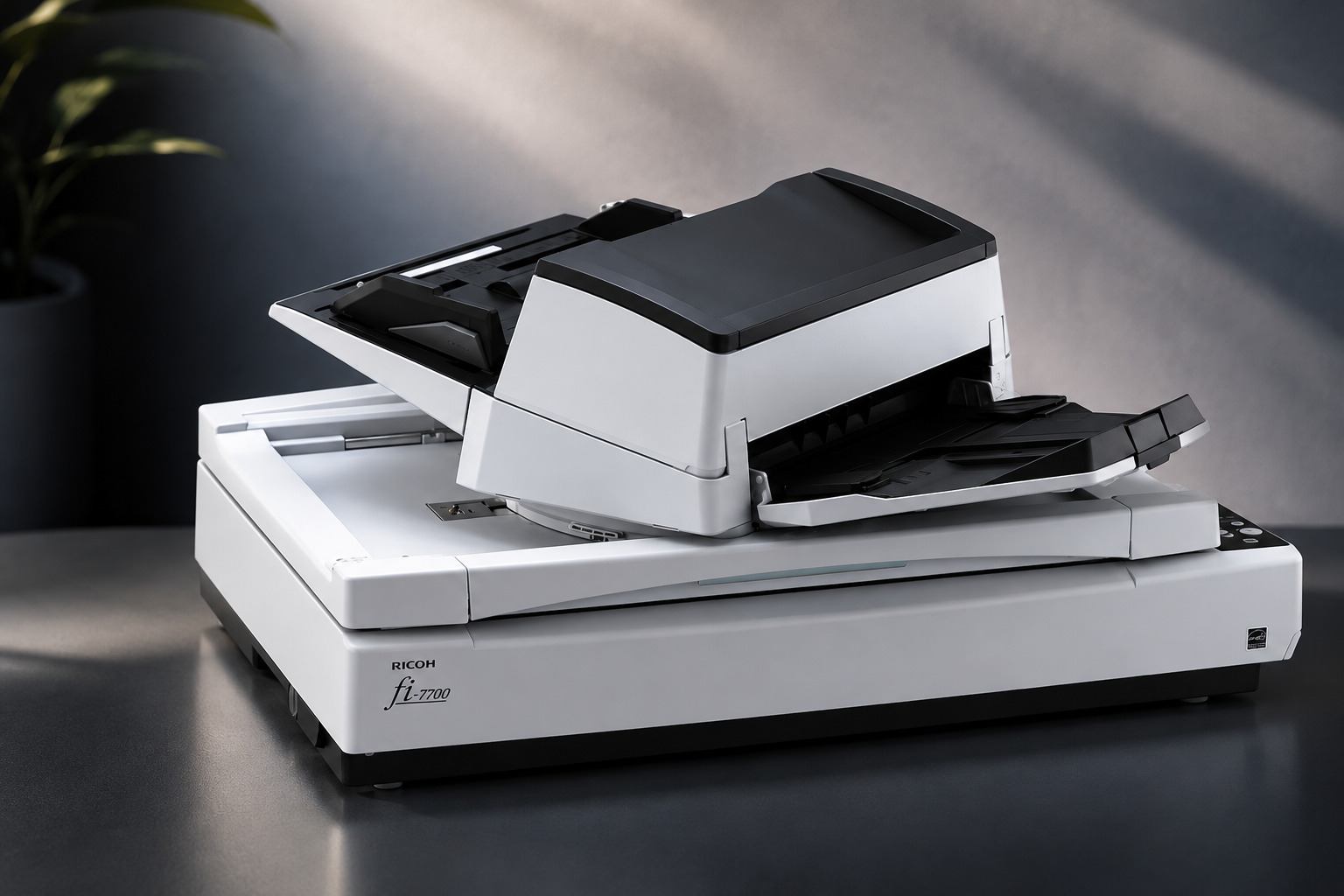

The Ricoh fi-7700 is a high-speed, heavy-duty production scanner equipped with both an Automatic Document Feeder (ADF) and a flatbed, designed to handle high volumes of diverse document types with exceptional accuracy.
- ADF & Flatbed Versatility: Perfectly handles large batches of paper via the ADF while providing a built-in glass flatbed for scanning delicate, bound, or non-standard documents.
- Skew Reducer Technology: Minimizes the risk of multi-feeds and document skewing, ensuring high-fidelity digitization even for thin or varied paper sizes.
- Intelligent Paper Protection: Uses acoustic sensors and document length detection to prevent damage to original documents during high-speed scanning.
- High Efficiency: Designed for continuous production operation, delivering consistent performance for demanding organizational workflows.
Extended Technical Specifications
| Feature | Detail |
|---|---|
| Scanner Type | ADF (Automatic Document Feeder) + Flatbed |
| Scanning Speed (A4 Landscape) | Simplex: 100 ppm | Duplex: 200 ipm (Color, Grayscale, Monochrome at 200/300 dpi) |
| Scanning Speed (A4 Portrait) | Simplex: 80 ppm | Duplex: 160 ipm (Color, Grayscale, Monochrome at 200/300 dpi) |
| Image Sensor Type | Color CCD x 3 (Front x 1, Back x 1, Flatbed x 1) |
| Light Source | White LED Array x 6 (Front x 2, Back x 2, Flatbed x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) |
| ADF Capacity | 300 sheets (A4 80 g/m² or Letter 20 lb) |
| Daily Duty Cycle | Up to 44,000 sheets per day |
| Document Size - ADF (Max) | 304.8 x 431.8 mm (12 x 17 in.) |
| Document Size - Flatbed (Max) | 304.8 x 457.2 mm (12 x 18 in.) |
| Long Paper Scanning | Up to 5,588 mm (220 in.) |
| Paper Weight (Thickness) | 20 to 413 g/m² (5.3 to 110 lb) for A4-A8 sizes | Plastic cards up to 1.4 mm |
| Interface Connectivity | USB 3.1 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1 |
| Paper Protection Functions | iSOP (Intelligent Sonic Paper Protection) & Lag Detection |
| Dimensions (W x D x H) | 706 x 500 x 345 mm (27.8 x 19.7 x 13.6 in.) |
| Weight | 35 kg (77 lb) |
| Power Consumption | Operating: 64 W or less | Sleep Mode: 1.7 W or less | Auto Standby: 0.35 W or less |
| Bundled Image Software | PaperStream IP (TWAIN/ISIS), PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Scanner Central Admin |
Product Overview
See the Ricoh fi-7700 in action, demonstrating its capability in high-speed, reliable production scanning for professional environments.
Video Placeholder (Insert your YouTube Embed Code here)
Product Brochure
Download the official Ricoh fi-7700 brochure for detailed information on integration, advanced paper handling features, and system requirements.
Visit Product Page / Brochure
