ScanSnap iX1300
Compact Wi-Fi Desktop Scanner
Scan Speed
30 ppm / 60 ipm
ADF Capacity
20 Sheets
Connectivity
Wi-Fi & USB 3.2
Scanning Modes
Dual Path (U-turn & Return)
Cloud Capability
PC-Free Scanning
Document Size
Up to A4 / Thick Cards

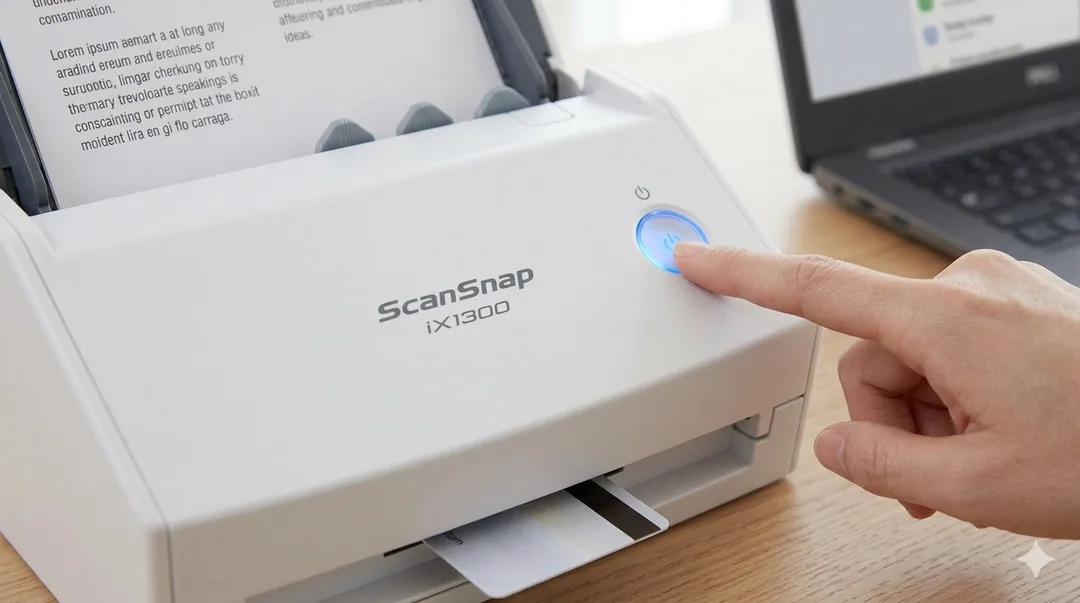

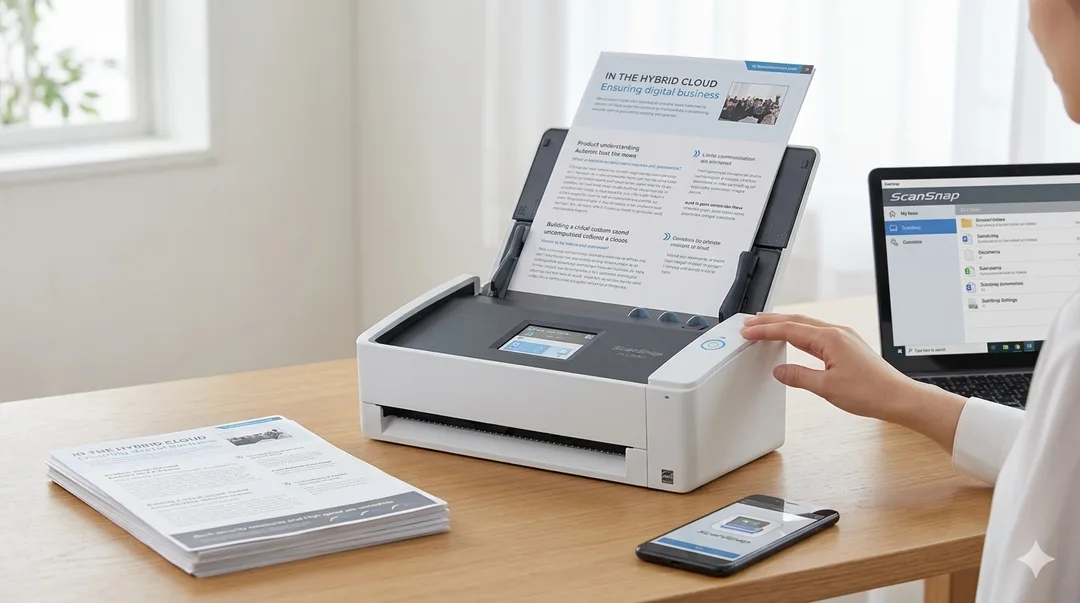

Ricoh ScanSnap iX1300 Compact Scanner
The ScanSnap iX1300 is an ultra-compact, high-performance desktop scanner designed for maximum productivity in limited workspaces. It offers reliable, high-quality digitization for home offices and professional environments.
- Dual Scanning Paths: U-turn path for multi-page batches and Return Scan path for thick documents, plastic cards, and booklets.
- Fast Performance: Delivers scanning speeds of up to 30 ppm / 60 ipm.
- Flexible Connectivity: Equipped with both Wi-Fi and USB, supporting PC-free scanning directly to cloud services.
- Space-Saving Design: Compact footprint with a 20-sheet ADF, perfect for hybrid workforces and SMEs.
Technical Specifications
| Scan Speed | Up to 30 ppm / 60 ipm |
|---|---|
| ADF Capacity | 20 sheets |
| Connectivity | Wi-Fi & USB |
| Scanning Paths | Dual-path (U-turn & Return) |
| Ideal For | Home Offices, SMEs, Hybrid Workforces |
Inquiries
Contact our team via WhatsApp for stock availability and the latest quotation for your organization.
Get Quotation via WhatsApp Visit Office MartRicoh ScanSnap iX1300 Compact Scanner
The ScanSnap iX1300 is a compact, Wi-Fi enabled desktop scanner perfect for small workspaces. It features innovative dual scanning paths for maximum versatility.

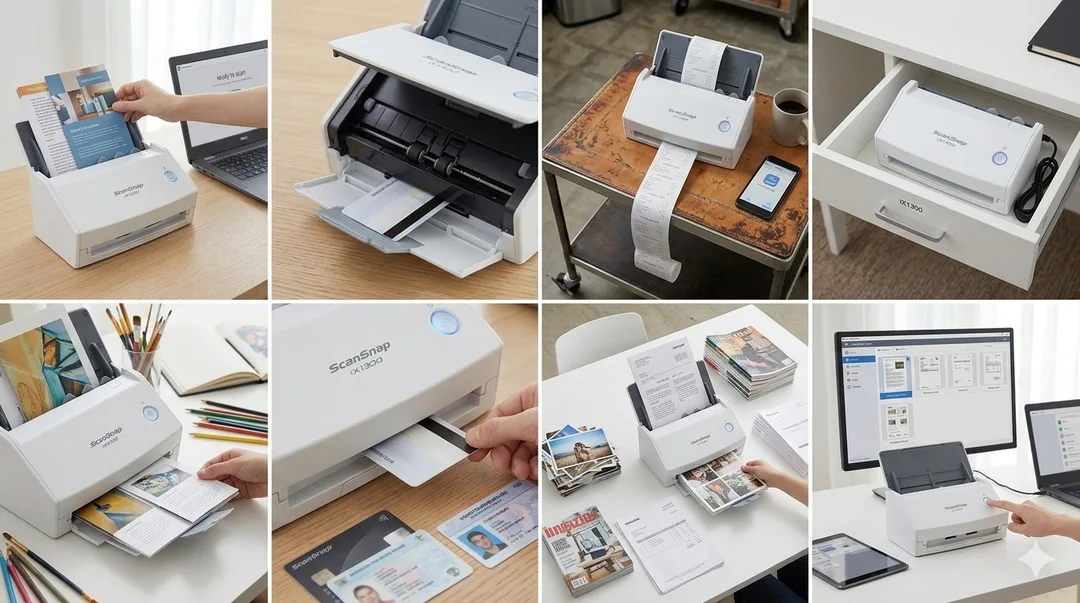

- Automatic Document Feeder (ADF): U-turn path scans multi-page documents quickly.
- Manual Feed Slot: Return path allows for scanning thick items like plastic cards, booklets, or folded documents without needing extra front space.
- Compact Footprint: Designed to fit into tight spaces, with paper ejection to the top.
- Smart Connectivity: Wi-Fi support enables direct scanning to cloud services without a PC.
Technical Specifications
1. General Specifications
| Product Model / Part Number | ScanSnap iX1300 (White) / PA03805-B105 |
|---|---|
| Scanner Type | Dual Path: ADF (Automatic Document Feeder) + Single Feed (Return Scan), Duplex |
| Scanning Color Modes | Color, Grayscale, Monochrome, Automatic Detection (Color/Grayscale/Monochrome) |
| Image Sensor Type | Color CIS x 2 (Front x 1, Back x 1) |
| Light Source | 3 Color LED (Red / Green / Blue) |
| Optical Resolution | 600 dpi |
2. Scanning Performance (A4 Portrait)
| U-turn Scan (ADF) Speed (Color/Grayscale 300dpi, Mono 600dpi) | Simplex / Duplex: 30 ppm / 60 ipm |
|---|---|
| Return Scan (Manual Feeder) Speed (Color/Grayscale 300dpi, Mono 600dpi) | 5 seconds per page |
| Excellent Mode Speed (Color/Grayscale 600dpi, Mono 1200dpi) | ADF: 9 ppm (Simplex/Duplex) Return Scan: 14 seconds per page |
| ADF Capacity | 20 sheets (A4, 80 g/m² or 20 lb) |
3. Document & Media Support
| Standard Paper Sizes | A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Sizes |
|---|---|
| Folded Layout Sizes (via Return Path) | Folded A3, B4, and Double Letter |
| Custom Size Limits | Minimum: 50.8 x 50.8 mm (2 x 2 in.) Maximum: 216 x 360 mm (8.5 x 14.17 in.) |
| Long Paper Scanning | ADF Only: Up to 3,000 mm (118.1 in.) with PC connectivity Smart Device / Cloud: Up to 1,117 mm (Simplex) |
| Paper Weight (ADF Thickness) | 40 to 209 g/m² (11 to 56 lb) depending on document sizing |
| Return Path Support Thickness | Paper: 20 to 413 g/m² (5.4 to 110 lb) Booklets / Pamphlets: 2 mm (0.08 in.) or less Cards: 1.4 mm or less (supports embossed ID cards ISO7810 compliant) |
| Multifeed Detection | Length Detection |
4. Connectivity & Advanced Software
| USB Interface | USB 3.2 Gen 1x1 / USB 3.0 / USB 2.0 / USB 1.1 (Type-B Connector) |
|---|---|
| Wi-Fi Interface | IEEE802.11a/b/g/n/ac (2.4 GHz / 5 GHz dual-band compatible) |
| Wi-Fi Connection Modes | Access Point Connect Mode (Infrastructure Mode) Direct Connect Mode (Ad-hoc Mode) |
| Bundled Applications | ScanSnap Home, ScanSnap Manager, ABBYY FineReader for ScanSnap™ |
| Automated Image Processing | Automatic Color Detection, Automatic Cropping, Automatic Deskew, Automatic Rotation, Blank Page Detection, Document Type Detection, Text Contrast Enhancement, Bleed-through Reduction, Vertical Streaks Reduction |
| Output Formats | JPEG, PDF, Searchable PDF, Password Protected PDF, PDF/A (Windows® only) |
5. Environmental & Physical Parameters
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
|---|---|
| Power Consumption | Operating Mode: 17 W or less Sleep Mode: 1.7 W or less (USB) / 2.0 W or less (Wi-Fi) Standby Mode: 0.3 W or less |
| Operating Environment | Temperature: 5°C to 35°C (41°F to 95°F) Relative Humidity: 20% to 80% (Non-condensing) |
| Compliance Certifications | ENERGY STAR® Certified, RoHS Compliant, EPEAT Silver |
| Dimensions (W x D x H) | 296 x 114 x 87 mm (11.7 x 4.5 x 3.3 in.) when device is closed |
| Weight | Approx. 2.0 kg (4.4 lb) |
Product Overview
Discover how the ScanSnap iX1300 saves space while delivering high-speed, reliable document digitization.
Video Placeholder
Get a Quotation
Contact our team via WhatsApp to check stock availability and receive a competitive quotation for your office or home use.
Contact Us via WhatsApp
