Scan Qr Code Barcode and Auto Rename File Name Document Scanner

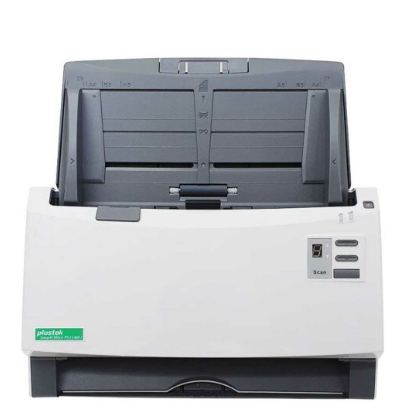

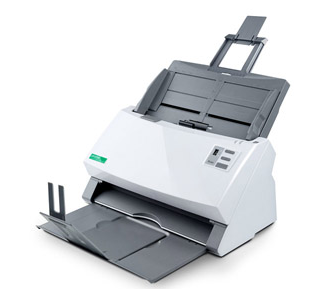

Plustek SmartOffice PS3140U

The SmartOffice PS3140U document scanner makes document archiving as a simple task. The PS3140U can do the high-speed scanning easily with the touch of one button, 40pages per minute with newly TWAIN driver and 100-page automatic document feeder make PS3140U become the first choice for document digitizing. It adapts most of the working environment. Alongside its Plustek DocAction and DocTwain, it offers users more fexibility and support document auto-size,which avoids spending extra time to manually adjust paper size before scanning. The PS3140U also provide you to do more productivity by supporting batch scanning, it helps you not only save the cost but also the time.

Robust 100-page Automatic Document Feeder (ADF) with enhanced hard embossed card scanning
Comes with Plustek DocAction and Plustek DocTWAIN
Advanced paper handling technology for the ultimate in feeding reliability
Fast, 40ppm / 80ipm scanning in monochrome and grayscale
3 colour dropout modes for advanced OCR processing
Enhanced for the ultimate in performance and reliability
Exceptional 300 dpi color scanning at 30ppm / 60ipm

SPECIFICATION
VIDEO

Image Sensor	CIS x 2 (Duplex)
Light Source	LED
Optical Resolution	600 dpi
Hardware Resolution	600 x 600 dpi
Scan Modes	Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit
ADF Capacity	1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards) 3. Plastic Card, Max. thickness under 1.2 mm. Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )	40 ppm/ 80 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 40 ppm/ 80 ipm (Color mode, 200 dpi, A4 Portrait) 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)	Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L)	Max: 216 x 5080 mm (8.5” x 200”) Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)	40 to 220 g/㎡ (10 to 58 Lbs)
Multi-feed Detection	With ultrasonic technology
Daily Duty Scan ( Sheets )	4000
Roller Lifetime (Scans)	300,000
Pad Lifetime (Scans)	100,000
Action Button	4 Buttons: Up, Down, Scan, Standby 9 function keys are all customizable.
Power Supply	24 Vdc/ 1.25 A
Interface	USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight	2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H)	318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
Protocol	TWAIN Compliant
Operating System	Windows XP / Vista / 7 / 8 / 10 / 11 macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements	Windows and Mac 2.0 GHz CPU processor or higher[1][2][3] [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher [2]Support Mac INTEL and M1 based processor [3]Compatibility is not available with PowerPC 4 GB RAM minimum (Recommended: 8 GB or more) 6 GB of hard-disk space for program installation Display dimensions of 1024x768 or greater
Bundled Software	Plustek DocAction Plustek DocTWAIN Plustek MacAction Plustek ICA *Installation DVD only included software and driver for Windows. For Mac, please download from our website.
Built-in OCR	Plustek OCR (For Windows) (Powered by ABBYY® FineReader®) Plustek DocOCR (For Mac) *Installation DVD only included software and driver for Windows. For Mac, please download from our website.
