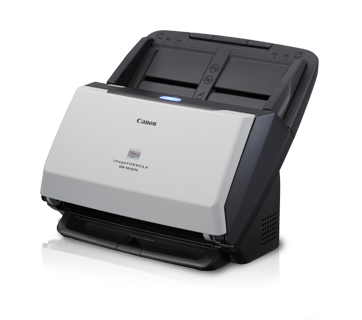

High Speed A4 Scanner Canon DR-M160II
Built tough for super-fast, reliable scanning.
DR-M160II offers superb accuracy with a precise feeding mechanism capable of handling variety of documents.
DR-M160II offers superb accuracy with a precise feeding mechanism capable of handling variety of documents.
- Document scanner
- Scan size: A4 & Legal size
- Speed: up to 60ppm / 120ipm
(2-sided)
Features
Compact and heavy duty
Equipped with a sturdy body and durable moving parts, including a paper guide that easily adjusts to fit your document, the DR-M160II is built tough to get the job done as smoothly and effortlessly as possible. The heavy-duty feed tray can hold up to 60 sheets.
The slanted paper path design ensures smooth handling for everything from thick or thin documents to multi-sheet forms, checks, embossed cards, etc.
Equipped with a sturdy body and durable moving parts, including a paper guide that easily adjusts to fit your document, the DR-M160II is built tough to get the job done as smoothly and effortlessly as possible. The heavy-duty feed tray can hold up to 60 sheets.
The slanted paper path design ensures smooth handling for everything from thick or thin documents to multi-sheet forms, checks, embossed cards, etc.
Fast, reliable scanning
Capable of producing high-quality 24-bit images in full colour at 60ppm via simple front panel operations, DR-M160II is everything you need for your intensive document.
In addition, the double feed detection and separation retry functions automatically correct feed errors to maximize efficiency.
Capable of producing high-quality 24-bit images in full colour at 60ppm via simple front panel operations, DR-M160II is everything you need for your intensive document.
In addition, the double feed detection and separation retry functions automatically correct feed errors to maximize efficiency.
Superb image processing
Perfect your scans with image processing functions. The background smoothing function can reduce unevenness and smoothes scanned document data you require.
The Automatic Colour Detection differentiates colour documents from your black & white for easy scanning, so it's no longer necessary to separate black & white and colour documents prior to scanning.
Perfect your scans with image processing functions. The background smoothing function can reduce unevenness and smoothes scanned document data you require.
The Automatic Colour Detection differentiates colour documents from your black & white for easy scanning, so it's no longer necessary to separate black & white and colour documents prior to scanning.
Specification
Find out more about the High Speed A4 Scanner Canon DR-M160II its features and what it can do.
|
|
GENERAL |
|
Bundled Software |
ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic |
|
Dimensions (W x D x H) |
Feed tray and eject tray closed: 285 × 254 × 231 mm Feed tray and eject tray open : 285 x 652 x 367 mm |
|
Ejection pockets |
- |
|
Interface |
SuperSpeed USB3.1 Gen1/Hi-Speed USB2.0 |
|
MICR |
- |
|
On-Board Jogger |
- |
|
Operating Environment |
Temperature: 10°C to 32.5°C Humidity: 25% to 80% RHTemperature: 10 – 35°C Humidity: 20% to 80% RH |
|
Supported Operating System |
Windows |
|
Options / Consumables |
Flatbed Scanner Unit 102, Flatbed Scanner Unit 201, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4) |
|
Power |
AC100 – 240 V |
|
Power Consumption |
Scanning: 23 W, Sleep mode: 1.4 W, Power Turned OFF: less than 0.1 W |
|
Weight |
Approx. 3.4 kg |
|
|
SCANNING DOCUMENT |
|
Feeding Method |
Automatic |
|
Document thickness - Plain Paper |
- |
|
Document thickness - Postcard |
- |
|
Document thickness - Business Card |
Weight: 380 g/m2 or lessThickness: 0.45 mm |
|
Document thickness - Card (ISO / IEC compliant) |
1.4 mm or less |
|
Document thickness - Passport |
4mm or less (include carrier sheet)6 mm or less (including carrier sheet) |
|
Feeding Capacity |
80 sheets |
|
Document size - Plain Paper (A4 / F4 / LTR) |
ADF -- Width: 51 – 216 mm Length: 89 – 356 mm Flatbed Width: 216 mm Length: 356 mm |
|
Document size - Long Document Mode |
Up to 5,588 mm (200dpi) |
|
Document size - Postcard |
Width: 88.9 – 108 mm Length: 127 – 152 mm |
|
Document size - Business card |
Width: 50 – 55 mm Length: 85 – 91 mm |
|
Document size - Card (ISO/IEC compliant) |
54 x 86 mm (Horizontal feeding only. Embossed cards can be scanned) |
|
Document size - Passport |
88 x 125 mm (ISO standard) When scanning, be sure to open the passport and insert it in the provided carrier sheet (for passports) beforehand. |
|
Document size - Plastic card |
- |
|
Document size - Magnetic card |
- |
|
|
SCAN |
|
Light source |
LED (red, green and blue) |
|
Maximum Resolution |
600dpi |
|
Scan Resolution |
150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi |
|
Scanner Element |
CIS |
|
Scanner Type |
Desktop sheetfed scanner |
|
Scanning Modes |
Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color. |
|
Scanning Side |
Simplex / Duplex |
|
Scanning speed |
A4 / LTR, Portrait, 200dpi: Black and White: 60ppm (simplex) / 120ipm (duplex) Grayscale: 60ppm (simplex) / 120ipm (duplex) Colour: 60ppm (simplex) / 120ipm (duplex) |
|
Suggested Daily Volume (Scans) |
7000 |
