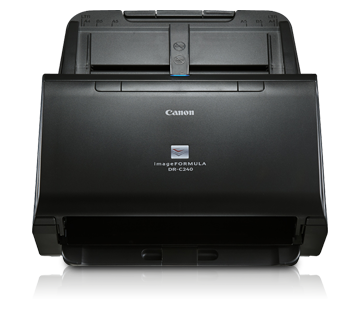

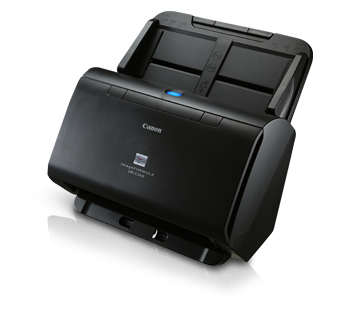

Canon Document Scanner, Canon DR-C230
Ability to handle a wide variety of documents and flexible scanning solution to increase work efficiency.The DR-C240 / C230 is a high-speed scanning solution with a feeder which can hold up to 60 sheet of paper. This powerful scanner can load different sizes and process various type of documents, including thin paper, postcards, and even passports. It is suitable for scanning a huge number of documents quickly and easily.
- Feeder capacity: 60 sheets
- Speed:
DR-C240: up to 45ppm / 90ipm
DR-C230: up to 30ppm / 60ipm - Up to 600 dpi in scanning resolution
Features
Upgraded feeding mechanism
To improve the efficiency of DR-C240 / C230. It is using a reliable paper feeding mechanism, a winning feature from Canon's DR-M160II. This mechanism allows users to seamlessly capture and convert large amount of paper-based document into usable, digital formats and reduce the tendency of paper skewing, which often takes place when users scan a batch of mixed sized documents at one time
To improve the efficiency of DR-C240 / C230. It is using a reliable paper feeding mechanism, a winning feature from Canon's DR-M160II. This mechanism allows users to seamlessly capture and convert large amount of paper-based document into usable, digital formats and reduce the tendency of paper skewing, which often takes place when users scan a batch of mixed sized documents at one time
Fast, reliable scanning
The DR-C240 / C230 scanner provide a wide range of document scanning, from small business card to standard A4 sizes, as well as larger A3 and A2 sizes made possible with the Folio function. In addition users are able to scan passport* as easily as they would for standard A4 document.
*Carrier Sheet is needed for scanning of passport
The DR-C240 / C230 scanner provide a wide range of document scanning, from small business card to standard A4 sizes, as well as larger A3 and A2 sizes made possible with the Folio function. In addition users are able to scan passport* as easily as they would for standard A4 document.
*Carrier Sheet is needed for scanning of passport
Easy to use
Start, stop and resume scanning operations simply with the easy-to-find buttons located at the front of the scanner. The CaptureOnTouch feature allows you to register a job and assign it to the start button enabling the quick execution of frequently used scanning operations.
Start, stop and resume scanning operations simply with the easy-to-find buttons located at the front of the scanner. The CaptureOnTouch feature allows you to register a job and assign it to the start button enabling the quick execution of frequently used scanning operations.
Specification
Find out more about the Canon DR-C230 its features and what it can do.
|
|
GENERAL |
|
Bundled Software |
ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, VRS |
|
Dimensions (W x D x H) |
Feed tray and eject tray closed: 291 × 253 × 231 mm Feed tray and eject tray open: 291 x 603 x 363 mm |
|
Ejection pockets |
- |
|
Interface |
Hi-Speed USB 2.0 |
|
MICR |
- |
|
On-Board Jogger |
- |
|
Operating Environment |
Temperature: 10°C to 32.5°C Humidity: 25% to 80% RH |
|
Supported Operating System |
Windows/ Mac |
|
Options / Consumables |
Flatbed Scanner Unit 102, Barcode Module, 2D code Module, Exchange Roller Kit, Carrier Sheet (Passport), Carrier Sheet (A4) |
|
Power |
AC100 to 240V |
|
Power Consumption |
Scanning: 19 W, Sleep mode: 1.4 W, Power Turned OFF: less than 0.1 W |
|
Weight |
Approx. 2.8kg |
|
|
SCANNING DOCUMENT |
|
Feeding Method |
Automatic |
|
Document thickness - Plain Paper |
Page separation mode: Weight: 27 – 209 g/m2 Thickness: 0.04 – 0.25 mm Non Separation Mode: Weight: 27 – 255 g/m2 Thickness: 0.04 – 0.3 mm |
|
Document thickness - Postcard |
- |
|
Document thickness - Business Card |
Weight: 380 g/m2 or less Thickness: 0.45 mm |
|
Document thickness - Card (ISO / IEC compliant) |
1.4 mm or less |
|
Document thickness - Passport |
4mm or less (include carrier sheet) |
|
Feeding Capacity |
60 sheets |
|
Document size - Plain Paper (A4 / F4 / LTR) |
Width: 50.8 – 216 mm, Length: 54 – 356 mm |
|
Document size - Long Document Mode |
Up to 3,000 mm |
|
Document size - Postcard |
Width: 89 – 108 mm, Length: 127 – 152 mm |
|
Document size - Business card |
Width: 51 – 55 mm, Length: 85 – 91 mm |
|
Document size - Card (ISO/IEC compliant) |
54 x 86 mm (Horizontal feeding only. Embossed cards can be scanned) |
|
Document size - Passport |
88 x 125 mm (ISO standard) When scanning, be sure to open the passport and insert it in the provided carrier sheet (for passports) beforehand. |
|
Document size - Plastic card |
- |
|
Document size - Magnetic card |
- |
|
|
SCAN |
|
Light source |
LED (red, green and blue) |
|
Maximum Resolution |
600 dpi |
|
Scan Resolution |
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
|
Scanner Element |
CIS |
|
Scanner Type |
Desktop sheet-fed scanner |
|
Scanning Modes |
Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II (for Windows only), 256-level gray, 24-bit colour |
|
Scanning Side |
Simplex / Duplex |
|
Scanning speed |
DR-C240 - A4 / LTR, Portrait, 200dpi: Black and White: 45ppm (simplex) / 90ipm (duplex) Grayscale: 45ppm (simplex) / 90ipm (duplex) Colour: 30ppm (simplex) / 60ipm (duplex) DR-C230 - A4 / LTR, Portrait, 200dpi: Black and White: 30ppm (simplex) / 60ipm (duplex) Grayscale: 30ppm (simplex) / 60ipm (duplex) Colour: 30ppm (simplex) / 60ipm (duplex) |
|
Suggested Daily Volume (Scans) |
DR:C240: 4,000 DR:C230: 3,500 |
