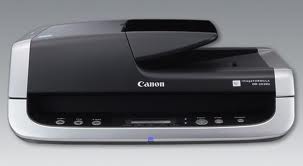

Enhance the management of the documents in your office with the OCR Document Scanning Canon DR-2020U’s fast and easy scanning operation and versatile paper handling capabilities - helping reduce costs for business and improve profitability.

Type:Desktop ADF (Automatic Document Feeder) / flatbed scanner
Document Feeding :Automatic sheet feeding / flatbed
Document size
Width ADF:   140 - 216mm (5.5 - 8.5in.)
Flatbed: 216mm (8.5in.)
max. Business Card Feeder:   49 - 55mm (1.9 - 2.2in.)
Length: ADF: 100 - 356mm (3.9 - 14.0in.)
Flatbed: 297mm (11.7in.)
max. Business Card Feeder:   85 - 91mm (3.3 - 3.6in.)
Document thickness and weight :0.06 - 0.15mm, 52 - 128g/m2 (13 - 32lb. bond)
Card size and thickness
Feeding capacity :5.0mm stack including curls or 50 sheets of 80g/m2
Scanning element :CCD (Charge-Coupled Device)
Light Source :CCFL (Cold-Cathode Fluorescent Lamp)
Scanning Side  :Simplex / Duplex / Skip Blank Page
Scanning Modes :Black and White, Error Diffusion, Advanced Text Enhancement (I/II), 256-level Grayscale, 24-bit Colour
Scanning Resolutions :100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Scanning speed : (A4 / LTR, Portrait, 200dpi)
Black and White Simplex: 20ppm
Duplex: 40ipm
256-level Grayscale
Simplex: 20ppm
Duplex: 40ipm
24-bit Colour   Simplex: 20ppm
Duplex: 40ipm
Interfaces :Hi-Speed USB 2.0
Scanner driver :ISIS / TWAIN
Software : ISIS / TWAIN Driver, CaptureOnTouch, CapturePerfect 3.0, Adobe Acrobat Std, PaperPort, OmniPage, Biz Card Reader
Useful functions :Double Feed Detection, User Registration, Advanced Text Enhancement, Skip Blank Page, Prescan, Auto Paper Size Detection, eskew, Batch Separation, Text Orientation Recognition, Edge Enhancement, Preset Gamma Curve, Dropout Color (R/G/B), Color Enhancement (R/G/B), Border Removal, Punch Hole Removal, Separate Front & Back settings (Contrast / Brightness / Gamma correction, etc.)
Power requirements :  AC100 - 240V (50 / 60Hz)
Power Consumption   Scanning: Max. 33.0W
Sleep mode: Max. 3.7W
Power Turned Off: 0.5W
Operating Environment :10 - 32.5°C (50 - 90.5°F)
Humidity: 20 - 80% RH
Dimensions (W x D x H) With paper guide closed: 440 x 400 x 180mm (17.3 x 15.8 x 7.1in.) *Without ADF cable
Weight :Approx. 7.8kg (17.2lb.)
Options / Consumables :Feed Roller Unit, Separation Pad.

Specifications are subject to change without notice.
