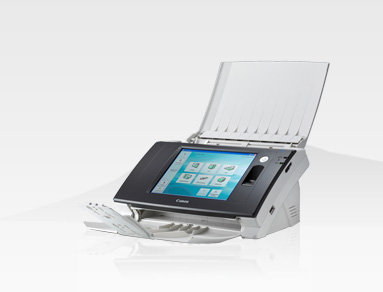

Canon ScanFrost 300 / 300P
Network Document Scanner Canon
Main Features
This
fast, compact, colour network scanner is designed to increase productivity and
simplify information sharing. A stylish, robust design makes it ideal for busy
offices or customer-facing environments.
Specification
Type : Sheetfed type network scanner Document feeding:Automatic sheet feeding
Document size Width: 50.8 - 216mm (2 - 8.5in.)
Length: 53.9 - 355.6mm (2.1 - 14in.)
Document thickness and weight Continuous feeding: 14 - 57lb bond (52 - 209g/m2),(0.06 - 0.25mm)
Manual feeding: 11 - 57lb bond (40 - 209g/m2),(0.05 - 0.25mm)
Card size and thickness Size: 53.9 x 85.5mm (2.12 x 3.37in.)
Thickness: no more than 0.76mm (0.03in.), cards with embossed letters are supported
Feeding capacity :Up to 50 sheets of good quality paper or up to 4.8mm (0.19in.) high (maximum)
Scanning element :1-line CMOS CIS
Light source : LED (red, green and blue)
Scanning side :Simplex / Duplex
Scanning modes :Black and White, Error Diffusion, Advanced Text Enhancement II, 256-level Grayscale, 24-bit Colour
Scanning resolutions :100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Scanning speed:(A4 / LTR, Vertical, 200dpi) Black and White: ScanFront 300: 30ppm (Simplex),60ipm (Duplex)
ScanFront 300P: 30ppm (Simplex),60ipm (Duplex)
Grayscale: ScanFront 300: 30ppm (Simplex),56ipm (Duplex)
ScanFront 300P: 30ppm (Simplex),60ipm (Duplex)
Colour: ScanFront 300: 25ppm (Simplex),25ipm (Duplex)
ScanFront 300P: 25ppm (Simplex),40ipm (Duplex)
Useful functions :Ultrasonic Double Feed Detection (ScanFront 300P only), Automatic Page Size Detection, Deskew, Skip Blank Page, Colour Dropout / Enhance Colour, Text Orientation Recognition, Remove Bleed-Through, Folio,Automatic Colour Detection, Long Document Scanning
Operation panel :8.4 inches TFT Liquid Crystal Display with Touch Panel
Fingerprint sensor :Optical Sweep Type Sensor (ScanFront 300P only)
Interfaces :Hi-Speed USB 2.0 x 4, LAN 10BaseT / 100BaseTX connector
(with LED to show connection)
Power requirements : AC200 - 240V (50 / 60Hz)
Power consumption Scanning:29W
Sleep mode: 1W
Operating environment :10 - 32.5ºC (50 - 90.5ºF)
Humidity: 20 - 80% RH
Dimensions (W x D x H) Feed trays closed: 310 x 220 x 161mm (12.2 x 8.6 x 6.3in.)
Weight :Approx. 3.6kg, excluding AC adapter
Optionals / Consumables:Exchange Roller Kit
Specifications are subject to change without notice.
• Actual scanning speed may vary depending on your system configuration and PC
