44 inch A0+ Scanning Machine For HP A0 Plotter

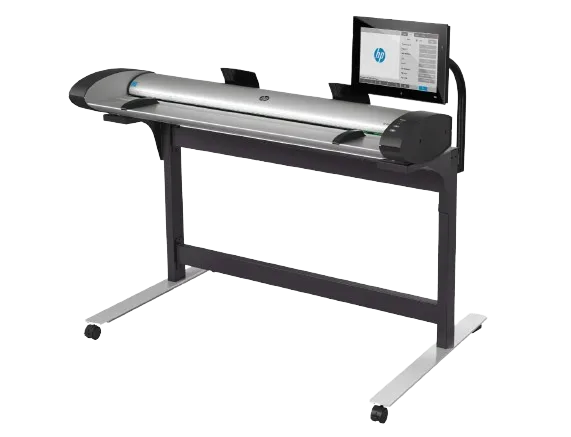

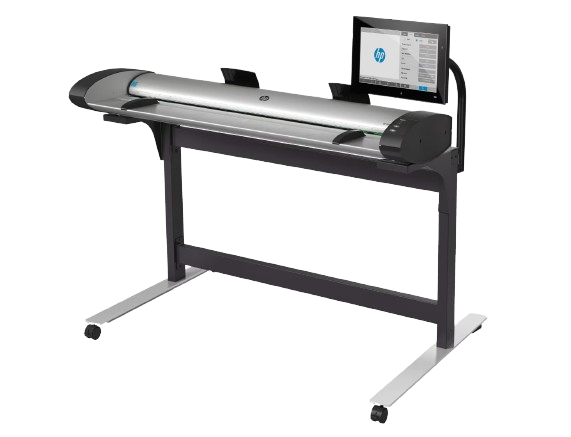

HP SD Pro 2 44 inch Scanner
ACCELERATE—Speed up production and drive results
- Accomplish more with incredible speeds—scan 9 inches/sec (22.8 cm/sec) in color, 18 inches/sec (45.7 cm/sec) in grayscale.
- Reproduce AEC/CAD drawings, blueprints, maps with crisp lines and fine detail using CIS scanning technology.
- Protect your data with advanced security—set up a password to scan to USB and access advanced settings.
- TECHNICAL SPECIFICATION
- BROCHURE
|
Scan and copy |
Scan speed Color: up to 22.8 cm/sec Grayscale: up to 45.7 cm/sec Resolution 1200 dpi Technology CIS scanning technology Scan format PDF, PDF/A, TIFF, JPEG, JPEG2000, DWF, multi-page PDF generation Scan destinations File, email, USB, HDD, network folder, FTP, print Settings Print mode, output size, paper type, copies, page order, collate, printer output destination (folder, stacker, bin), folding style selection (only available when folder accessory is available and supported by the HP large-format printer), paneling, tiling, nesting, reprint Maximum scan width 1118 mm Applications Line drawings; Renderings; Presentations; Maps; Orthophotos |
|
Media |
Handling Straight-through scan paper path for sheet and cardboard originals. Face-up, front entry, rear exit, rewind to front, use document return guide for front-return. Types Non-abrasive paper, sepia, blueprints, plastic, plastic laminate, foam board, cardboard, newspaper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) Handling Straight-through scan paper path for sheet and cardboard originals. Face-up, front entry, rear exit, rewind to front, use document return guide for front-return. Types Non-abrasive paper, sepia, blueprints, plastic, plastic laminate, foam board, cardboard, newspaper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) Maximum media width 1168 mm Maximum media thickness 2 mm width 1168 mm Maximum media thickness 2 mm |
|
Panel PC |
User interface 15.6" (396-mm) large touchscreen to preview and enhance images Embedded operating system Windows 10 Processor Intel Core i5 Memory 8 GB DDR4 Hard disk 256 GB SSD |
|
Connectivity |
Interfaces Gigabit Ethernet (1000Base-T), USB 3.1 gen 1 (3+1) and USB 2.0 (1) rear Drivers Windows drivers for compatible HP PageWide XL and HP DesignJet Printers |
|
Dimensions (W x D x H) |
Scanner 1530 x 930 x 1660 mm Shipping 1500 x 680 x 710 mm |
|
Weight |
Scanner 60 kg Shipping 85 kg |
|
What's in the box |
HP SD Pro 2 44-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, maintenance sheet, copy/scan software, documentation software, Ethernet cable, USB cable, power cords |
|
Environmental ranges |
Operating temperature 5 to 35°C Operating humidity 20 to 80% RH Storage temperature -25 to 55º°C |
|
Acoustics |
Sound pressure 62 dB(A) (operating), <30 dB(A) (idle), <30 dB(A) (sleep) Sound power 6.4 B(A) (operating), <3.3 B(A) (idle), <3.3 B(A) (sleep) |
|
Power |
Consumption 47 W (scanning), 32 W (ready), 1.8 W (sleep) Requirements Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz, 5 A max |
|
Certification |
Safety USA and Canada (UL certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) Electromagnetic Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Russia (EAC) Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT |
|
Warranty |
One-year limited hardware warranty |
