42 inch Thick Document Scanner For HP A0 Printer

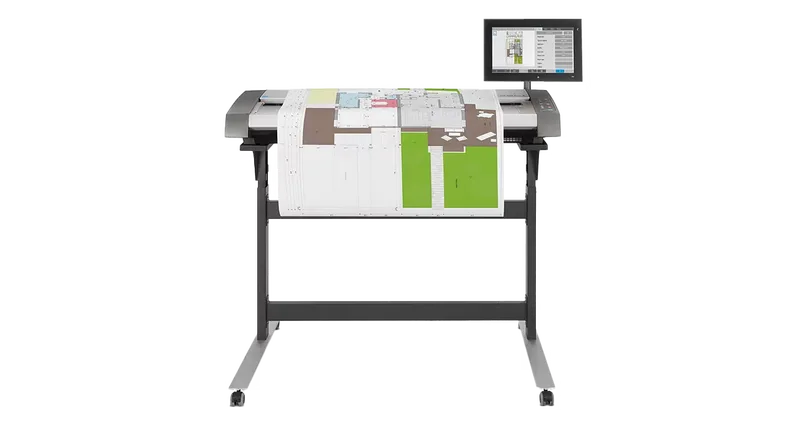

HP HD Pro 2 42-in Scanner
GROW
- Go beyond. Scan in HD regardless of the condition of your original. Produce scans up to 1067 mm (42 inches) and 1200 dpi, even on thick media.¹ Easily scan to multiple destinations and deliver exceptional results with CCD scanning technology.
- This HD scanner delivers incredible scanning and processing speeds. Feature enhancements—ideal for demanding production environments—help accelerate your performance.
- Work effectively with a seamless, secure workflow. This scanner integrates perfectly with HP printers, simplifying maintenance of the complete solution. Avoid reprints with intuitive touchscreen. Secure your workflow with advanced security features.
- TECHNICAL SPECIFICATION
- BROCHURE
|
Scan and copy |
Scan speed Color: up to 33 cm/sec Grayscale: up to 33 cm/sec Resolution 1200 dpi Technology CCD scanning technology and LED-based illumination system Data capture (color/mono) 48-bit/16-bit Scan format PDF, PDF/A, TIFF, JPEG, JPEG2000, DWF, CALS (B&W), multi-page PDF generation Scan destinations File, email, USB, HDD, network folder, FTP, print Settings Type of original, image crop and align preview, lightness, saturation and RGB controls, white point and black point adjust, sharpen/blur, mirror copy, enlarge/reduce, paneling, tiling, nesting, accounting, batch, multipage PDF generation, invert, collate copy with reprint Maximum scan width 1067 mm |
|
Applications |
Digital fine art; Graphics design; Line drawings; Maps; Orthophotos; Photos; Renderings; Presentations |
|
Media |
Handling Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media. Face-down, front entry, rear exit, rewind to front, use document return guide for front-return. Automatic high adjustment of scanner bridge for thick originals up to 15 mm (0.6 in) thickness. Types Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper. Varying condition documents: old, delicate, folded, creased, crumpled, damaged originals (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) Maximum media width 1118 mm Maximum media thickness 15 mm |
|
Panel PC |
User interface 15.6" (396-mm) large touchscreen to preview and enhance images Embedded operating system Windows 10 Processor Intel Core i5 Memory 8 GB Hard disk 256 GB |
|
Connectivity |
Interfaces Gigabit Ethernet (1000Base-T), USB 3.1 gen 1 (3+1) and USB 2.0 (1) rear Drivers Windows drivers for compatible HP PageWide XL and HP DesignJet Printers |
|
Dimensions (W x D x H) |
Scanner 1530 x 930 x 1660 mm Shipping 1910 x 680 x 800 mm |
|
Weight |
Scanner 71 kg Shipping 118 kg |
|
What's in the box |
HP HD Pro 2 42-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, copy/scan software, documentation software, Ethernet cable, USB cable, power cords |
|
Environmental ranges |
Operating temperature 5 to 35ºC Operating humidity 20 to 80% RH Storage temperature -25 to 55ºC |
|
Acoustics |
Sound pressure 48 dB(A) (operating), <22 dB(A) (idle), <22 dB(A) (sleep) Sound power 6.4 B(A) (operating), <3.9 B(A) (idle), <3.9 B(A) (sleep) |
|
Power |
Consumption 130 W (scanning), 39 W (ready), < 1 W (sleep) Requirements Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz, 5 A max |
|
Certification |
Safety USA and Canada (UL certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) Electromagnetic Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Taiwan (BSMI), Russia (EAC) Environmental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT |
|
Warranty |
One-year limited hardware warranty |
