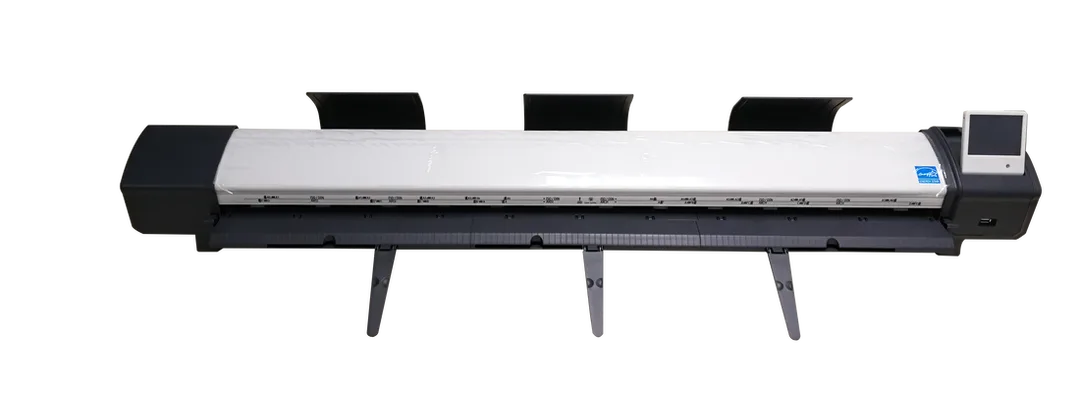

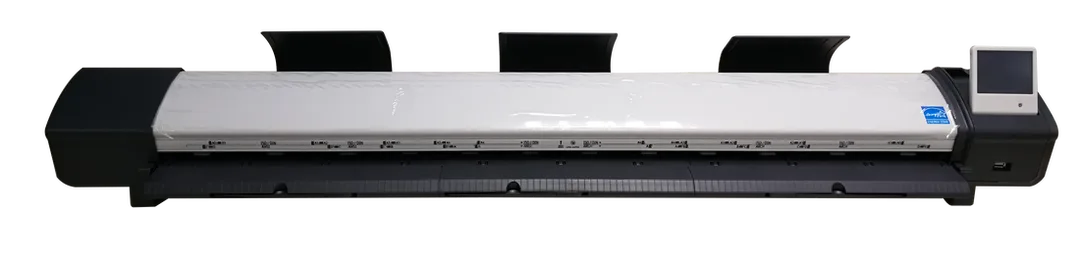

Lowest Price AO Size Plan Scanner (36 inch)

Table Top A1 A0 Scanner Colortrac L36e

Colortrac L36ei is a entry model of A0 size plan scanner, it is a lowest price a0 scanner. Able to scan A1 A0 Plan Drawing.

Key Features:

Scan direct to USB stick or to a network via a PC using the Ethernet connection
User-friendly interface with quick and easy navigation
Compact 36” design with lightweight scanner takes up minimal space and enables easy set up
Single Sensor with multiple LED illumination for excellent line definition and accuracy
Up to 3.0 inches per second scanning; 600 dpi optical resolution
Scan to TIFF, PDF and JPEG up to 2.27 m in length
Media thickness up to 0.5mm

Specification:

Technology: SingleSensor with multiple LED illumination

Scan speed: 300 / 600 dpi Standard 1inch/sec colour, 3 inches/sec mono

Scan Modes:
Scan to USB Thumb Drive: TIFF (No ScanApp Le), JPG, PDF, M-PDF (ScanAppLe available)
Scan to Network PC: TIFF, JPEG, PDF, TIffG4, M-PDF
Scan Accuracy: 0.2% +/-1 pixel
Resolution: Maximum: 600 dpi, Optical: 600 dpi

Maximum Image Width: 36" / 914.4 mm
Maximum Media Width: 38" / 965.2 mm
Maximum scan length: 109” / 2768 mm
Maximum & Minimum Media Thickness: Min = 0.07 mm, Max = 0.5 mm

Control Panel User Interface: 3" touchscreen (touch pen included)

Scanner Interface: Ethernet 10 / 100 / 1000 Base-T / TX

Scan to USB: USB2, 128GB FAT32

Scan to Network PC: L Scan App, Sets scan directory and file type

OS compatibility: Windows 7 / 8. x (32 / 64bit)

Included Software: L Scan App software

Physical Dimensions: 1238 (W) mm x 146 (D) mm x 131 (H) mm

Weight 6.56 kg

Operating Environments:
Temperature: 10-35 °C
Humidity: 10-90 %

Scanner Power Consumption
Standby (sleep): 0.05W
Idle: 10.20W
Scanning: 19.40W

Image Enhancement: Brightness, B&W Threshold, White Point/Black Point Adjustment

Controller: Built In

What’s In The Box?
