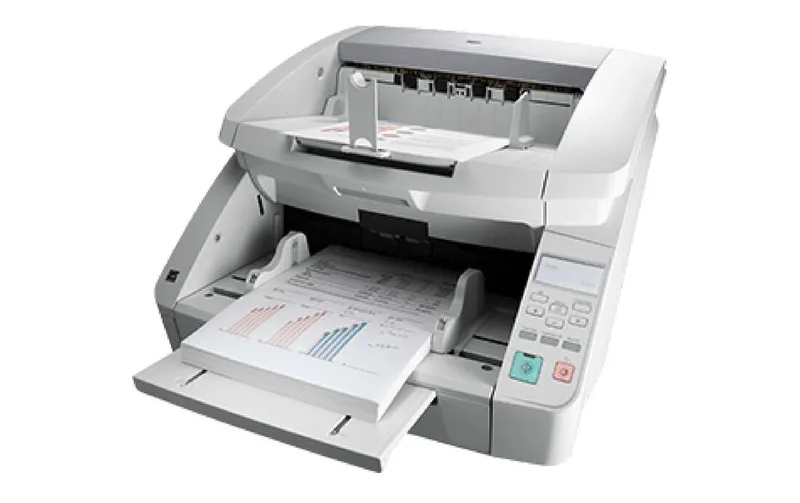

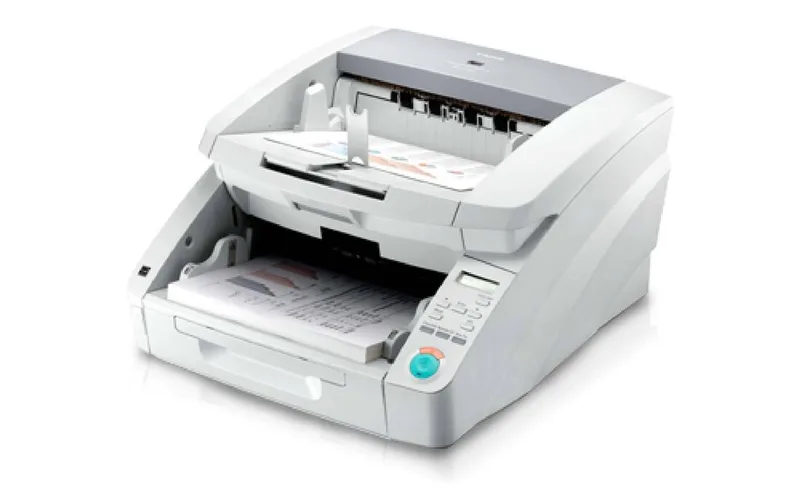

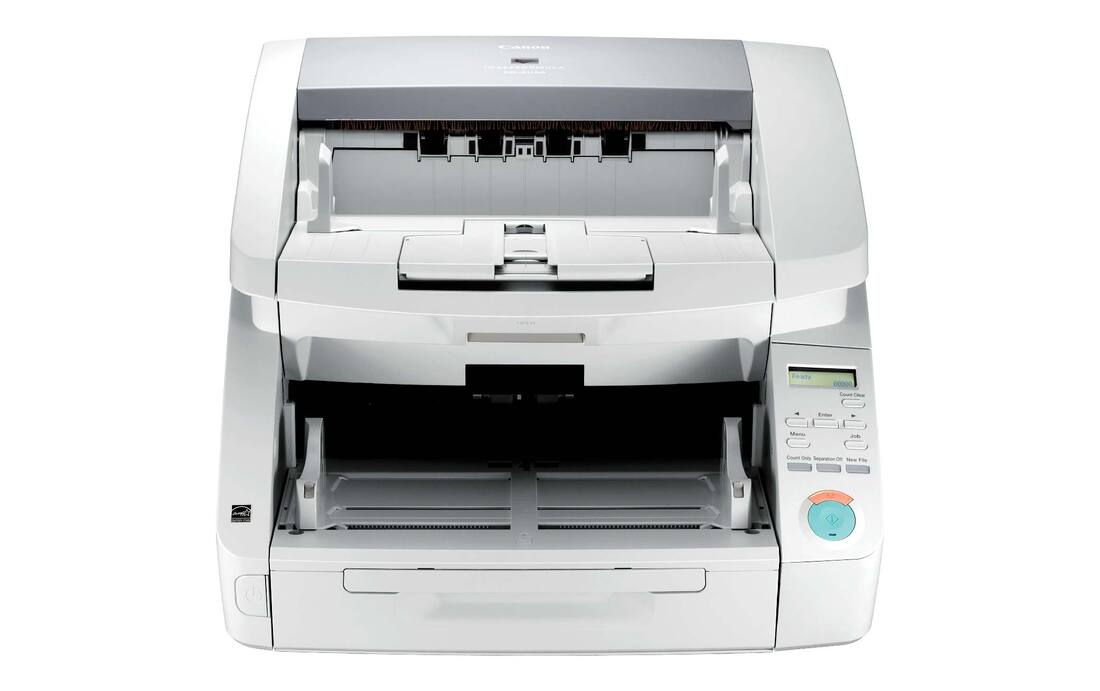

Business Scanner Paper Scanning Machine Canon DR-G1100 is high speed and high volume document scanner that delivers high-speed scanning without compromising on reliability or quality. Whether on its own or as a complement to your document management system, the Canon DRG1100 / Canon DRG1130 will be a welcome addition to your office.

• Connects with USB 2.0
• Speed:
  Canon DR-G1130: up to 130ppm / 260ipm (landscape)
  Canon DR-G1100: up to 100ppm / 200ipm (landscape)
• Scan size: up to A3 size scanner
• 500 sheets scanner

A Reliable Workhorse
High Speed Scanner Canon DR-G1100 / Canon DR-G1130 comes out of the box with a host of highly stable and reliable features. Our patented Ultrasonic Double Feed and Staple Detection reduces feeding errors, while Rapid Recovery helps to remedy the rare situations when they occur. Solidly built for heavy duty work, the high speed document scanner Canon DR-G1100 / Canon DR-G1130 just keeps going.

​Accelerate Your Productivity
Designed to tackle the heaviest of workloads, the high volume scanner Canon DR-G1100 / Canon DR-G1130 offers accelerated batch processing that is sure to please. Automatic document conversion capabilities combined with an impressive 130 pages per minute scan speed makes it easy for you to complete your tasks quickly and efficiently.

​Efficiency Made Easy
The high speed document scanner Canon DR-G1100 / Canon DR-G1130 is made to make your job easier. The intuitive Control Panel and Job Key helps you to start and complete your tasks, while the Document Feed Tray adjusts itself to the height of the paper batch. All these features and more enable high volume, unattended batch scanning that frees you up to focus on other tasks.

General
Bundled Software   CapturePerfect, Job Registration Tool, VRS
Dimensions (W x D x H)   All tray and extensions closed: 480 × 535 × 315 mm
                                                 All tray and extensions open: 480 × 723 × 390 mm
Ejection pockets   -
Interface   Hi-Speed USB 2.0
MICR   -
On-Board Jogger   -
Operating Environment   Temperature: 10 - 32.5°C
                                                Humidity: 20 - 80% RH
Supported Operating System   Windows
Options/Consumables   Imprinter Unit, Barcode Module, 2D Code Module, Flatbed Scanner Unit 102, Patchcode Decoder, Exchange Roller Kit, Separation Pad
Power   AC220-240V
Power Consumption   Scanning: 94.3 W, Sleep Mode: 1.7 W,
                                          Power Turned OFF: 0 W
Weight   Approx. 22.8kg

Scanning Document
Feeding Method   Automatic or manual
Document thickness - Plain Paper   Normal feeding:
                                                                   Weight: 20 – 209 g/m2
                                                                   Thickness: 0.04 – 0.25 mm
                                                                   Non separation feeding:
                                                                   Weight: 20 – 255 g/m2
                                                                   Thickness: 0.04 – 0.30 mm
Document thickness - Postcard   128 – 255 g/m2
                                                               0.15 – 0.3 mm
Document thickness - Business Card   128 – 255 g/m2
                                                                         0.15 – 0.3 mm
Document thickness - Card (ISO/IEC compliant)   -
Document thickness - Passport   -
Feeding Capacity   500 sheets
Document size - Plain Paper (A4/LTR)   Width: 50.8 –305 mm,
                                                                           Length: 70 – 432 mm
Document size - Long Document Mode   Up to 3,000 mm
Document size - Postcard   Width: 89 – 108 mm,
                                                    Length: 127 – 152 mm
Document size - Business card   Width: 51 – 55 mm,
                                                             Length: 85 – 91 mm
                                                             (Vertical feeding only)
Document size - Card (ISO/IEC compliant)   -
Document size - Passport   -
Document size - Plastic card   -
Document size - Magnetic card   -

Scan
Light source   LED (red, green and blue)
Maximum Resolution   600 dpi
Scan Resolution   150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Scanner Element   3-line CIS
Scanner Type   Desktop sheet-fed scanner
Scanning Modes   Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement  II, 256-level Grayscale, 24-bit Colour
Scanning Side    Simplex / Duplex
Scanning speed   DR-G1110, A4 / LTR, Portrait, 200dpi:
                                 Black and White: 75ppm (simplex) / 150ipm (duplex)
                                 Grayscale: 75ppm (simplex) / 150ipm (duplex)
                                 Colour: 75ppm (simplex) / 150ipm (duplex)

                                 DR-G1130, A4 / LTR, Portrait, 200dpi:
                                 Black and White: 100ppm (simplex) / 200ipm (duplex)
                                 Grayscale: 100ppm (simplex) / 200ipm (duplex)
                                 Colour: 100ppm (simplex) / 200ipm (duplex)

                                 DR-G1110, A4, Landscape, 200dpi:
                                 Black and White: 100ppm (simplex) / 200ipm (duplex)
                                 Grayscale: 100ppm (simplex) / 200ipm (duplex)
                                 Colour: 100ppm (simplex) / 200ipm (duplex)

                                 DR-G1130, A4, Landscape, 200dpi:
                                 Black and White: 130ppm (simplex) / 260ipm (duplex)
                                 Grayscale: 130ppm (simplex) / 260ipm (duplex)
                                 Colour: 130ppm (simplex) / 260ipm (duplex)

                                 *Actual scanning speed may vary depending on your system configuration and PC
                                 Suggested Daily Volume (Scans)25,000 (DR-G1100);
                                 30,000 (DR-G1130)

Specifications are subject to change without notice

1. Scanning speed may vary depending on PC environment, scanner settings and other factors. Specifications are subject to change without notice
