WiFi Network High Speed Scanner

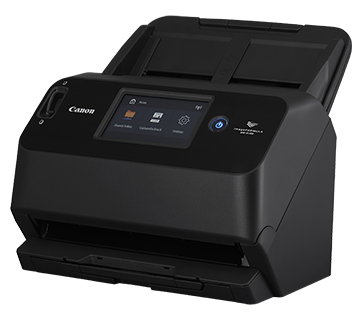

Canon imageFORMULA DR-S150

Connect the imageFORMULA DR-S150 and share its capabilities with every computer on the network. Work from anywhere in the office – and even on your smart device. The large, intuitive interface of the color touch panel makes it easy to complete your tasks. Simply touch the job title and execute the process you want. It is so easy to operate, your co-workers can complete tasks right from the first use.

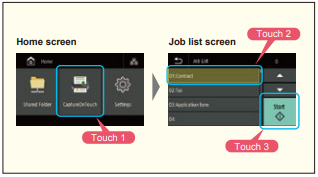

Easy menu operation

Intuitive touch panel

Scan settings and storage folders can be registered in advance, so you just have to select the procedures you want from the touch panel. This shortens and simplifies the process, reduces mistakes and lightens the administrator’s workload.

Standalone capable

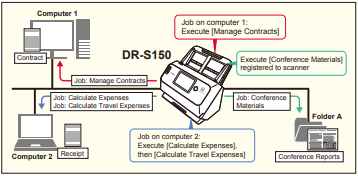

Use the touch panel to select and execute jobs registered on computers or smart devices on your network. There’s no need to return to the computer when the job is complete. You can even specify a shared folder for storing data, so you can do all your scanning work at the scanner, without using a computer.

Features

Productivity - Speed up document workflows with 45ppm/90ipm high speed colour scanning and 60 sheet ADF

Easy operation - Large colour touch screen with one-touch configurations and direct Network PUSH scan function

Automatic processing - Advanced intelligent processing with OCR, and Barcode /2D Code recognition

Reduced IT and operational costs - Centralised scanner and user profile management with built-in CaptureOnTouch Admin scanner management software

Connection options - Choose the connection option that suits your environment from LAN, WiFi or USB

Robust design - A professional scanner that can handle heavy workloads up to 6,000 scans per day

Paper handling - Heavy duty rollers for reliable feeding of wide range documents, including passports and ID cards

Added security - Simple 4-PIN code access, and with CaptureOnTouch Admin software supporting various methods for user log-on authentication, including NFC option

Product Specifications

Type	TypeDesktop Type Sheet Fed Scanner
Scanning Sensor Unit	CMOS CIS 1 Line Sensor
Optical Resolution	600dpi
Light Source	RGB LED
Scanning Side	Front / Back / Duplex
Interface	USB 3.2 Gen1x1/USB 2.0, IEEE802.11b/g/n, 10Base-T/100Base-TX/1000Base-T
Dimensions (WxDxH)	Trays Closed: 291 x 247 x 242 mm Trays Opened: 291 x 600 x 378 mm
Weight	Approx. 3.3kg
Power Requirements	AC 100-240V (50/60Hz)
Power Consumption	Scanning: 22.5W or less Sleep Mode: 3.4W or less Power Turned Off: 0.1W or less
Operating Environment	10 - 32.5 °C Humidity: 20 - 80% RH

Scanning Specifications

Black and White	45ppm / 90ipm
Colour	45ppm / 90ipm
Output Resolution	150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Output Mode	Monochrome (Active Threshold, Black & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II), 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle	from 3,500 to 6,000 scans/day

Document Specifications

Width	50.8 - 216mm
Length	54 - 356mm
Thickness	20 - 209g/m² (0.04 - 0.25mm)
Long Document Mode	3000mm Max
Business Card Scanning	Size: 50 x 85mm or larger Thickness: Less than 0.45mm
Plastic Card Scanning	Size: 54 x 86mm Thickness: Less than 1.4mm (Embossed Card is supported)
Passport Scanning	Up to 4mm thick (via carrier sheet)
Paper Separation	Retard Roller Method
Feeder Capacity	60-sheets (80g/m²)

Special Features

Barcode Module (Windows only), 2D Code Module (Windows only), Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation with white blank sheet or patchcode (Windows only), Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length)
