Auto Feed A4 Document Scanner
Fujitsu Ricoh Image Scanner fi-8190 / fi-8290 / fi-8170 / fi-8270 / fi-8150 / fi-8250
Features and Benefits
It provides a superior scanning experience with industry-leading paper handling, image quality and reliability. Compact and sturdy, the scanner achieves duplex scan speeds of 90 ppm/180 ipm, and loads up to 100 sheets at a time, with a capability of scanning up to as many as 13,000 sheets a day. The scanner includes software options, with automated features like blank page removal, image cleanup, autorotation, optical character recognition (OCR), and PDF creation.
- New Automatic Separation Control feature minimizes multi-feeds
- Clear Image Capture ensures color accuracy in documents
- Advanced feeding technology supports scanning thick documents without a carrier sheet, including passports and booklets
- Paper Stream Click Scan software allows for scanning in 3 simple steps
- Dual interface connections, supporting USB 3.2 and Ethernet wired network
- Color LCD Panel for easy operation from the front of the scanner
- PaperStream IP TWAIN and ISIS Driver cleans up images and reduces file size
- Included PaperStream Capture software provides powerful document separation and batch control
- PaperStream Capture Pro software available as an option, allows for meta data extraction, distributed scan stations, and database connectivity

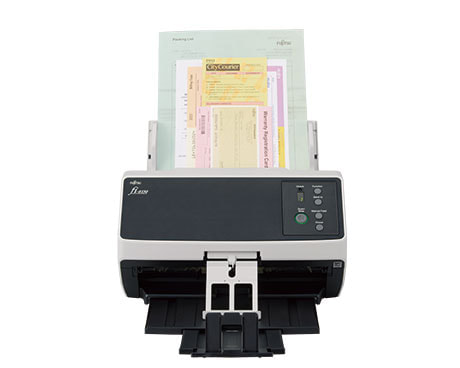

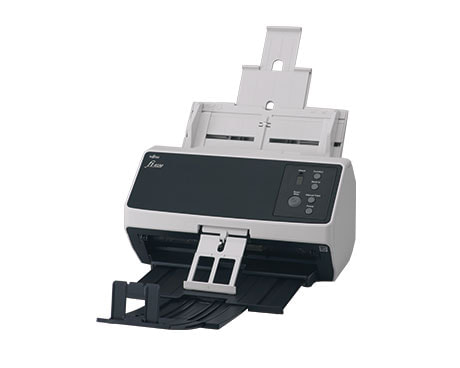

Fujitsu Image Scanner fi-8150
Fujitsu Image Scanner fi-8150
Fujitsu Image Scanner fi-8150

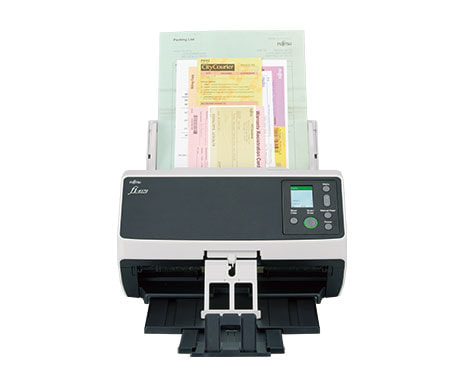

Fujitsu Image Scanner fi-8170
Fujitsu Image Scanner fi-8170
Fujitsu Image Scanner fi-8170

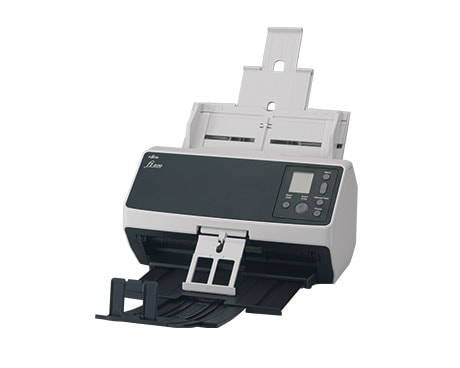

Fujitsu Image Scanner fi-8190
Fujitsu Image Scanner fi-8190

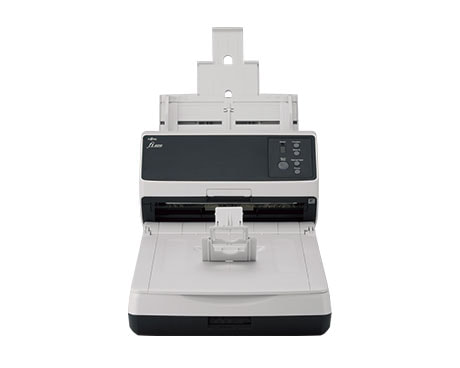

Fujitsu Image Scanner fi-8250
Fujitsu Image Scanner fi-8250

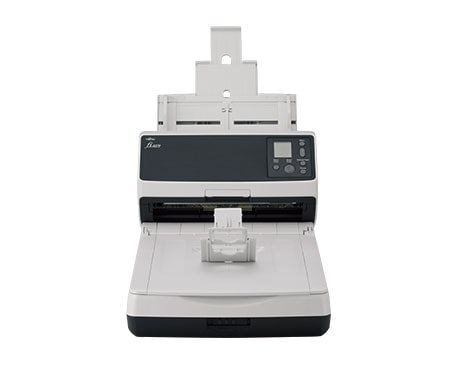

Fujitsu Image Scanner fi-8270
Fujitsu Image Scanner fi-8270
Fujitsu Image Scanner fi-8270

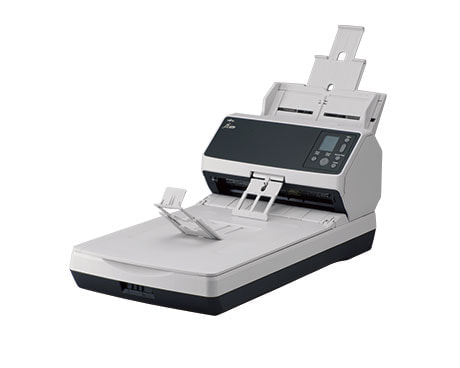

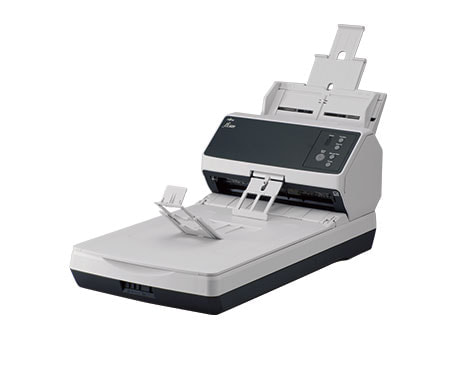

Fujitsu Image Scanner fi-8290
Fujitsu Image Scanner fi-8290
Fujitsu Image Scanner fi-8290
Specification
Product Name
fi-8190 / fi-8290 / fi-8170 / fi-8270 / fi-8150 / fi-8250
Scanner Type
ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Landscape)(Color/Grayscale/Monochrome)
fi-8190
Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)
fi-8290
ADF
Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
fi-8170
Simplex
70 ppm (200/300 dpi)
Duplex
140 ipm (200/300 dpi)
fi-8270
ADF
Simplex: 70 ppm (200/300 dpi)
Duplex: 140 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
fi-8150
Simplex
50 ppm (200/300 dpi)
Duplex
100 ipm (200/300 dpi)
fi-8250
ADF
Simplex: 50 ppm (200/300 dpi)
Duplex: 100 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
Image Sensor Type
fi-8190
CIS x 2 (front x 1, back x 1)
fi-8290
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
fi-8170
CIS x 2 (front x 1, back x 1)
fi-8270
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
fi-8150
CIS x 2 (front x 1, back x 1)
fi-8250
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
Light Source
fi-8190
RGB LED x 2 (front x 1, back x 1)
fi-8290
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
fi-8170
RGB LED x 2 (front x 1, back x 1)
fi-8270
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
fi-8150
RGB LED x 2 (front x 1, back x 1)
fi-8250
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
Optical Resolution
600 dpi
Output Resolution(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors
fi-8190
White / Black (selectable)
fi-8290
ADF: White / Black (selectable)
Flatbed: White (or optional black)
fi-8170
White / Black (selectable)
fi-8270
ADF: White / Black (selectable)
Flatbed: White (or optional black)
fi-8150
White / Black (selectable)
fi-8250
ADF: White / Black (selectable)
Flatbed: White (or optional black)
Document Size
Maximum
215.9 x 355.6 mm (8.5 x 14 in.)
Minimum
48 x 50 mm (1.9 x 2 in.)
Long Page Scanning
6,096 mm (240 in.)
Paper Weight (Thickness)
Paper
20 to 465 g/m² (5.3 to 124 lb)
Booklet
Less than 7 mm (0.276 in.)
Plastic Card
1.4 mm (0.055 in.) or less
ADF Capacity
100 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume
13,000 sheets | 13,000 sheets | 10,000 sheets | 10,000 sheets | 8,000 sheets | 8,000 sheets
Multifeed Detection
Overlap detection (Ultrasonic sensor), Length detection
Paper Protection
Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring | Image monitoring
Interface
fi-8190
USB
USB3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet
10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements
AC 100V - 240V 50/60 Hz
Power Consumption
fi-8190
Operating Mode
30 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8290
Operating Mode
30 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8170
Operating Mode
28 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8270
Operating Mode
28 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8150
Operating Mode
21 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8250
Operating Mode
21 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
Operating Environment
Temperature : 5 to 35 °C (41 to 95 °F)
Relative Humidity : 15 to 80% (non-condensing)
Environmental Compliance
ENERGY STAR®, RoHS
Dimensions (W x D x H)
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.)
Weight
4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb)
Supported Operating System
Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu)
Included Software / Drivers
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, Image Scanner Driver for macOS (ICA), Image Scanner Driver for Linux (SANE), PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin, 2D Barcode for PaperStream
Image Processing Functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
fi-8190 / fi-8290 / fi-8170 / fi-8270 / fi-8150 / fi-8250
Scanner Type
ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Landscape)(Color/Grayscale/Monochrome)
fi-8190
Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)
fi-8290
ADF
Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
fi-8170
Simplex
70 ppm (200/300 dpi)
Duplex
140 ipm (200/300 dpi)
fi-8270
ADF
Simplex: 70 ppm (200/300 dpi)
Duplex: 140 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
fi-8150
Simplex
50 ppm (200/300 dpi)
Duplex
100 ipm (200/300 dpi)
fi-8250
ADF
Simplex: 50 ppm (200/300 dpi)
Duplex: 100 ipm (200/300 dpi)
Flatbed
1.7 seconds (200/300 dpi)
Image Sensor Type
fi-8190
CIS x 2 (front x 1, back x 1)
fi-8290
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
fi-8170
CIS x 2 (front x 1, back x 1)
fi-8270
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
fi-8150
CIS x 2 (front x 1, back x 1)
fi-8250
ADF: CIS x 2 (front x 1, back x 1)
Flatbed: Color CCD X 1
Light Source
fi-8190
RGB LED x 2 (front x 1, back x 1)
fi-8290
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
fi-8170
RGB LED x 2 (front x 1, back x 1)
fi-8270
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
fi-8150
RGB LED x 2 (front x 1, back x 1)
fi-8250
ADF: RGB LED x 2 (front x 1, back x 1)
Flatbed: White LED
Optical Resolution
600 dpi
Output Resolution(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors
fi-8190
White / Black (selectable)
fi-8290
ADF: White / Black (selectable)
Flatbed: White (or optional black)
fi-8170
White / Black (selectable)
fi-8270
ADF: White / Black (selectable)
Flatbed: White (or optional black)
fi-8150
White / Black (selectable)
fi-8250
ADF: White / Black (selectable)
Flatbed: White (or optional black)
Document Size
Maximum
215.9 x 355.6 mm (8.5 x 14 in.)
Minimum
48 x 50 mm (1.9 x 2 in.)
Long Page Scanning
6,096 mm (240 in.)
Paper Weight (Thickness)
Paper
20 to 465 g/m² (5.3 to 124 lb)
Booklet
Less than 7 mm (0.276 in.)
Plastic Card
1.4 mm (0.055 in.) or less
ADF Capacity
100 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume
13,000 sheets | 13,000 sheets | 10,000 sheets | 10,000 sheets | 8,000 sheets | 8,000 sheets
Multifeed Detection
Overlap detection (Ultrasonic sensor), Length detection
Paper Protection
Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring | Image monitoring
Interface
fi-8190
USB
USB3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet
10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements
AC 100V - 240V 50/60 Hz
Power Consumption
fi-8190
Operating Mode
30 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8290
Operating Mode
30 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8170
Operating Mode
28 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8270
Operating Mode
28 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8150
Operating Mode
21 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
fi-8250
Operating Mode
21 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
Operating Environment
Temperature : 5 to 35 °C (41 to 95 °F)
Relative Humidity : 15 to 80% (non-condensing)
Environmental Compliance
ENERGY STAR®, RoHS
Dimensions (W x D x H)
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.)
Weight
4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb)
Supported Operating System
Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu)
Included Software / Drivers
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, Image Scanner Driver for macOS (ICA), Image Scanner Driver for Linux (SANE), PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin, 2D Barcode for PaperStream
Image Processing Functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
