Scanner For Business Card, ID Card, Receipt, A4 Document
Plustek MobileOffice AD480

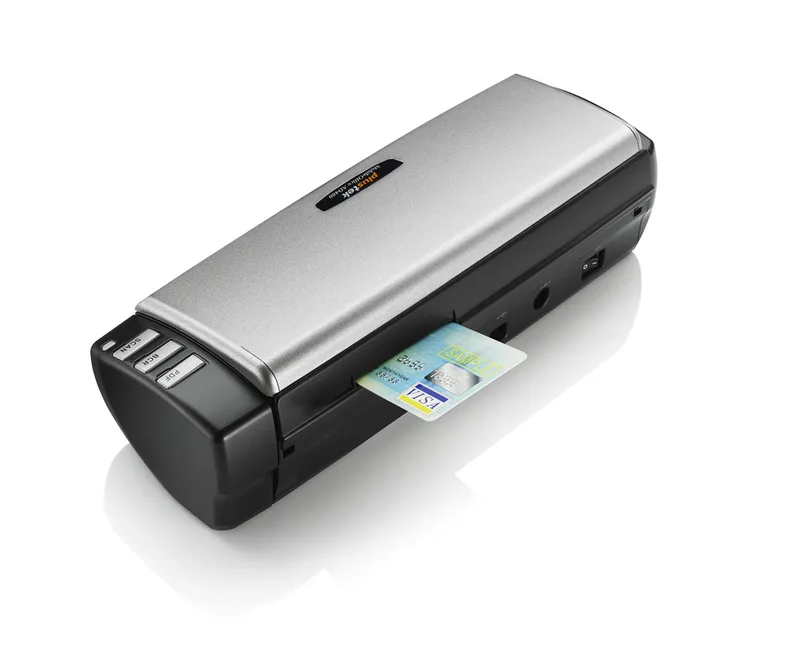

Credit Card Can insert by a special slot, without have to open up the scanner over.

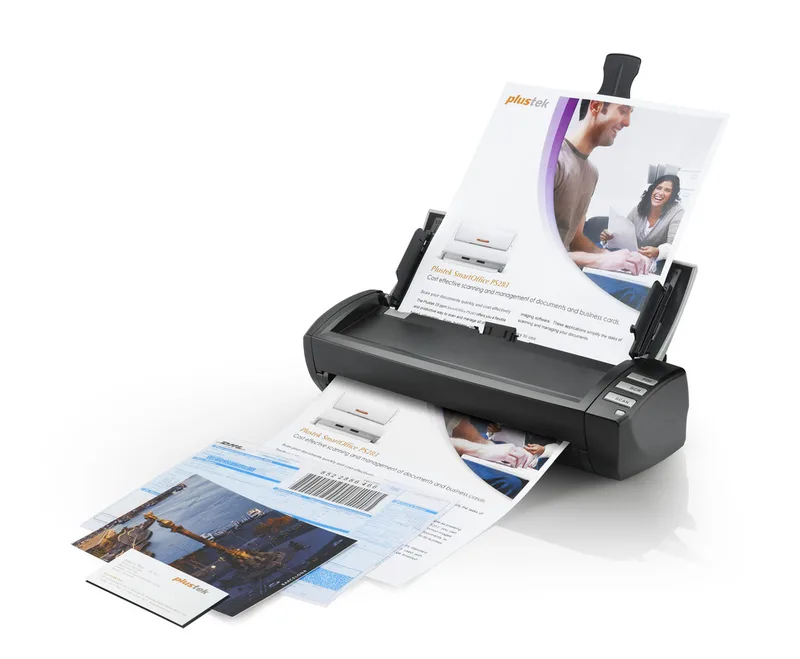

Scanner For Business Card, ID Card, Receipt, A4 Document Plustek AD480 scanner is versatile and robust mobile scanner in its class, designed for home and small offices. With double-sided scanning up to 20ipm and a 20-page ADF capacity users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 500 documents a day. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.
Specification:
Image Sensor: CIS x 2
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
ADF Capacity: 20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
6 Sheets (Business Card)
Scanning Speed: 20 ppm / 40 ipm (Grayscale, 200 dpi, A4)
20 ppm / 40 ipm (B&W, 200 dpi, A4)
20 ppm / 40 ipm (Color, 200 dpi, A4)
Scanning Area (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Acceptable Paper Sizes (W x L) ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 50.8 x 50.8 mm (2" x 2")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness): Paper: 50 g/㎡ to 120 g/㎡
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ): 1500
Roller Lifetime (Scans): 100000
Pad Lifetime (Scans) 20000
Action Button: PDF, BCR, Scan
Power Supply: AC adapter: 24 Vdc/ 0.75 A
Interface: USB 2.0
Net Weight: 1.3 Kgs (2.87 Lbs)
Dimensions (W x D x H): 288.5 x 98 x 75 mm (11.36" x 3.8" x 2.96")
Protocol: TWAIN compliant
OS: Window XP / Vista / 7 / 8 / 10
Hardware Requirements :
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
