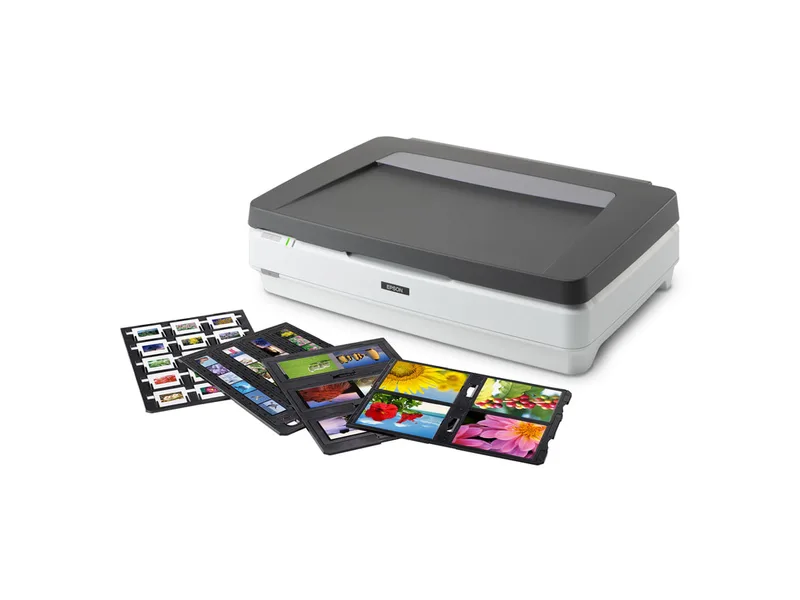

A3 Flatbed Photo Scanner
Epson Expression 13000XL
The Expression 13000XL scanner offers exceptional A3 scanning performance for professionals and organisations. With 2,400 dpi resolution, 3.8 Dmax, 48-bit colour depth, and optional A3 Transparency Unit, it is perfect for scanning photos, maps, architectural plans, and film formats. Advanced imaging and photo restoration software complements the scanner, delivering consistently impressive results.
✔Scan up to A3 size
✔High optical resolution of 2,400 x 4,800 dpi
✔3-colour, 6-line CCD with large pixel size

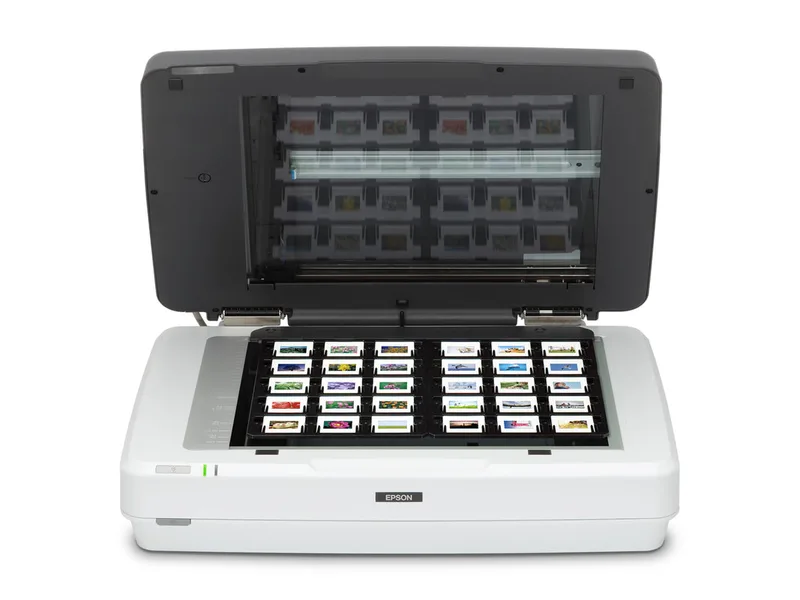

✔Scan file formats from 35 mm film to A3 size transparencies with the A3 Transparency unit
✔Auto Focus optics system function for clearer, sharper images
✔Scan up to A3 size
✔High optical resolution of 2,400 x 4,800 dpi
✔3-colour, 6-line CCD with large pixel size
✔Scan file formats from 35 mm film to A3 size transparencies with the A3 Transparency unit
✔Auto Focus optics system function for clearer, sharper images
- SPECIFICATION
- BROCHURE
|
Scanning |
✔ Scanner Type:A3 Flatbed Colour Image Scanner ✔ Sensor Type:6-line Colour CCD ✔ Scanning Method:Fixed document and moving carriage ✔ Light Source:White LED ✔ Optical Resolution:2,400 x 4,800 dpi ✔ Optical Density:3.8 Dmax ✔ Output Resolution:50 – 6,400 dpi (in 1 dpi increments) ✔ Scanner Bit Depth (Colour): 48-bit input, 24/48-bit output ✔ Scanner Bit Depth (Grayscale): 16-bit input, 8/16-bit output ✔ Scanner Bit Depth (Black & White): 16-bit input, 1-bit output ✔ Max Document Size: 310 x 437 mm (Reflective) 309 x 420 mm (Transparancy) ✔ Film Scanning: 35mm strip film x 48 Frames, 35mm mounted film x 30 Frames, (6 x 18cm) x 6 Frames, (4" x 5") x 8 Frames ✔ Interface: USB 2.0 |
|
Scan Speed |
✔ Reflective Scanning (Monochrome): 300dpi: 12 sec ✔ Reflective Scanning (24 bit Colour): 300dpi: 12 sec ✔ Film Scanning (35mm Positive Film): 1,200 dpi: 57 sec 2,400 dpi: 57 sec ✔ Film Scanning (35mm Negative Film): 1,200 dpi: 61 sec 2,400 dpi: 61 sec |
|
Supported OS and Applications |
✔ Supported OS:Windows 7 / 8 / 8.1 / 10 / 11 Windows Server 2008 / 2012 / 2016 / 2019 / 2022 Mac OS X 10.9 or later ✔ Scanner Driver Compatibility:TWAIN, SANE, WIA, ICA ✔ Bundled Applications: Epson Scan Epson Scan OCR Component LaserSoft Imaging SilverFast Ai Studio (with IT8 Target) ✔ File Format:Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF BMP, PNG |
|
Dimensions and Weight: |
✔ Dimensions (W x D x H): 656 x 458 x 158 mm ✔ Weight: 14.3 kg |
|
Options |
✔ A3 Transparency Unit:Order Code: B12B819221 |
|
Environmental Conditions |
✔ Temperature:Operating: 5 - 35 °C Storage: -20 - 60 °C ✔ Humidity:Operating: 10 - 80 % (No Condensation) Storage: 10 - 85 % (No Condensation) |
|
Power |
✔ Rated Voltage:AC 100 - 240 V ✔ Rated Frequency:50 - 60 Hz ✔ Operating:Approx. 20 W (without the optional A3 Transparency Unit) Approx. 27 W (with the optional A3 Transparency Unit) ✔ Ready:Approx. 6 W (without the optional A3 Transparency Unit) Approx. 12W (with the optional A3 Transparency Unit) ✔ Sleep:Approx. 1 W (without the optional A3 Transparency Unit) ✔ Power Off:Approx. 0.2 W |
