A4 Size Scanner

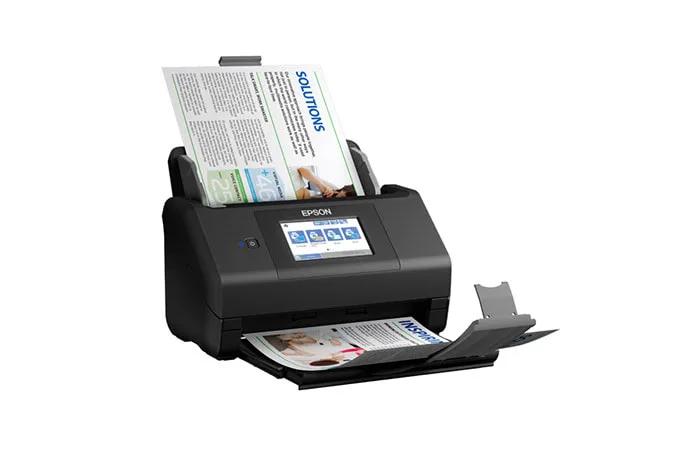

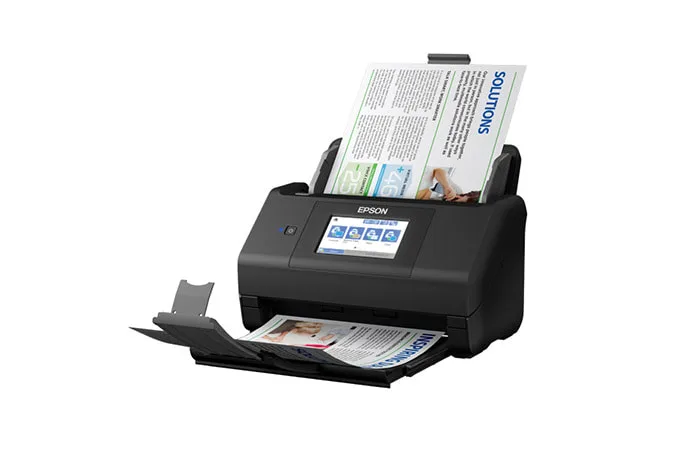

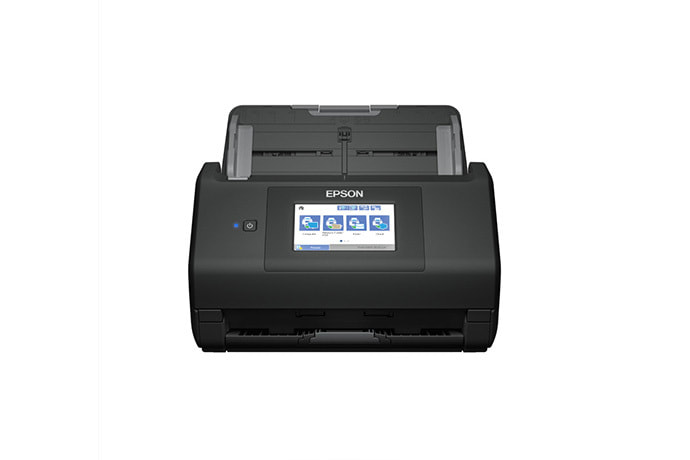

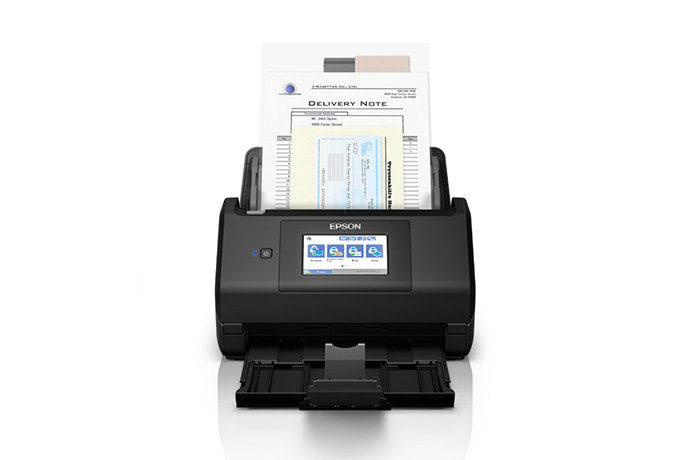

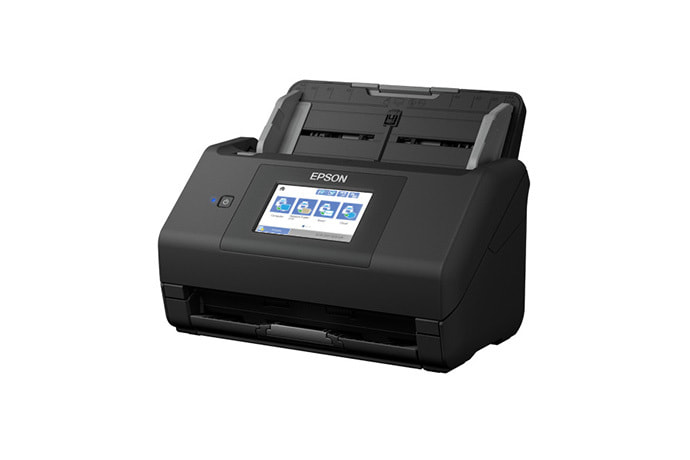

Epson ES-580W Scanner

DESIGNED FOR BUSINESSES, BUILT FOR RELIABILITY

Epson looks into the details and designs equipment for a seamless workflow, like the innovative WorkForce ES-580W. Paired with the Epson Smart Panel app, users can scan and share documents with their workgroup on their mobile devices, enhancing productivity. The Scan-to function allows users to send scanned documents to target destination without the use of a PC, whilst the image sensor glass dirt detection reduces re-scanning due to bad image quality, improving workflow.

Scanning speeds of up to 35 ppm / 70 ipm
Automatic Document Feeder (ADF) of up to 100 sheets
Daily duty cycle of 4,000 pages
One-pass duplex scanning
Wireless connectivity
Compatible with Epson Smart Panel app
Scan-to function without having to use the PC
Paper protection function and image sensor glass dirt detection
Simplify data sharing with Epson ScanWay

Specifications
Brochure
Video

Scanning	Scanner Type: Sheet-fed, one pass duplex colour scanner Sensor Type: Colour Contact Image Sensor (CIS) Scanning Method: Scanning Head Fixed (Document moving) Type scanning Light Source: RGB LED Optical Resolution: 600 x 600 dpi Output Resolution: 50 - 1,200 dpi (in 1 dpi increments) Scanner Bit Depth (Colour): 30-bit input, 24-bit output Scanner Bit Depth (Grayscale): 10-bit input, 8-bit output Scanner Bit Depth (Black & White): 10-bit input, 1-bit output Min Document Size: 50.8 x 50.8 mm Max Document Size: 215.9 x 6096 mm Supported Paper Weight: 27 - 413 g/m2 ADF Capacity: 100 sheets (80 g/m2) Daily Scan Volume: Up to 4,000 sheets / day Interface: USB 3.2 Gen 1, Wi-Fi (802.11 b/g/n), Wi-Fi Direct (max 8 connections) Scan to Destination: Folder, Mail, FTP/SFTP, SharePoint, Cloud (Epson Connect, Evernote, GoogleDrive, Dropbox, Box), USB memory
Scan Speed	Resolution (Colour / Monochrome): 300 dpi: 35 ppm / 70 ipm 600 dpi: 12 ppm / 24 ipm
Supported OS and Applications	Supported OS: Windows 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016 / Server 2019 Mac OS X 10.6.8 or later Scanner Driver Compatibility: TWAIN, SANE, WIA, ICA, ISIS Bundled Applications: Epson Scan 2 (Driver only), Epson ScanSmart, Epson Smart Panel, Pr esto! BizCard, Kofax PowerPDF File Format: Standalone: JPEG, PDF, TIFF Epson ScanSmart: JPEG, TIFF, Multi-TIFF, PDF (Searchable PDF, PDF/A), BMP, PNG
Dimensions and Weight	Dimensions (W x D x H): 296 x 169 x 167 mm Weight: 3.7 kg
Options	Options: Roller Assembly Kit- B12B819671 Carrier Sheet - B12B819051 Cleaning Kit - B12B819291
Control Panel	LCD Screen: 4.3” touch panel LCD
Environmental Conditions	Temperature: Operating: 5 - 35 °C Storage: -25 - 60 °C Humidity: Operating: 15 - 80% (No condensation) Storage: 15 - 85% (No condensation)
Power	Rated Voltage: AC 100 - 240 V Rated Frequency: 50 - 60 Hz Power Consumption: Operating: 13W Ready Mode: 6.7W (USB) / 6.9W (Wi-Fi) Sleep Mode: 1.0W (USB) / 1.4W (Wi-Fi) Power Off: 0.1W
