A3 Scanner For Artwork

Epson DS-70000 Scanner

Epson DS-70000 Scanner
Epson DS-70000 Scanner
Epson DS-70000 Scanner
Epson DS-70000 Scanner
Epson DS-70000 Scanner
Epson DS-70000 Scanner
Epson DS-70000 Scanner
Giving you a Fast and Reliable A3 Scanning Solution

The Epson WorkForce DS-70000 A3 colour scanner that gives you high speed duplex scanning of 140ipm to maximise productivity at work.
  • Scan speed up to 140 ipm
  • 600 DPI scanning
  • Easy File Management software for convenient scans
  • Network connectivity
  • Auto Document Feeder (ADF)
  • Specifications
  • Brochure
  • Video
Scanning
Scanner Type:  A3 flatbed colour image scanner
Sensor Type:  4-line colour CCD
Light Source:  White LED
Optical Resolution:  600 x 600 dpi
Output Resolution:  50 dpi - 4,800 dpi (1 dpi increments), 7,200 dpi and 9,600 dpi
Scanner Bit Depth (Colour):  48-bit input, 24-bit output
Scanner Bit Depth (Grayscale):  16-bit input, 8-bit output
Scanner Bit Depth (Black & White):  16-bit input, 1-bit output
Max Document Size:  297 x 420mm
Output File Formats:  JPEG, TIFF, Multi-TIFF, PDF, BMP
Document Capture Pro (Win): JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX
Scan Speed
Flatbed (Black / Colour):
  • 300 dpi: 4.0 sec / 4.0 sec
  • 600 dpi: 10 sec / 10 sec
ADF Monochrome (Simplex / Duplex):
  • 200 dpi: 70 ppm / 140 ipm
  • 300 dpi: 70 ppm / 140 ipm
  • 600 dpi: 25 ppm / 50 ipm
ADF Colour (Simplex / Duplex):
  • 200 dpi: 70 ppm / 140 ipm
  • 600 dpi: 12 ppm / 24 ipm
ADF Specifications
Scanner Type:  A3 sheet-fed, one-pass duplex scanner
Optical Sensor:  4-line colour CCD
Light Source:  White LED
Optical Resolution:  600 x 600 dpi
Output Resolution:  50 dpi - 1,200 dpi (1 dpi imcrements)
Min Document Size:  68 x 120 mm
Max Document Size:  297 x 2,540 mm
Support Paper Thickness:  35 - 128 gsm
ADF Capacity:  200 sheets
Automatic Duplex Scanning:  Yes
Daily Duty Cycle:  up to 8,000 sheets / day
Multi-feed Detection:  Ultrasonic Sensor
Connectivity
Standard:
USB 2.0
Network:
Ethernet (with optional Network Interface Panel)
Supported OS and Applications
Supported OS:
Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / 2008 / 2012 / 2016 / 2019
Mac OS X 10.6.8 or later
Bundled Applications:
Epson Scan 2, ISIS Driver (Web Download), Document Capture Pro (Win), Epson OCR Component, Epson PDF Extensions
Dimensions and Weight

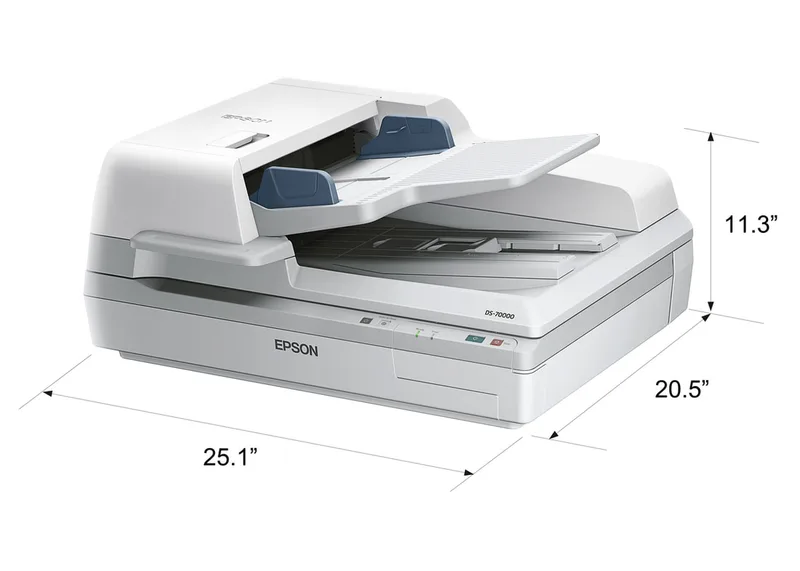

Dimensions (W x D x H):  640 x 552 x 289 mm
Weight:  26.9kg
Options
Options:
Network Interface Panel - B12B808411
Roller Assembly Kit:
B12B813501
