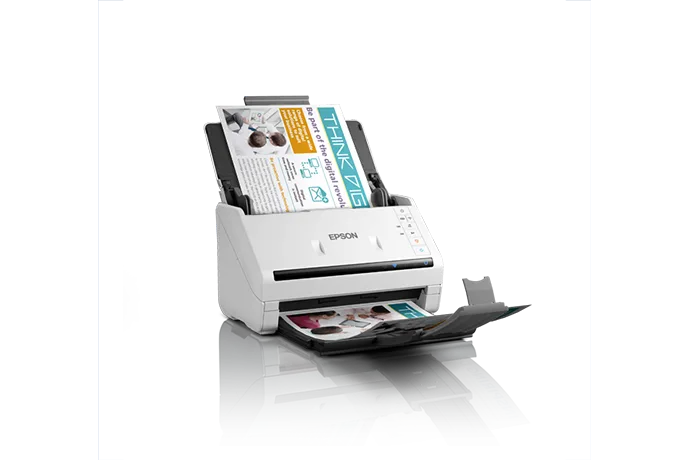

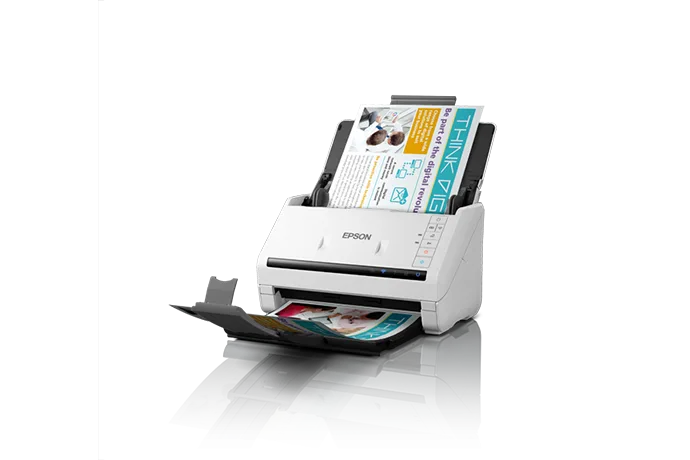

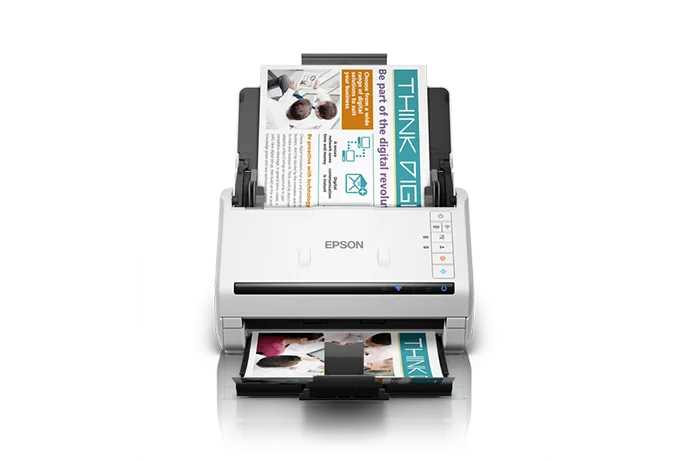

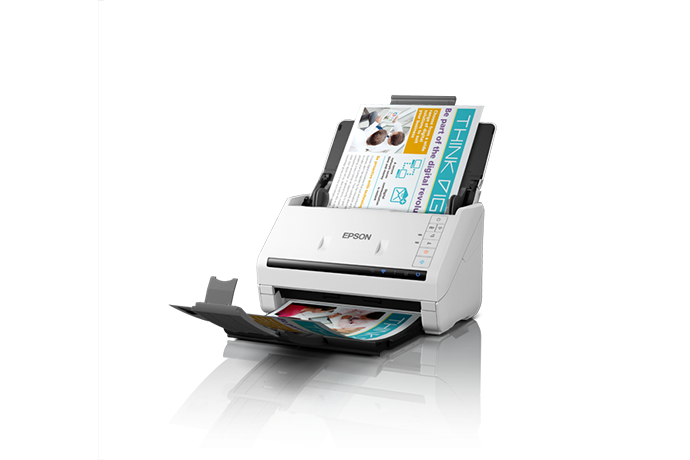

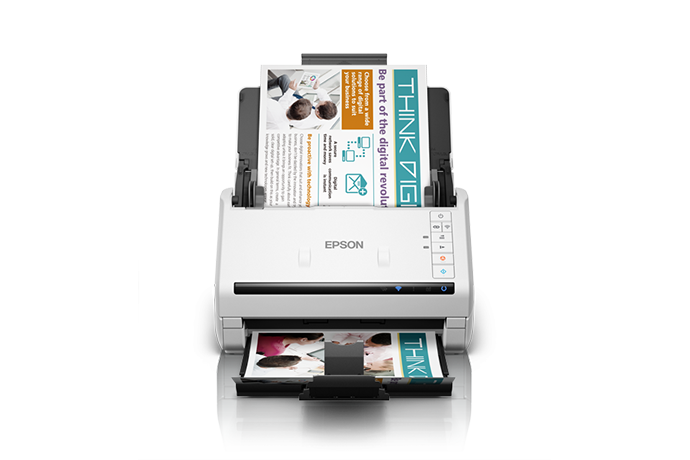

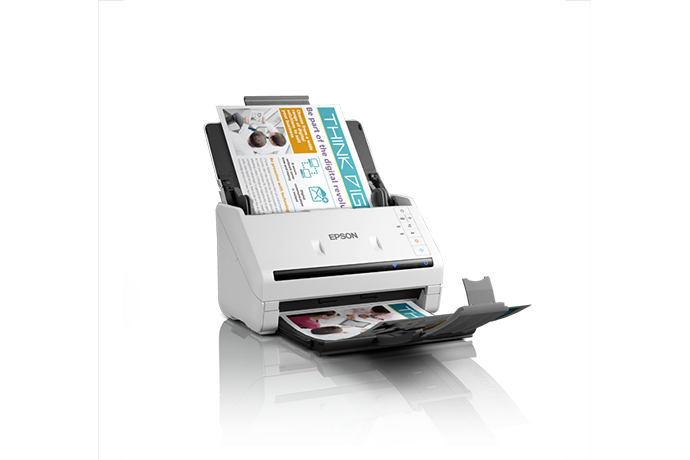

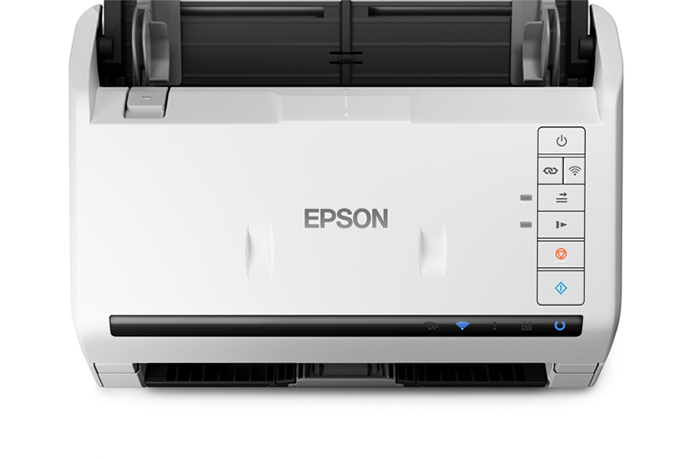

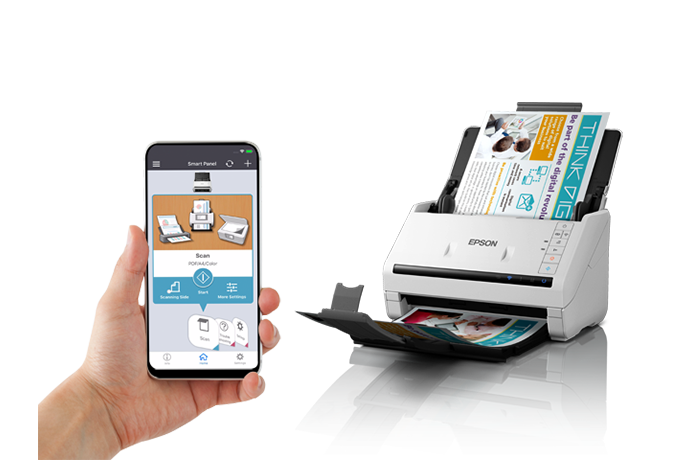

Epson DS-570WII Scanner

IMPROVE YOUR PRODUCTIVITY WITH OUR ALL-PURPOSE WORKFORCE SCANNERS

Focus on work that matters with the high-speed and all-purpose Epson WorkForce DS-570WII scanner. Designed to handle a wide variety of media, you will be able to scan media printed on different mediums from fragile paper documents to plastic cards. Share your documents wirelessly across a wireless network or directly with your devices via Wi-Fi.

Scanning speeds of up to 35 ppm / 70 ipm
Automatic Document Feeder (ADF) of up to 50 sheets
Daily duty cycle of 4,000 pages
One-pass duplex scanning
Wireless connectivity

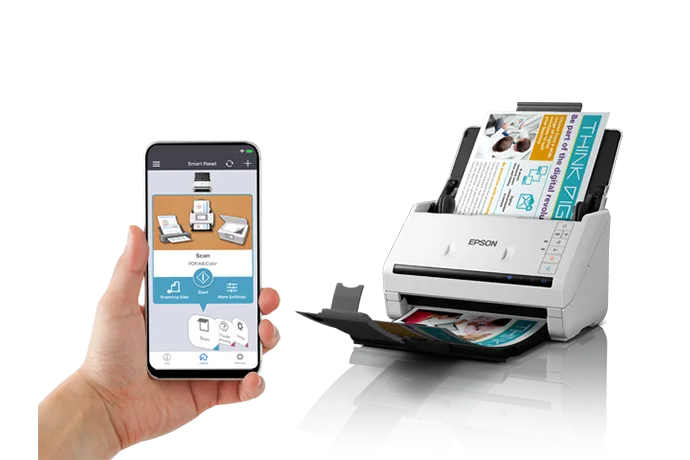

Compatible with Epson Smart Panel app
Paper protection function and image sensor glass dirt detection

Specifications
Brochure
Video

Scanning	Scanner Type: A4 sheet-fed, one-pass duplex colour scanner Sensor Type: Colour Contact Image Sensor Scanning Method: Fixed carriage and moving document Light Source: RGB LED Optical Resolution: 600 x 600 dpi Output Resolution: 50 - 1,200 dpi (1 dpi increments) Bit Depth: Each colour (RGB): 10 bit input / 8 bit output Min Document Size: 50.8 x 50.8 mm Max Document Size: 215.9 x 6096 mm Supported Paper Weight: 27 - 413 g/m2 (A8 or less 127 - 413 g/m2) Output File Formats: Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG Document Capture Pro (Win): JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX ADF Capacity: 50 sheets (80g/m2) Daily Scan Volume: Up to 4,000 pages / day Multi-feed Detection: Ultrasonic Sensor and Length Detection Interface: USB 3.2 Gen 1, Wi-Fi (802.11 b/g/n)
Scan Speed	Resolution (Colour/Greyscale/Mono): 200 dpi: 35 ppm / 70 ipm2 300 dpi: 35 ppm / 70 ipm2 600 dpi: 12 ppm / 24 ipm*2
Supported OS and Applications	Supported OS: Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016 Mac OS X 10.6.8 or later Scanner Driver Compatibility: TWAIN, SANE, WIA, ICA Bundled Applications: Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Windows), Document Capture (Mac), Epson Smart Panel (Apple App Store / Google Play Store)
Dimensions and Weight	Dimensions (W x D x H): 296 x 169 x 176 mm Weight: 3.7 kg
Options	Options: Carrier Sheet - B12B819051 Cleaning Kit - B12B819291 Roller Assembly Kit: 200,000 scans - B12B819671
Environmental Conditions	Temperature: Operating:5 - 35°C Storage: -25 - 60°C Humidity: Operating: 15 - 80% (No condensation) Storage: 15 - 85% (No condensation)
Power	Rated Voltage: AC 100 - 240 V Rated Frequency: 50 - 60 Hz Power Consumption: Operating: 11W / 12W (Wi-Fi on) Ready Mode: 5.4W / 5.5W (Wi-Fi on) Sleep Mode: 1.0W / 1.3W (Wi-Fi on) Power Off: 0.1W
