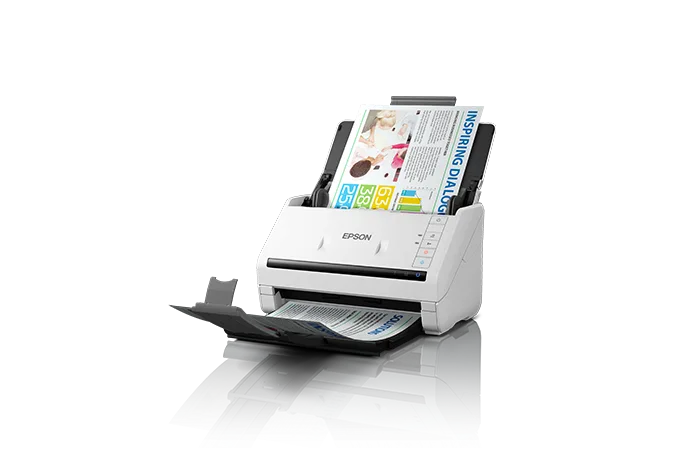

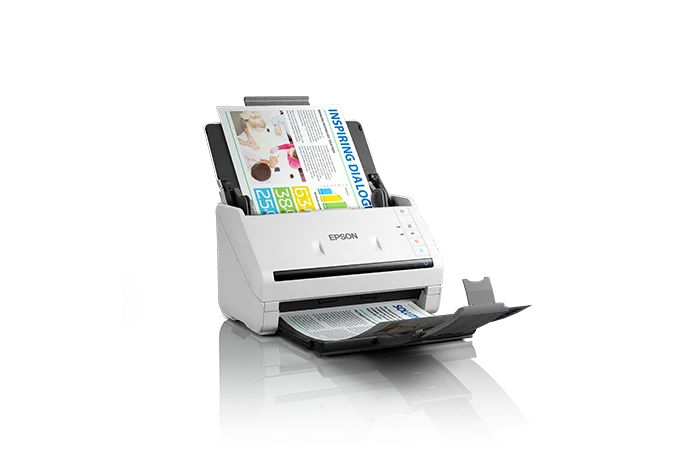

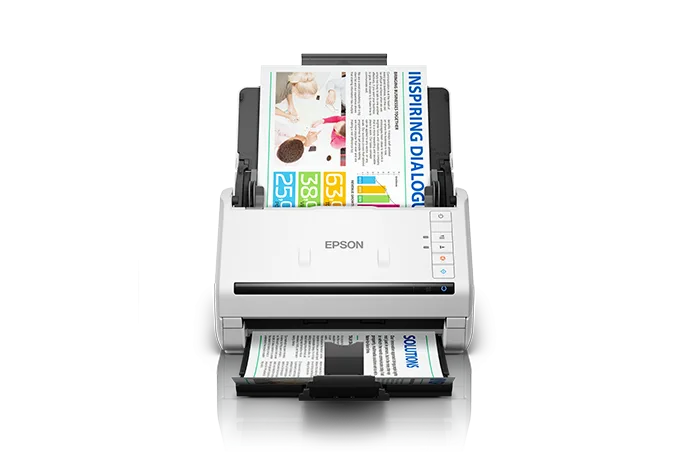

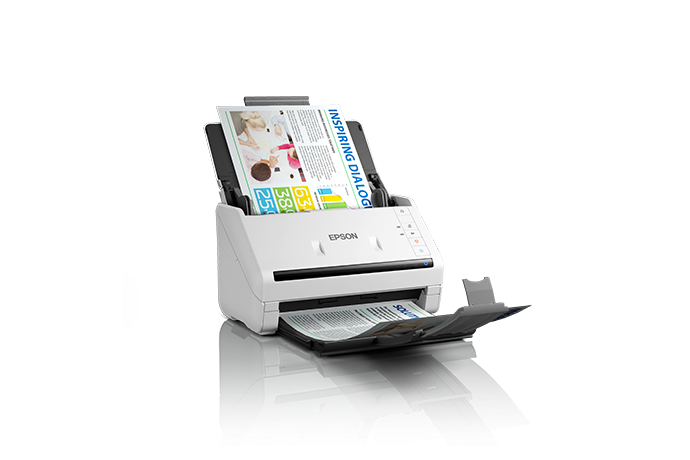

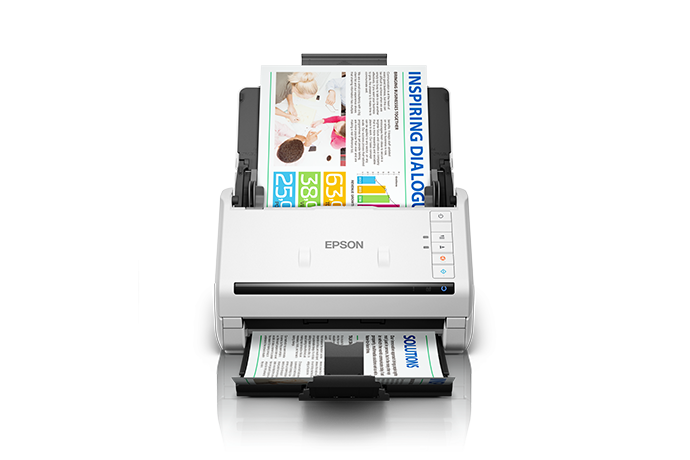

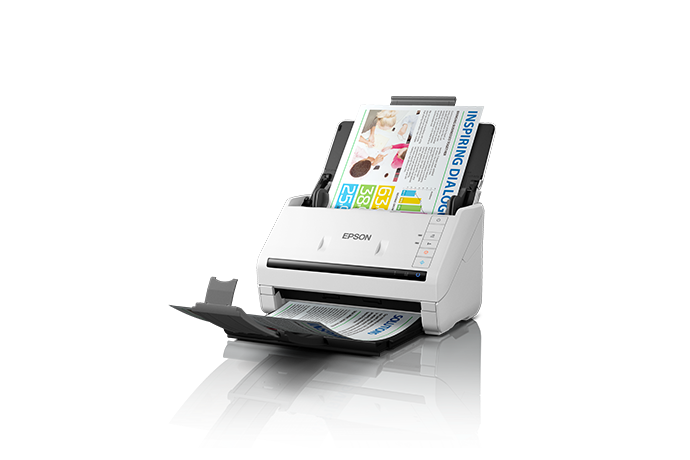

Epson DS-530II Scanner

IMPROVE YOUR PRODUCTIVITY WITH OUR ALL-PURPOSE WORKFORCE SCANNERS

Focus on work that matters with the high-speed and all-purpose Epson WorkForce DS-530II scanner. Designed to handle a wide variety of media, you will be able to scan media printed on different mediums from fragile paper documents to plastic cards, and even thick books with its flatbed option.

Scanning speed of up to 35 ppm / 70 ipm
Automatic Document Feeder (ADF) of up to 50 sheets
Daily duty cycle of 4,000 pages
One-pass duplex scanning
Paper protection function and image sensor glass dirt detection

Specifications
Brochure
Video

Scanning	Scanner Type: A4 sheet-fed, one-pass duplex colour scanner Sensor Type: Colour Contact Image Sensor Scanning Method: Fixed carriage and moving document Light Source: RGB LED Optical Resolution: 600 x 600 dpi Output Resolution: 50 - 1,200 dpi (1 dpi increments) Bit Depth: Each colour (RGB): 10 bit input / 8 bit output Min Document Size: 50.8 x 50.8 mm Max Document Size: 215.9 x 6096 mm Supported Paper Weight: 27 - 413 g/m2 (A8 or less 127 - 413 g/m2) Output File Formats: Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG Document Capture Pro (Win): JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX ADF Capacity: 50 sheets (80g/m2) Daily Scan Volume: Up to 4,000 pages / day Multi-feed Detection: Ultrasonic Sensor and Length Detection
Scan Speed	Resolution (Colour/Greyscale/Mono): 200 dpi: 35 ppm / 70 ipm2 300 dpi: 35 ppm / 70 ipm2 600 dpi: 12 ppm / 24 ipm*2
Supported OS and Applications	Supported OS: Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016 Mac OS X 10.6.8 or later Scanner Driver Compatibility: TWAIN, SANE, WIA, ICA, ISIS Bundled Applications: Epson Scan 2, ISIS Driver (Web Download), Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Win), Document Capture (Mac)
Dimensions and Weight	Dimensions (W x D x H): 296 x 169 x 176 mm Weight: 3.7 kg
Options	Options: Flatbed Dock - B12B819011 Roller Assembly Kit: 200,000 scans - B12B819671 Carrier Sheet - B12B819051 Cleaning Kit - B12B819291
Environmental Conditions	Temperature: Operating:5 - 35°C Storage: -25 - 60°C Humidity: Operating: 15 - 80% (No condensation) Storage: 15 - 85% (No condensation)
Power	Rated Voltage: AC 100 - 240 V Rated Frequency: 50 - 60 Hz Power Consumption: Operating: 11W Ready Mode: 5.4W Sleep Mode: 1.0W Power Off: 0.1W
