A3 Document Scanner

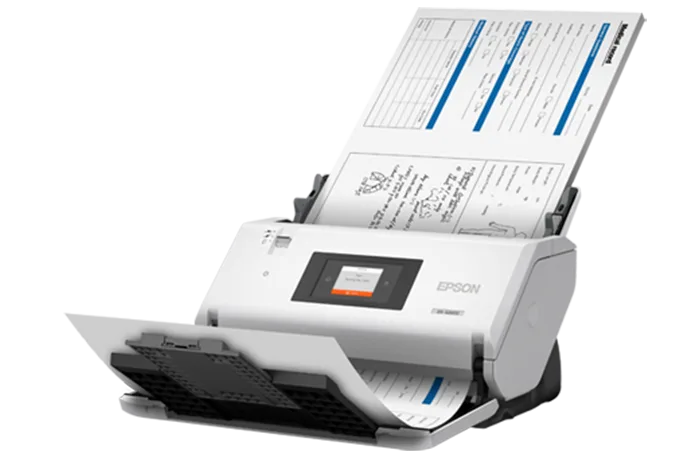

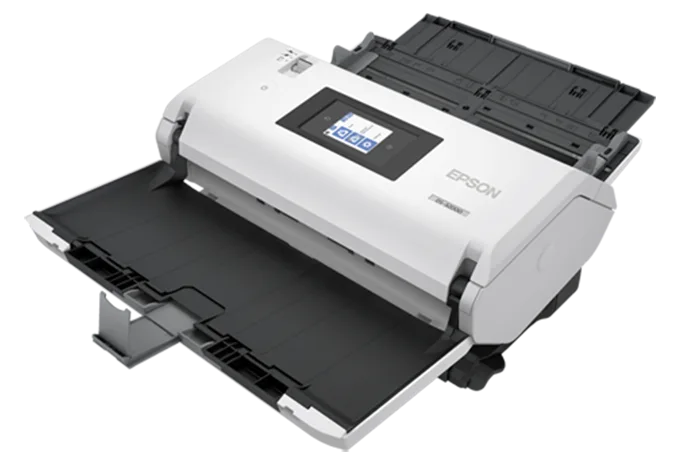

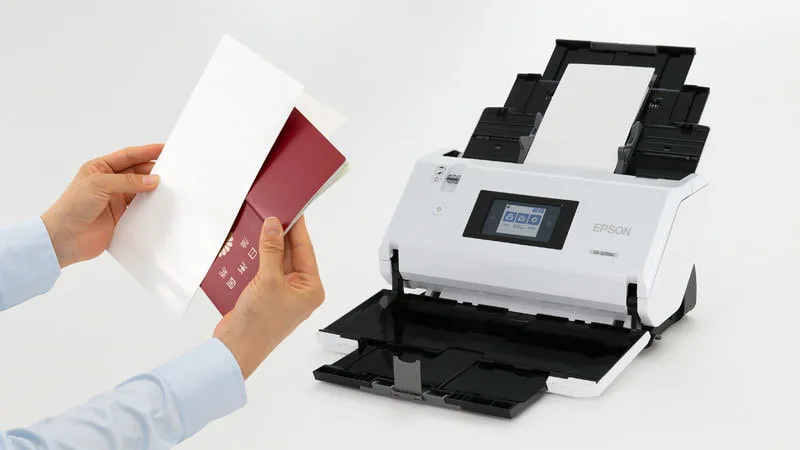

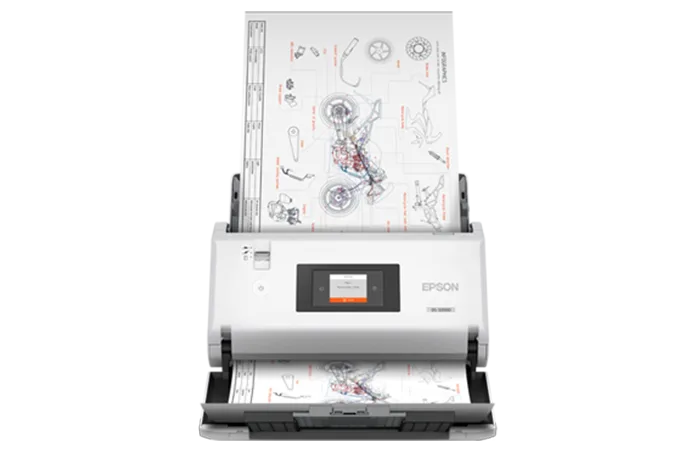

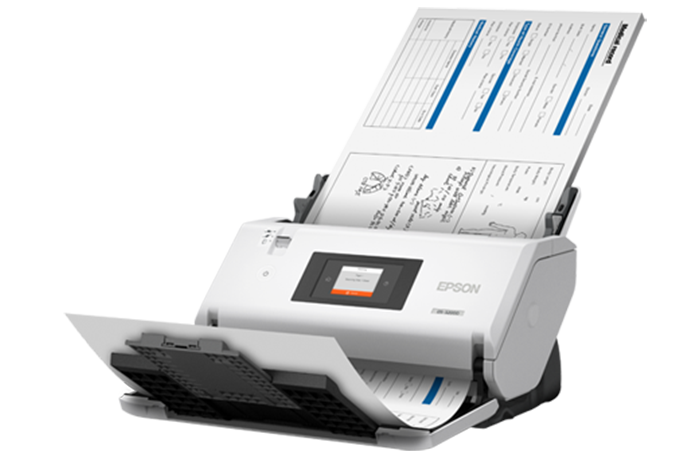

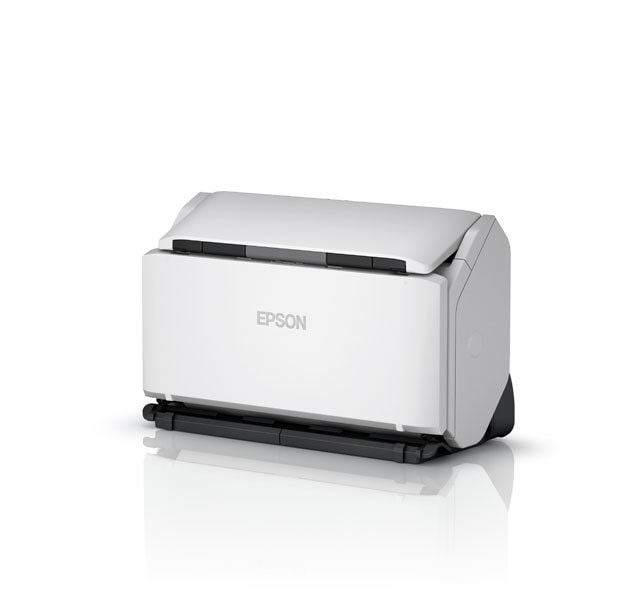

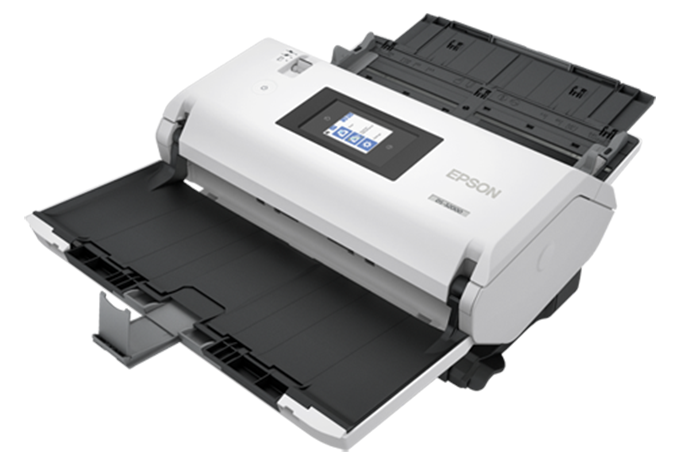

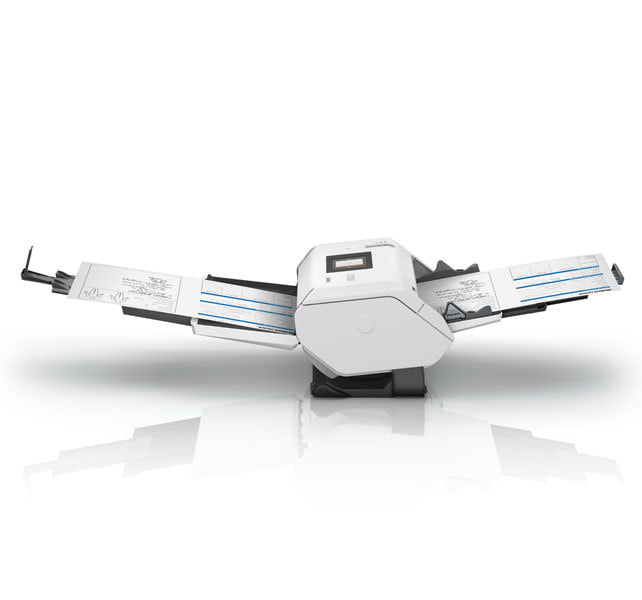

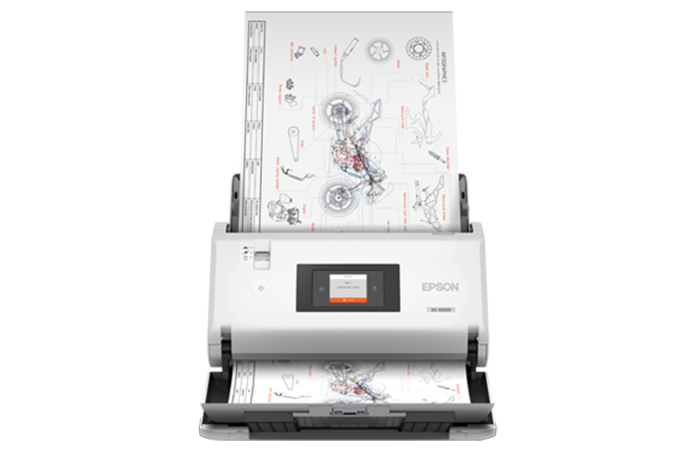

Epson DS-32000 Scanner

HIGH-SPEED A3 SCANNER FOR YOUR BUSINESS

At Epson, we focus on every detail of your business. Designed to support high-volume scanning environments, the WorkForce DS-32000 combines performance, speed and durability in a sleek, compact design. With a daily duty cycle of 40,000 pages and speeds of up to 180 ipm, this scanner deliver efficient document scanning with a diverse range of media handling at exceptional quality for higher productivity.

Scanning speeds of up to 90 ppm / 180 ipm
One-pass duplex scanning
Scan up to A3
2.7” colour LCD screen
Epson PaperCare: Advanced Paper Protection Function

Specifications
Brochure
Video

Scanning	Scanner Type: A3 sheet-fed, one-pass duplex colour scanner Sensor Type: Colour CIS Scanning Method: Fixed carriage and moving document Light Source: White LED Optical Resolution: 600 x 600 dpi Output Resolution: 50 - 1,200 dpi (1 dpi increments) Scanner Bit Depth (Colour): 30-bit input, 24-bit output Scanner Bit Depth (Grayscale): 10-bit input, 8-bit output Scanner Bit Depth (Black & White): 10-bit input, 1-bit output
Scan Speed	ADF Monochrome (Simplex / Duplex): 200 dpi: 90 ppm / 180 ipm 300 dpi: 90 ppm / 180 ipm 600 dpi: 26 ppm / 52 ipm ADF Colour (Simplex / Duplex): 200 dpi: 90 ppm / 180 ipm 300 dpi: 90 ppm / 180 ipm 600 dpi: 26 ppm / 52 ipm
ADF Specifications	Min Document Size: 50.8 x 69mm Max Document Size: 304.8 x 5588mm Support Paper Thickness: 20 - 413 gsm ADF Capacity: A4: 120 sheets, A3: 60 sheets Delicate Feed Mode: 20 sheets (A4), 10 sheets (A3) Daily Duty Cycle: up to 40,000 pages / day Multi-feed Detection: Ultrasonic Sensor and Length Detection
Connectivity	Standard: USB 3.0
Supported OS and Applications	Supported OS: Windows Server 2003 / 2008 / 2012 / 2016 / 2019 Mac OS X 10.6.8 or later Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10 Scanner Driver Compatibility: TWAIN, ISIS, SANE, WIA, ICA Bundled Applications: Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Win / Mac) File Format: Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG Document Capture Pro (Win): JPEG, JPEG2000, BMP, PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX
Dimensions and Weight	Dimensions (W x D x H): 371 x 167 x 245mm Weight: 6.9kg
Options	Options: Carrier Sheet - B12B819051 Passport Carrier Sheet - B12B819651 Cleaning Kit - B12B819291
Consumables	Consumables: Pickup Roller (300,000 scans): B12B819631 Separation Roller (300,000 scans): B12B819611
Control Panel	LCD Screen: 2.7" Colour LCD Screen
Environmental Conditions	Temperature: Operating: 5 to 35°C Storage: -25 to 60°C Humidity: Operating: 15 to 80% (No condensation) Storage: 15 to 85% (No condensation)
Power	Rated Voltage: AC 100-240V Rated Frequency: 50 - 60 Hz Power Consumption: Operating: 20W Ready Mode: 9.5W Sleep Mode: 1.4W Power Off: 0.1W
