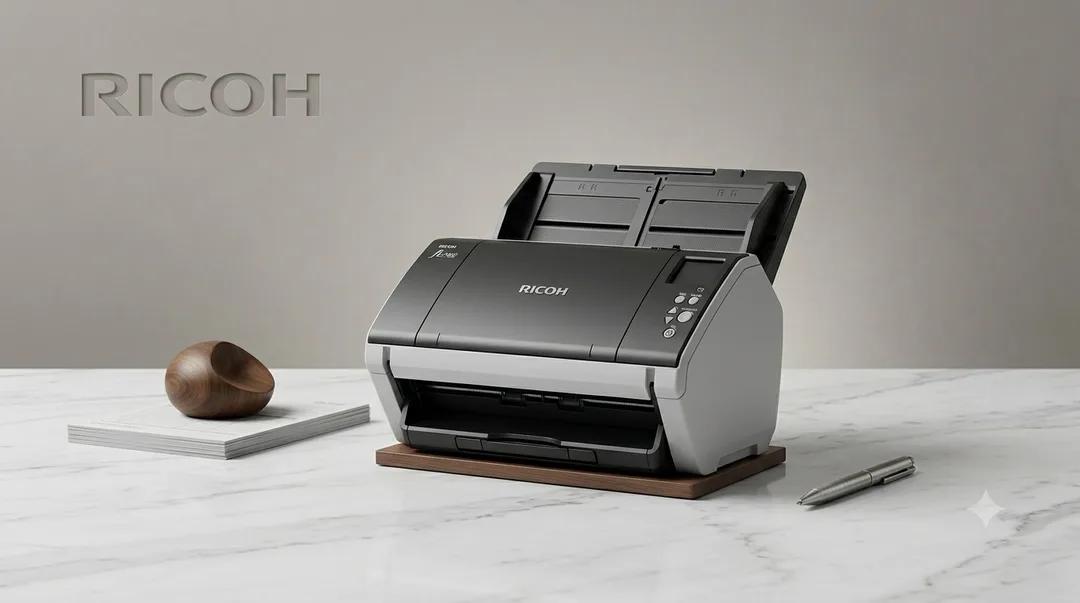

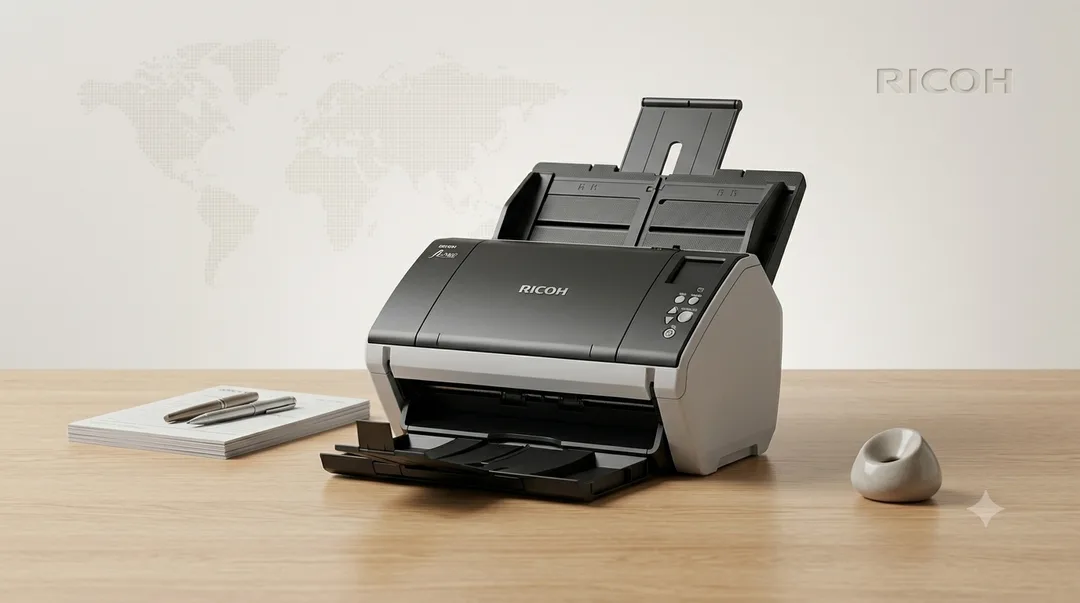

Ricoh fi-7460 Wide Format Scanner
The front-office wide format scanner. Designed for heavy workloads and engineered to last, offering wide-format scanning in a compact, best-in-class space.
Advanced Technical Features
Wide Format & Speed
- Fast scanning at 60 ppm / 120 ipm (A4 Landscape).
- Large 100-sheet ADF capacity for high-volume tasks.
- Supports A3 size and folded A2/A1 documents.
Image Quality
- Dual CCD cameras capture with extreme clarity.
- Accurate focus and precise color reproduction.
- Crisp 600 optical DPI resolution.
Reliable Paper Feeding
- Advanced Skew Reducer prevents misaligned pages.
- iSOP Sound & Lag detection prevents document damage.
- Brake Rollers for excellent mixed-batch separation.
Effortless Workflow
- Automatic Stacker aligns documents neatly upon exit.
- Manual Feed Mode easily handles thick or layered cards.
- Seamless PaperStream IP, Capture, and ClickScan software.
Ideal Applications
Ricoh fi-7460 Wide Format Scanner
The fi-7460 is an ultra-compact A3 desktop scanner built for heavy distributed front-office and corporate environments. It reliably captures diverse mixed-batch materials—from small sticky notes and plastic cards up to large engineering diagrams—at production-level speeds.
- Wide-Format Feeding: Captures A3 documents, Double Letter sizes, and folded A2/A1 media seamlessly.
- Production-Class Speed: Scans at up to 60 ppm / 120 ipm in A4 landscape mode.
- Dual CCD Optics: Premium lens architecture ensures incredible text clarity and OCR precision.
- Intelligent Paper Protection (iSOP): Sound sensors actively detect potential jams to safe-keep original files.
- Advanced Separation Technology: Brake rollers and Skew Reducers eliminate multi-feed scanning anomalies.
Technical Specifications
1. Scan Speed & Optical Core
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex Scanning |
|---|---|
| Scanning Speed (A4 Landscape) (Color / Grayscale / Monochrome) | Simplex: 60 ppm (200/300 dpi) Duplex: 120 ipm (200/300 dpi) |
| Scanning Speed (A4 Portrait) (Color / Grayscale / Monochrome) | Simplex: 45 ppm (200/300 dpi) Duplex: 90 ipm (200/300 dpi) |
| Image Sensor Type | Color CCD x 2 (Front x 1, Back x 1) |
| Light Source | White LED Array x 4 (Front x 2, Back x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (via driver interpolation) |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Background Colors | White / Black (Selectable) |
| Expected Daily Volume | 9,000 sheets / day |
2. Document & Media Handling
| ADF Chute Capacity | 100 sheets (A4 80 g/m² or Letter 20 lb) |
|---|---|
| Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in.) (A3 size) |
| Minimum Document Size | 50.8 x 69 mm (2 x 2.7 in.) (A8 size) |
| Long Paper Scanning | Up to 5,588 mm (220 in.) |
| Paper Weight (Thickness) | 27 to 413 g/m² (7.2 to 110 lb) *Supports thicknesses up to 128 to 209 g/m² for A8 size |
| Plastic Card Support | Up to 1.4 mm or less (Supports ISO7810 compliant cards, embossed type supported) |
| Envelopes & Mixed Batches | Supported via manual feeding mode and independent side guide controls |
3. Interface & Intelligence Features
| Interface Connectivity | USB 3.0 / USB 2.0 / USB 1.1 (Type-B) |
|---|---|
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection |
| Paper Protection Technology | Lag Detection, Sound Detection (iSOP - Intelligent Sonic Paper Protection) |
| Advanced Feeding Controls | Skew Reducer mechanism, Independent Pick Rollers |
| Control Panel | Operational LCD panel with status display and navigation buttons |
4. Power, Physical & Environmental Data
| Power Requirements | AC 100 V to 240 V, 50/60 Hz |
|---|---|
| Power Consumption | Operating Mode: 36 W or less Sleep Mode: 1.4 W or less Auto Standby (Off) Mode: 0.3 W or less |
| Operating Environment | Temperature: 5°C to 35°C (41°F to 95°F) Relative Humidity: 20% to 80% (Non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
| Dimensions (W x D x H) | 380 x 209 x 168 mm (15.0 x 8.2 x 6.6 in.) |
| Weight | 7.6 kg (16.8 lb) |
5. Software Suite & Image Optimization
| Supported Operating Systems | Windows® 11, Windows® 10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS, Linux |
|---|---|
| Bundled Software & Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, Scanner Central Admin, 2D Barcode for PaperStream |
| Advanced Image Core Functions | Multi-image output, Auto color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), Edge filler, De-Skew, Hole punch removal, Index tab cropping, Split image, Vertical streaks reduction |
Product Video Showcase
Lihat kehebatan Ricoh fi-7460 dalam mengendalikan tugasan harian anda yang melibatkan pelbagai saiz dokumen dari A8 hingga A3 secara lancar.
[Video Showcase Placeholder]
Brochure & Contact
Muat turun brosur rasmi untuk senarai spesifikasi penuh siri fi-7400 atau hubungi pasukan pakar kami untuk sebut harga.
Download Datasheet (PDF) WhatsApp Us Now
