Ricoh fi-8290 Scanner
Exceptional performance featuring both flatbed and ADF capabilities. Rapid scanning speeds up to 90 ppm/180 ipm, engineered for high-volume workloads and maximum productivity in the modern office.
Scan Speed
90 ppm / 180 ipm
ADF Capacity
100 Sheets
Daily Volume
13,000 Sheets
Connectivity
USB 3.2 & Ethernet
Why Choose the fi-8290
- Versatile Scanning: Combined Flatbed and ADF for thick documents, passports, and books.
- High Image Quality: "Clear Image Capture" technology for outstanding OCR accuracy.
- High Reliability: Designed for daily workloads of up to 13,000 sheets.
- Automatic Separation Control: Prevents paper jams even with mixed document types.
Technical Specifications
- Type: ADF / Manual Feed / Flatbed
- Optical Resolution: 600 dpi
- Document Size: Max 215.9 x 355.6 mm
- Paper Weight: 20 to 465 g/m²
- Dimensions: 300 x 577 x 234 mm
Ricoh fi-8290 Flatbed Document Scanner

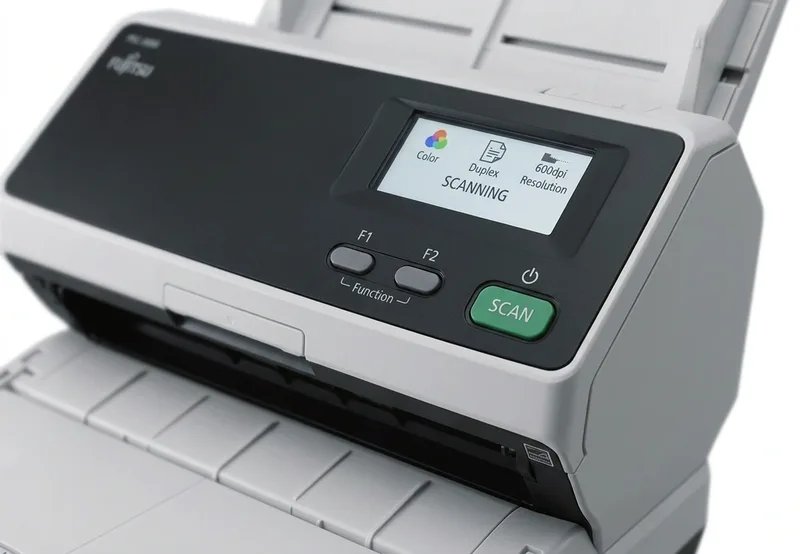

The Ricoh fi-8290 is a high-performance production scanner that combines a built-in flatbed with an Automatic Document Feeder (ADF). It is engineered for heavy-duty daily tasks, offering exceptional speed and reliability for demanding office environments.
- Dual-Scanning Capability: Features an integrated flatbed for fragile, thick, or bound documents, alongside a fast 100-sheet ADF for high-volume batch scanning.
- High-Speed Throughput: Scans at impressive speeds of up to 90 ppm (simplex) / 180 ipm (duplex) at both 200 and 300 dpi.
- PFU Clear Image Capture: Advanced proprietary optical technology ensures crisp, high-definition images while minimizing power consumption and reducing data sizes.

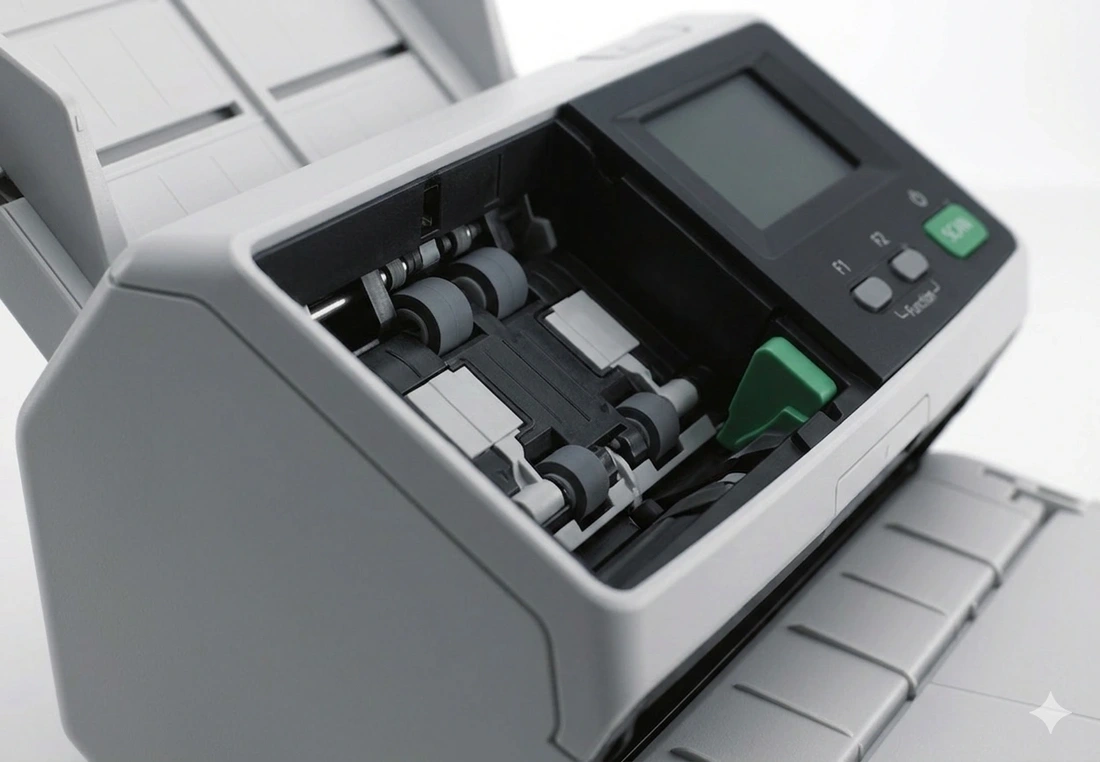

- State-of-the-Art Feeding Technology: Equipped with "Automatic Separation Control" which dynamically adjusts torque based on the paper pile size, preventing multi-feeds and interruptions.
- Evolved Paper Protection: Real-time "Image Monitoring" and acoustic sound sensors safeguard documents by halting operations instantly when paper structural irregularities are detected.
- Booklet & Passport Ready: Manual Feed Mode allows hassle-free scanning of passports, booklets, and thick booklets up to 7 mm thickness without requiring a plastic carrier sheet.
Technical Specifications
1. Basic Information & Performance
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex |
|---|---|
| Scanning Speed (A4 Portrait, Color/Grayscale/Mono) | ADF Simplex: 90 ppm (200/300 dpi) ADF Duplex: 180 ipm (200/300 dpi) |
| Flatbed Scanning Speed | 1.7 seconds (200/300 dpi) |
| Image Sensor Type | ADF: CIS x 2 (front x 1, back x 1) Flatbed: Color CCD x 1 |
| Light Source | ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (via driver interpolation) |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Expected Daily Volume | 13,000 sheets |
2. Document Specifications
| ADF Capacity | 100 sheets (A4 80 g/m² or Letter 20 lb) |
|---|---|
| Maximum Document Size (ADF) | 215.9 x 355.6 mm (8.5 x 14 in.) |
| Minimum Document Size (ADF) | 48 x 50 mm (1.9 x 2 in.) |
| Flatbed Maximum Size | 215.9 x 297 mm (8.5 x 11.7 in.) |
| Long Paper Scanning | Up to 6,096 mm (240 in.) |
| Paper Weight (Thickness) | 20 to 465 g/m² (5.3 to 124 lb) |
| Plastic Card Support | 1.4 mm or less (Supports embossed cards, ISO7810 compliant) |
| Booklet / Passport Support | Up to 7 mm (0.276 in.) via Front/Manual Feed Path |
3. Connectivity & Hardware Features

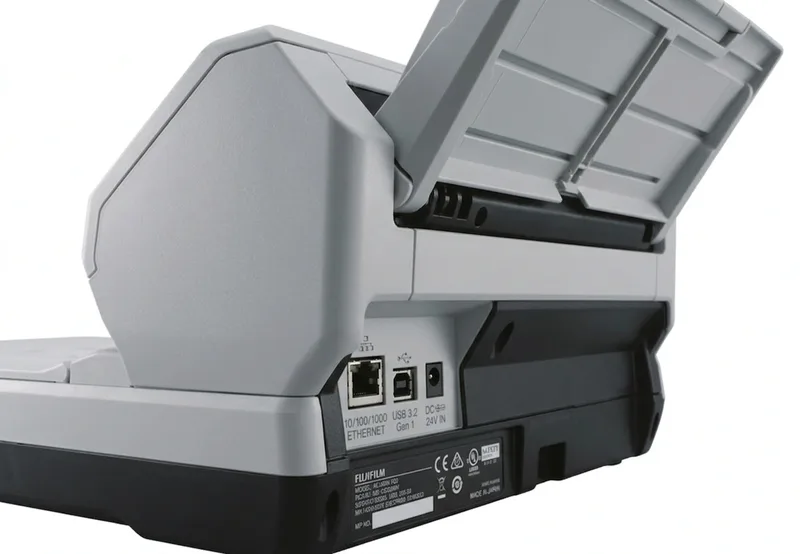

| Interface Connectivity | USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1 (Type-B) Ethernet: 10BASE-T/100BASE-TX/1000BASE-T (RJ-45) |
|---|---|
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection |
| Paper Protection Technology | iOPS (Sound Detection), Image Monitoring (Skew control) |
| Internal Video Processing Engine | GI Processor |
4. Electrical & Environmental
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
|---|---|
| Power Consumption | Operating Mode: 30 W or less (17 W in Eco mode) Sleep Mode: 2.0 W or less (LAN) / 1.4 W or less (USB) Auto-Standby (Off) Mode: 0.2 W or less |
| Operating Environment | Temperature: 5°C to 35°C (41°F to 95°F) Relative Humidity: 20% to 80% (Non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
5. Physical Dimensions & Software
| Dimensions (W x D x H) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) |
|---|---|
| Weight | 8.8 kg (19.4 lb) |
| Supported Operating Systems | Windows® 11, Windows® 10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012 |
| Bundled Software Suite | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, Scanner Central Admin, ABBYY™ FineReader™ for ScanSnap™ |
| Image Processing Functions | Multi image output, Auto color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-screen, Emphasis, Dropout color, SRGB output, Hole punch removal, Index tab cropping, Split image, Asymmetric cropping, Edge correction, Vertical streaks reduction, Cropping, Static threshold |
Product Overview Video
Watch the capabilities of the Ricoh fi-8290 production scanner in handling large, complex office workloads and continuous document workflows.
Video Placeholder
(Gantikan lapisan teks ini dengan kod Embed / Iframe YouTube anda)
(Gantikan lapisan teks ini dengan kod Embed / Iframe YouTube anda)
Product Brochure
Download the official brochure for the Ricoh fi-8290 to explore the full range of features, software integration, and detailed technical documentation.
Download Product Datasheet (PDF) View Official Product HubKey Highlights
- Dual-Interface: ADF (100 sheets) + Flatbed integrated.
- High Speed: 90 ppm / 180 ipm scanning performance.
- Robust Volume: Up to 13,000 sheets daily cycle.
- Advanced Feeding: Automatic Separation Control technology.
Application Areas
- Professional: Law firms & accounting offices.
- Healthcare: Patient records & ID cards.
- Finance: Contracts & batch financial documents.
- Government: High-volume record archiving.
Order Workflow
- Inquiry: WhatsApp 016-9225928.
- Analysis: Requirement-based consultation.
- Proposal: Professional quotation.
- Deployment: Expert onsite installation & tuning.
The Scanext Advantage
- Heritage: Trusted experts since 1993.
- Support: Dedicated Kuantan technical team.
- Inventory: Ready stock in our warehouse.
- Service: Reliable onsite maintenance support.
Frequently Asked Questions
Q: Why choose the fi-8290 over other models?
The fi-8290 offers superior versatility by combining a fast ADF with a flatbed, allowing you to scan passports, books, and fragile documents easily.
The fi-8290 offers superior versatility by combining a fast ADF with a flatbed, allowing you to scan passports, books, and fragile documents easily.
Q: Is this model suitable for high-volume daily scanning?
Yes, it is built for production environments with a daily duty cycle of 13,000 sheets.
Yes, it is built for production environments with a daily duty cycle of 13,000 sheets.
Q: What is the benefit of the Automatic Separation Control?
It automatically adjusts the torque to handle different paper thicknesses and mixed batches without causing jams.
It automatically adjusts the torque to handle different paper thicknesses and mixed batches without causing jams.
Q: Does Scanext provide onsite service in Kuantan?
Absolutely. Our Kuantan-based technicians provide fast-response onsite support and installation.
Absolutely. Our Kuantan-based technicians provide fast-response onsite support and installation.
